Auto Parts Tokyo

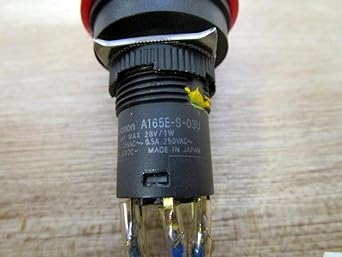

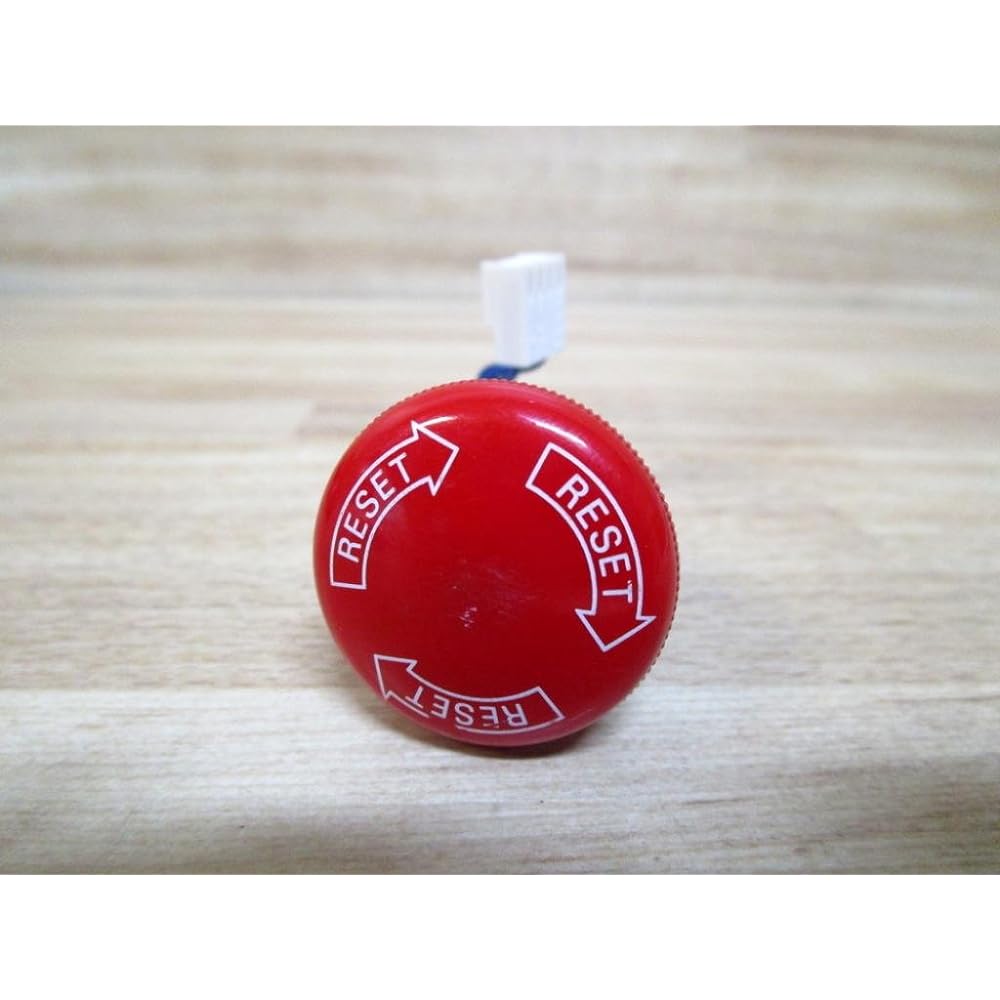

omron emergency stop push button switch (φ16) (A165E-S-03U)
omron emergency stop push button switch (φ16) (A165E-S-03U)
Regular price
$45.00 USD
Regular price
Sale price
$45.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Protection structure: IP65 oil resistant, non-illuminated Contact configuration: 3NC(3) Compliant with EN 60947-5-5. It has two features: a separate structure for the switch section that increases wiring efficiency, and an integrated structure that requires special tools to remove it.
• Direct opening mechanism cuts off the circuit in the event of an abnormality such as contact welding. • Complies with EN 60947-5-5. • Comes with a safety lock mechanism to prevent incorrect operation. • A two-sided design with a separate structure for the switch that improves wiring efficiency and an integrated structure that requires special tools to remove. • A 3-contact integrated block type is also available (A165E-U).
Manufacturer: Omron
Part number: A165E-S-03U
Product weight: 15 g
Product size: 5.08 x 5.08 x 10.16 cm; 15 g
Style: Contact configuration: 3NC (3)
Switch style: Button switch
Battery usage: No
Product dimensions (Length x Width x Height): 5.1 x 5.1 x 10.2cm
• Direct opening mechanism cuts off the circuit in the event of an abnormality such as contact welding. • Complies with EN 60947-5-5. • Comes with a safety lock mechanism to prevent incorrect operation. • A two-sided design with a separate structure for the switch that improves wiring efficiency and an integrated structure that requires special tools to remove. • A 3-contact integrated block type is also available (A165E-U).
Manufacturer: Omron
Part number: A165E-S-03U
Product weight: 15 g
Product size: 5.08 x 5.08 x 10.16 cm; 15 g
Style: Contact configuration: 3NC (3)
Switch style: Button switch
Battery usage: No
Product dimensions (Length x Width x Height): 5.1 x 5.1 x 10.2cm
