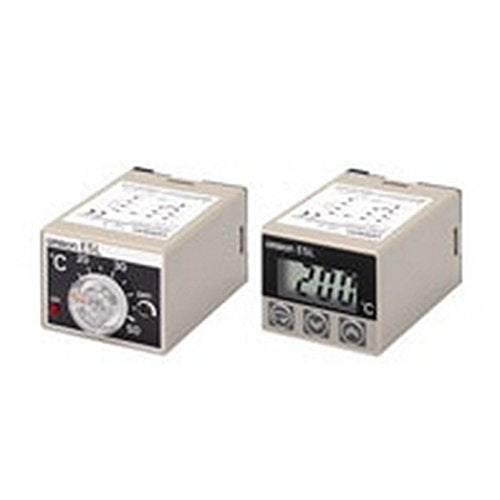

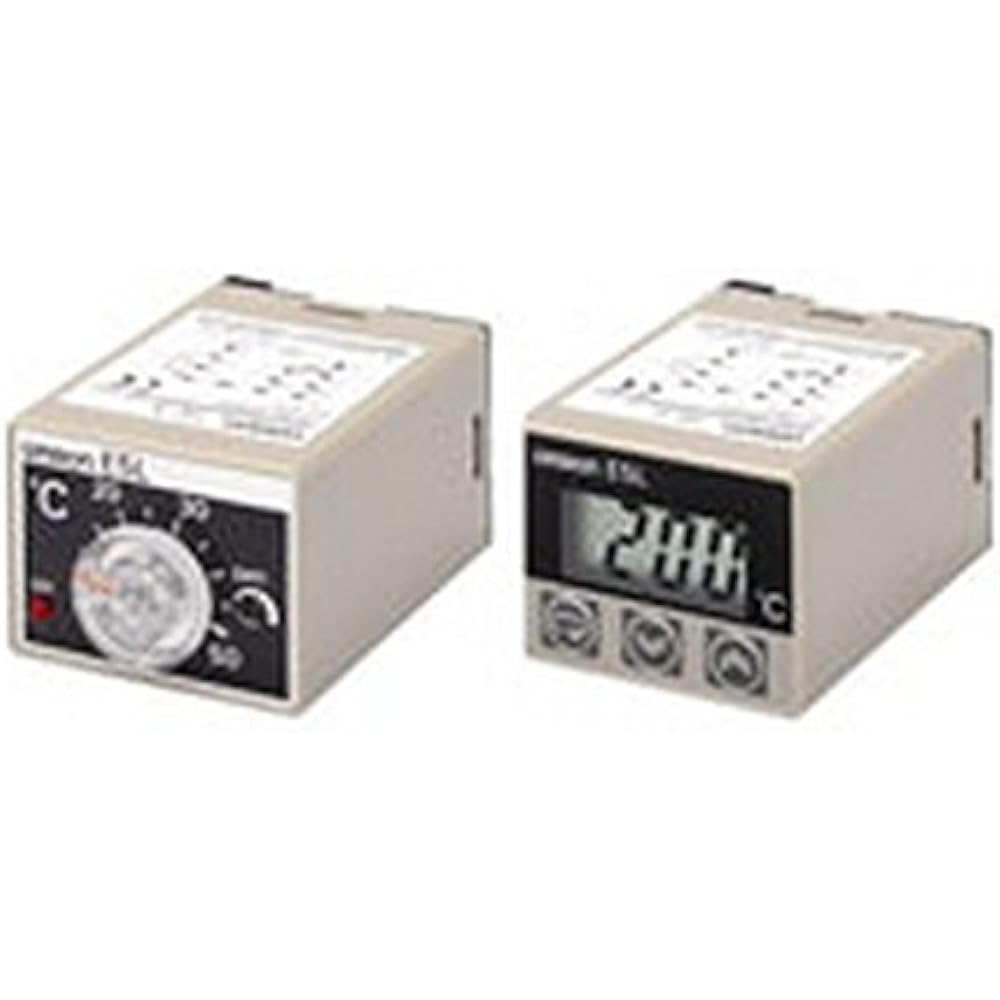

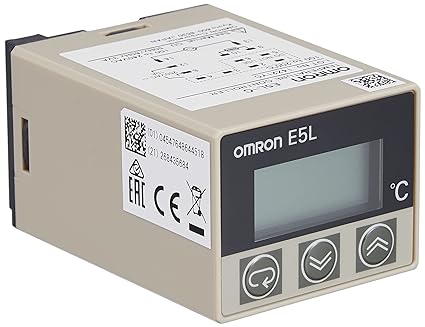

OMRON Electronic Thermo E5L-A/C Type E5L-A0-100

Series: E5L-A/C Features: Electronic thermostat Size: 45 x 35 mm Type: Plug-in type Control method: ON/OFF operation Power supply voltage: AC100-240V (50/60Hz) Allowable voltage fluctuation range: Power supply voltage 85~110%・Power consumption: Approximately 3VA Control method: ON/OFF operation・Control output: Contact 1cAC250V10Acosφ=1 (resistive load) Insulation resistance: 100MΩ or more (at 500V DC) Vibration (malfunction): Frequency 10~55Hz Double amplitude 0.5mm 10min each in X, Y, and Z directions Protection structure: Front: IP40, Terminal: IP00 Increase display number < br>
High-capacity switching of AC250V 10A is possible, so you can directly switch and close the load. Sensors are included for immediate use.Finger protection type (PTF14A-E) and non-protection type (PTF14A) are newly added digital sockets. Ideal for simple control of built-in devices, with even simpler and more reliable settings.


Manufacturer: OMRON
Part number: E5L-A0-100
Product weight: 100 g
Package size: 12.6 x 6.6 x 6.4 cm; 100 g
Style: ‎E5L-A/C type
Pattern: ‎E5L-A0-100
Battery usage: ‎No
