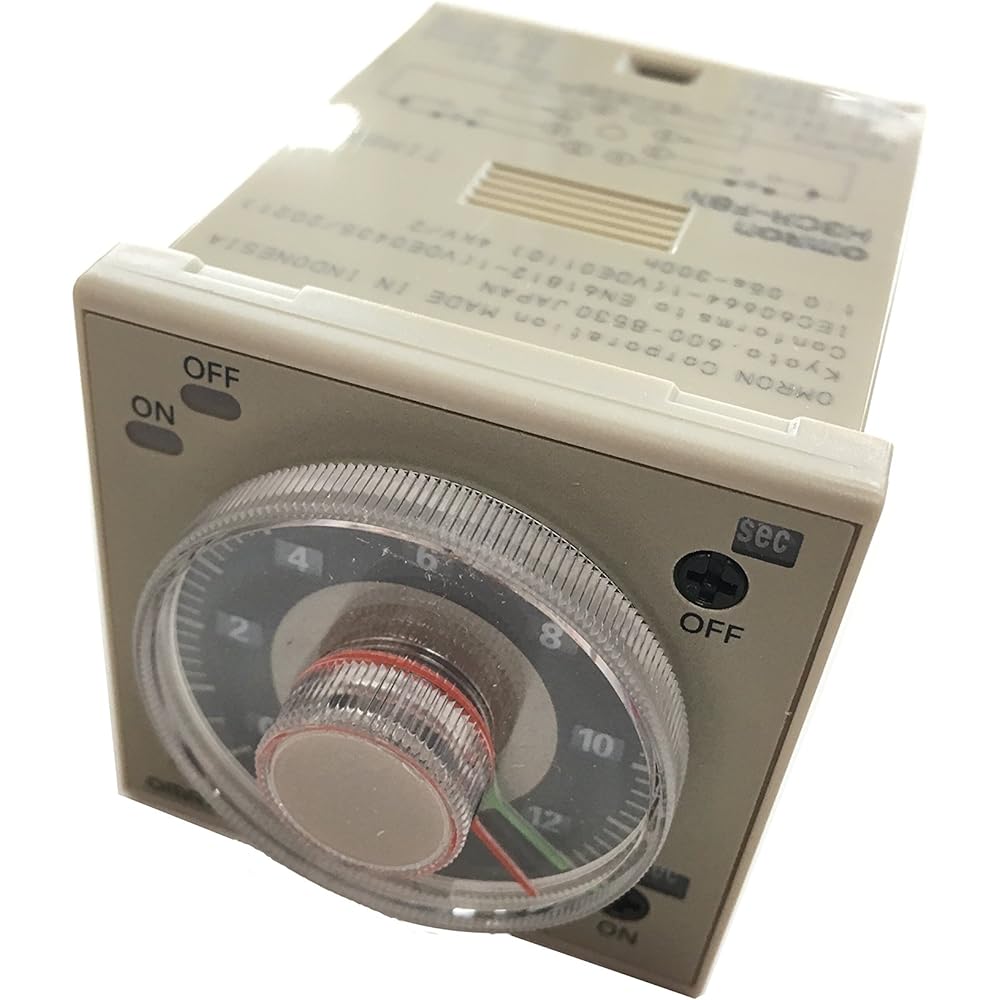

OMRON Solid State Timer H3CR-F/-G/-H Type H3CR-F8NAC100-240/DC100-125
OMRON Solid State Timer H3CR-F/-G/-H Type H3CR-F8NAC100-240/DC100-125
Regular price
$104.00 USD
Regular price
Sale price
$104.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Series: H3CR-F/-G/-H Features: Solid-state timer Pin type: 8 pins Time specifications: 0.05s to 300h Format: H3CR-F8N Power supply voltage: AC100 to 240V 50/60Hz/DC100 to 125V・AC24~48V50/60Hz/DC12~48V Allowable voltage fluctuation range: 85~110% of power supply voltage (90~110% for DC12V) ・Power reset: Minimum power open time 0.1s Power consumption: AC100~240V: Approx. 10VA/ 2.1W (at 240V AC) 24V AC/DC: Approx. 2VA/1.7W (at 24V AC), approximately 1.0W (at 24V DC) - Release voltage: 10% or less of power supply voltage
Operating temperature range: -10~+55℃ (but not freezing) Storage temperature range: -25~+65℃ (but not freezing) Ambient operating humidity: 35~85% Display more items
3CR-F Twin timer time unit can be set individually for on time and off time, so two types of operation modes are available: long time on or off, short time off or on, flicker on start and flicker off start. 24 time ranges can be selected from voltage free (24 to 48 VAC/12 to 48 VDC), high voltage free (100 to 240 VAC/100 to 10.05 seconds to 300 hours), instantaneous output is possible with 0 setting. Move the scale toward 0. Since the output is instantaneous when turned fully, you can check the sequence operation, etc. with UL, CSA, NK, LR, CCC certification, and EN61812-1 compliance. CE mark compatible 3CR-G star delta timer for 0.5 seconds to 120 seconds with one star delta timer. 4 time ranges can be selected between UL, CSA, NK, and LR certification, EN61812-1 compliant. CE mark, CCC compatible *H3CR-G8L-30/-G8EL-31 have not obtained safety standards. 3CR-H Power Off Delay Timer 4 time ranges can be selected from 0.05 seconds to 12 seconds for the S series and 0.05 minutes to 12 minutes for the M series. UL, CSA, NK, LR certified, EN61812-1 compliant. CE mark, CCC compatible twin timer, star delta timer, power off delay timer series.
Manufacturer: OMRON
Part number: H3CR-F8N
Product weight: 100 g
Product size: 18 x 16 x 21 cm; 100 g
Color: White, black, red
Battery usage: No
Product dimensions (length) x width x height): 18 x 16 x 21 cm
3CR-F Twin timer time unit can be set individually for on time and off time, so two types of operation modes are available: long time on or off, short time off or on, flicker on start and flicker off start. 24 time ranges can be selected from voltage free (24 to 48 VAC/12 to 48 VDC), high voltage free (100 to 240 VAC/100 to 10.05 seconds to 300 hours), instantaneous output is possible with 0 setting. Move the scale toward 0. Since the output is instantaneous when turned fully, you can check the sequence operation, etc. with UL, CSA, NK, LR, CCC certification, and EN61812-1 compliance. CE mark compatible 3CR-G star delta timer for 0.5 seconds to 120 seconds with one star delta timer. 4 time ranges can be selected between UL, CSA, NK, and LR certification, EN61812-1 compliant. CE mark, CCC compatible *H3CR-G8L-30/-G8EL-31 have not obtained safety standards. 3CR-H Power Off Delay Timer 4 time ranges can be selected from 0.05 seconds to 12 seconds for the S series and 0.05 minutes to 12 minutes for the M series. UL, CSA, NK, LR certified, EN61812-1 compliant. CE mark, CCC compatible twin timer, star delta timer, power off delay timer series.
Manufacturer: OMRON
Part number: H3CR-F8N
Product weight: 100 g
Product size: 18 x 16 x 21 cm; 100 g
Color: White, black, red
Battery usage: No
Product dimensions (length) x width x height): 18 x 16 x 21 cm
