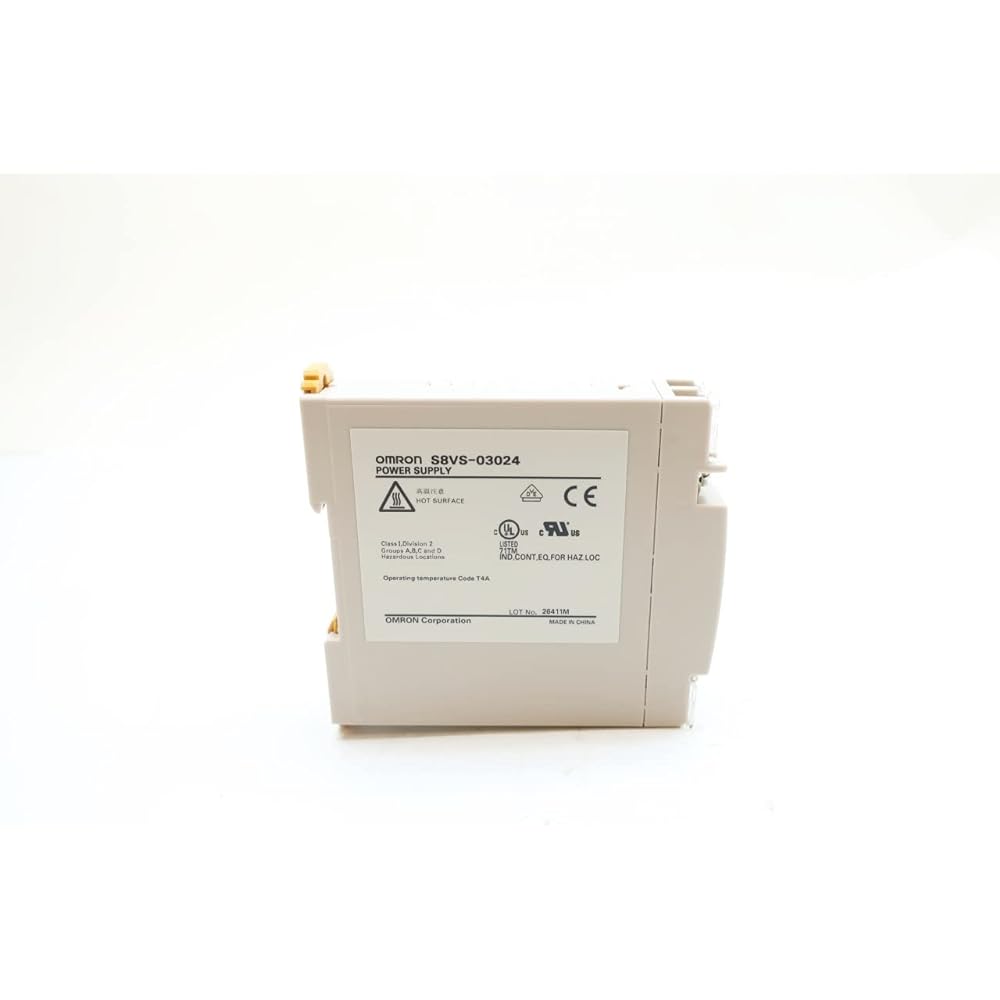

OMRON Switching Power Supply S8VS Type S8VS-03024
OMRON Switching Power Supply S8VS Type S8VS-03024
Regular price
$67.00 USD
Regular price
Sale price
$67.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Series: S8VS Features: Switching power supply (15/30/60/90/120/180/240/480W type) Capacity: 15W Input voltage: AC100~240V (Tolerance range: AC85~264V, DC80~370V) Output voltage :24V Voltage range: AC100 to 240V (tolerable range: AC85 to 264V) Frequency: 50/60Hz (47 to 63Hz) Power factor: 0.95 or more Harmonic current regulation: EN61000-3-2 compliant Voltage variable range: -10 ~+15%(at V.ADJ)
Input fluctuation: 0.5% or less (input AC85~264V at 100% load) / Overcurrent protection: 105~160% of rated output current, reverse L drooping type, automatic reset Mass: 1,700g or less Increase the number of displayed items
< br> A new series has been added to the 60/90/120/180/240/480W monitor type.The pull function contributes to equipment start-up.A series of UL Class 2 output compatible models has been added (90W display monitor type). Added screwless terminal block series to display monitor type. The display section shows the status using a 3-digit, 7-segment LED display. Safety standards: UL508/60950-1, CSA C22.2 No.107.1/60950-1EN50178 (=VDE0160), EN60950-1 (=VDE0805 Teil1) certified. Input conditions: DC input is also possible from DC80 to 370V (EC directives and various safety standards are not covered). /30W Compact and thin power supply that can be attached freely. Contributes to miniaturization of control panels Compact and thin size of 22.5 mm width x 85 mm height x 96.5 mm depth. Can be installed in 3 directions. (Standard, horizontal, upward) Can be mounted closely to the panel. Safety standards: UL508/60950-1, CSA C22.2 No.107.1/60950-1EN50178 (=VDE0160) certified. Obtained EN60950-1 (=VDE0805 Teil1). Compatible with DIN rail mounting. A new series has been added to the type with display monitor. Contributing to equipment start-up with simple functions.
Manufacturer: OMRON
Part number: S8VS-03024
Product weight: 20 g
Product size: 12.09 x 10.8 x 3.18 cm; 20 g
Discontinued by Manufacturer: No
Color: White
Style: Output Voltage: 24V
Pattern: S8VS-03024
Wattage: 30 W
Chlorine removal rate: CSA
Battery usage: No
Product dimensions (Length x Width x Height): 12.1 x 10.8 x 3.2 cm
< br> A new series has been added to the 60/90/120/180/240/480W monitor type.The pull function contributes to equipment start-up.A series of UL Class 2 output compatible models has been added (90W display monitor type). Added screwless terminal block series to display monitor type. The display section shows the status using a 3-digit, 7-segment LED display. Safety standards: UL508/60950-1, CSA C22.2 No.107.1/60950-1EN50178 (=VDE0160), EN60950-1 (=VDE0805 Teil1) certified. Input conditions: DC input is also possible from DC80 to 370V (EC directives and various safety standards are not covered). /30W Compact and thin power supply that can be attached freely. Contributes to miniaturization of control panels Compact and thin size of 22.5 mm width x 85 mm height x 96.5 mm depth. Can be installed in 3 directions. (Standard, horizontal, upward) Can be mounted closely to the panel. Safety standards: UL508/60950-1, CSA C22.2 No.107.1/60950-1EN50178 (=VDE0160) certified. Obtained EN60950-1 (=VDE0805 Teil1). Compatible with DIN rail mounting. A new series has been added to the type with display monitor. Contributing to equipment start-up with simple functions.
Manufacturer: OMRON
Part number: S8VS-03024
Product weight: 20 g
Product size: 12.09 x 10.8 x 3.18 cm; 20 g
Discontinued by Manufacturer: No
Color: White
Style: Output Voltage: 24V
Pattern: S8VS-03024
Wattage: 30 W
Chlorine removal rate: CSA
Battery usage: No
Product dimensions (Length x Width x Height): 12.1 x 10.8 x 3.2 cm
