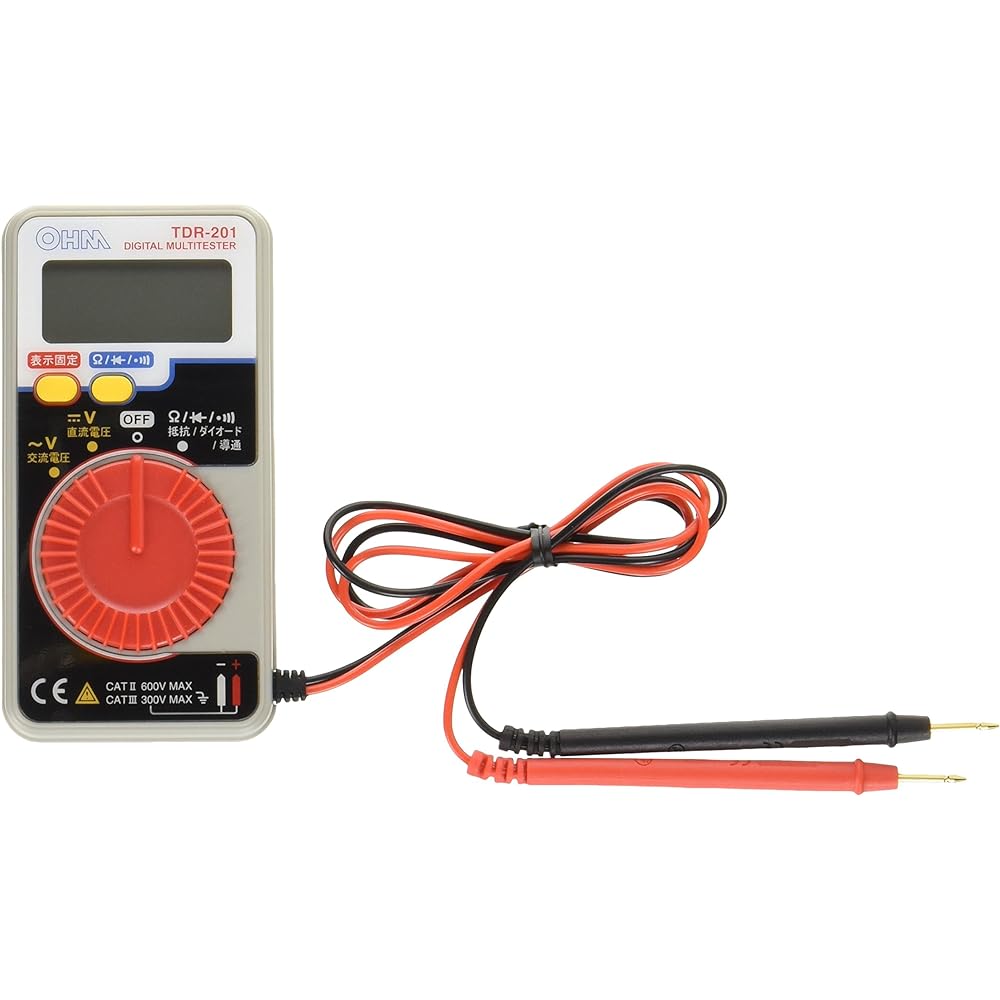

Ohm Electric Digital Multi Tester TDR-201

Display board (LCD) Number display: 3 1/2 digit liquid crystal display, maximum 1999, character height 12mm Operating principle: Sigma-delta conversion method Battery consumption display: "BAT" sign displayed at approximately 2.4V or less Continuity test: LCD Sign and buzzer sound a. Buzzer sound below approx. 50Ω b. Open circuit voltage: approx. 0.45V Power supply: 3V CR2032 battery 1 piece

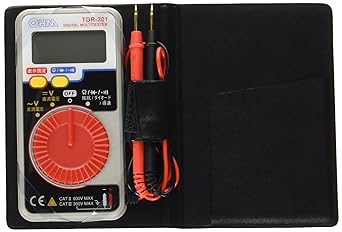

● For diagnosing electrical equipment failures and checking battery life. ●Integrated with notebook type soft case. Easy-to-use rotary switch. ● 1999 count display. ● Diode test and continuity test using buzzer are also available. ● Auto power save: Prevents battery consumption. ● High safety: CE mark certification, passed IEC-61010-1 and ISO3864. ● Battery used: CR2032 x 1 (built-in)


Manufacturer: ‎Ohm (OHM)
Part number: ‎TDR-201
Product weight: ‎60 g
Product size: 0.9 x 5.5 x 10.9 cm; 60 g
Battery: 1 alkaline button battery (included)
Discontinued by manufacturer: No
Color: Mixed colors, Gray, Red
Style: ‎Tester
Power Type: ‎Battery Powered
Quantity: ‎1
Measurement Accuracy: ‎+/-0
Accessories: ‎3V CR2032 battery 1 piece (built-in), notebook type soft case, instruction manual (warranty)
Battery included: Yes
Battery used: Yes
Battery type: Lithium manganese dioxide
Product dimensions (length) x width x height): 9 x 55 x 109 mm
