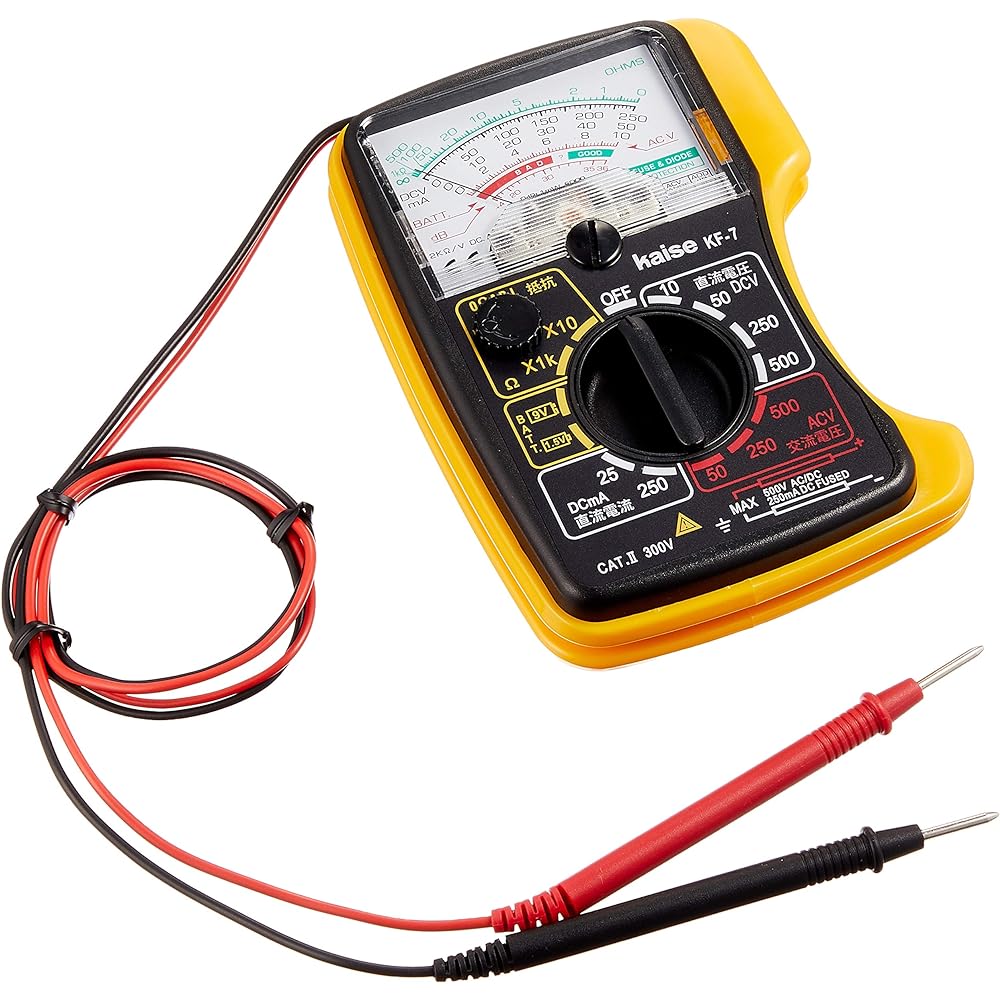

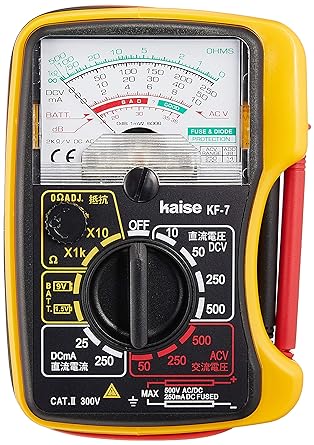

OHM Analog Multi Tester KF-7 (04-1869)

● For diagnosing electrical equipment failures and checking battery life. ● Test leads and cords can be stored neatly in the main body. ● The shock-resistant case guard (yellow part) protects the main unit. ● Comes with a function to check 1.5V and 9V batteries. ● Thin and compact design with a thickness of 28mm, making it easy to use and carry. ● Easy-to-read display and functional design that is easy to use. ● Dry battery used: AAA size x 1 (1 built-in, 1 included) ● Spare battery and spare fuse included ■ Measurement range Direct current voltage (DCV): 10, 50, 250, 500V (2000Ω/V) AC voltage ( ACV): 50, 250, 500V (2000Ω/V) Direct current (DCA): 25mA, 250mA Resistance (ω): ×10 (10kΩ), ×1K (1MΩ) Battery check: 1.5V AA 3R6P battery Approx. 100mA load 9V6F22 Battery Approx. 20mA load Low frequency output (dB): +4 to 36, 50, 56dB ■ Accuracy DC voltage (DCV): ±5%Fs AC voltage (ACV): ±5%Fs Direct current (DCA): ±5%Fs Resistance (ω): ±5% (of scale length) ■ Safety standard: CAT.II 300V Fuse: 0.5A/250V 5 x 20mm 1 piece Power supply: 1.5V AAA (R03) 1 piece Dimensions: 120 x 90 x 28 mm Weight: 160g ■ Accessories: 1.5V R03, 1 fuse (0.5A/250V) *Batteries and fuses are replaceable. *Please use the replacement fuse manufactured by Ohm Electric Co., Ltd., product number: 04-1624.

Test leads and cords can be neatly stored in the main unit for diagnosing electrical equipment failures and checking battery life.A shock-resistant case guard protects the main unit.Easy-to-read display, functional design for easy use.

< br>Manufacturer: ‎Ohm
Part number: ‎KF-7
Product weight: ‎160 g
Product size: ‎2.8 x 9 x 12 cm; 160 g
By manufacturer Discontinued: ‎No
Color: ‎Black/Yellow
Style: ‎Analog Tester
Power Type: ‎Battery Powered
Voltage: ‎500 Volts
Measurement Accuracy: ‎ ±0.5%
Accessories: None
Batteries included: No
Batteries used: Yes
Product dimensions (Length x Width x Height): 28 x 90 x 120 mm
