Auto Parts Tokyo

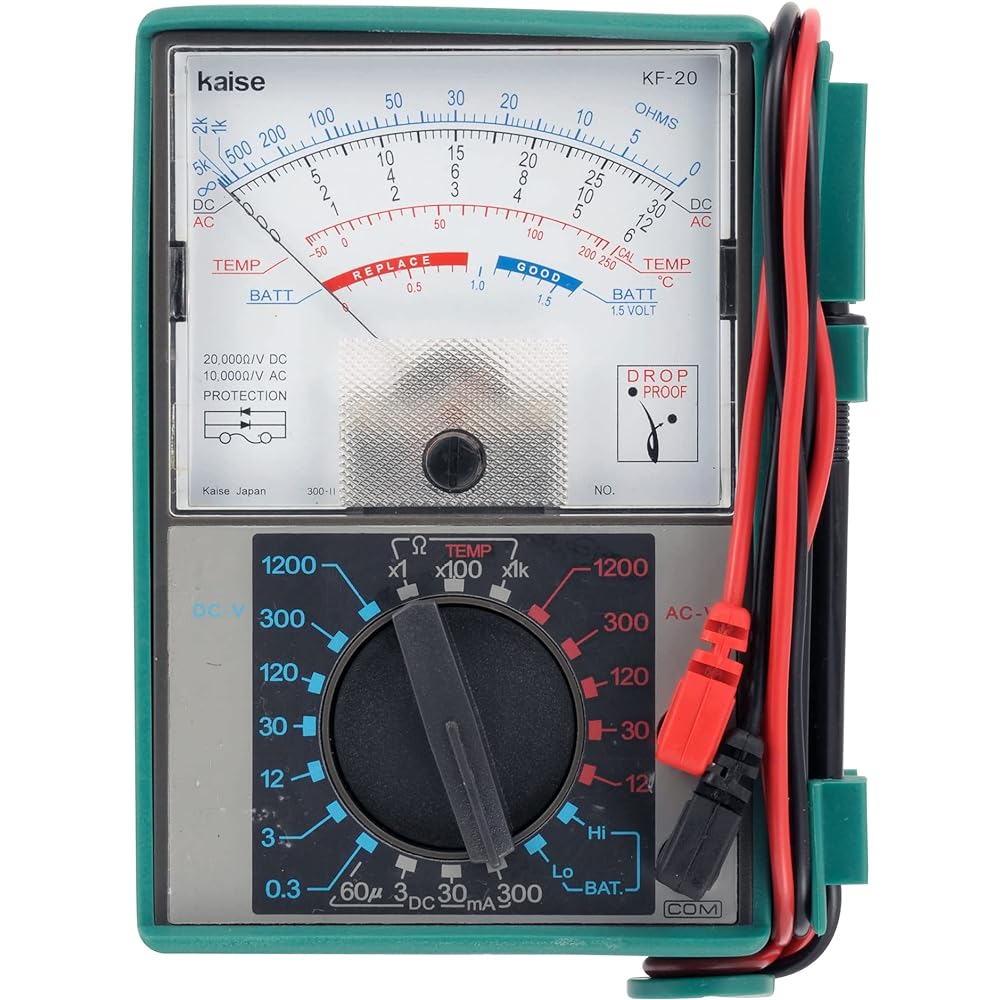

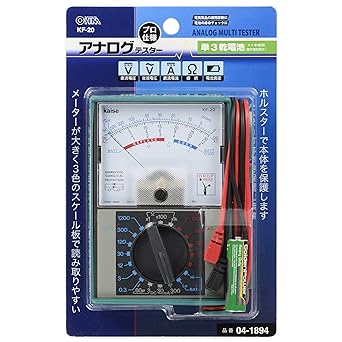

OHM Analog Multi Tester KF-20 (04-1894)
OHM Analog Multi Tester KF-20 (04-1894)
Regular price
$51.00 USD
Regular price
Sale price
$51.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
DC voltage (DC.V): 0.3/3/12/30/120/300/1200V AC voltage (AC.V): 12/30/120/300/1200V DC current (DC.mA): 60μA /3mA/30mA/300mA Resistance (Ω): 5KΩ/500KΩ/5MΩ 1.5V battery measurement: 1.5V R20P/R14P/R6P Hi range: 1.5V 250mA Lo range: 1.5V 50mA Dimensions: Width 90 x Height 136 x Thickness Size: 30mm (body only) Weight: 215g (body only) Weight: 215g (body only)
● For diagnosing electrical equipment failures and checking battery life. ● Comes with a holster to protect the tester body from impact. It comes with a holster, so even if you accidentally drop it from a height of 1 meter onto a concrete floor, it will not be damaged and will still be strong enough to measure to the specified accuracy. ● Test leads can be stored and secured in the holster. The side of the holster is shaped to allow test leads to be wrapped around or secured. It can be conveniently used to store test leads or to take measurements while holding the tester in one hand. ● The 3-color display board with large letters makes it extremely easy to read. ● Equipped with "Hi" (1.5V 250mA) and "Lo" (1.5V 50mA) ranges that can more accurately measure the level of 1.5V battery consumption. ●Safety design that can withstand overloads up to 250V. ● It has a thin design with a thickness of 30mm, making it highly portable. ● Equipped with a convenient tilting stand on the back for easy viewing on a desk, etc. ● Batteries used: AA size x 1 (1 built-in, 1 included) ● Spare battery and spare fuse included
Manufacturer: Ohm (OHM)
Part number: KF -20
Product weight: 215 g
Product size: 3 x 9 x 13.6 cm; 215 g
Battery: 1 AA battery (included)
Discontinued by manufacturer Now: No
Color: Green
Style: Digital Tester
Power Type: Battery Powered
Quantity: 1
Measurement Accuracy: ±3%
Accessories: 1 holster, 1 set of test leads, 1 0.3A 250V fuse, 1 1.5V R6P battery (built-in), 1 spare fuse, 1 spare battery
Battery included: Yes
Battery usage: Yes
Battery type: Manganese
Product dimensions (Length x Width x Height): 30 x 90 x 136 mm
● For diagnosing electrical equipment failures and checking battery life. ● Comes with a holster to protect the tester body from impact. It comes with a holster, so even if you accidentally drop it from a height of 1 meter onto a concrete floor, it will not be damaged and will still be strong enough to measure to the specified accuracy. ● Test leads can be stored and secured in the holster. The side of the holster is shaped to allow test leads to be wrapped around or secured. It can be conveniently used to store test leads or to take measurements while holding the tester in one hand. ● The 3-color display board with large letters makes it extremely easy to read. ● Equipped with "Hi" (1.5V 250mA) and "Lo" (1.5V 50mA) ranges that can more accurately measure the level of 1.5V battery consumption. ●Safety design that can withstand overloads up to 250V. ● It has a thin design with a thickness of 30mm, making it highly portable. ● Equipped with a convenient tilting stand on the back for easy viewing on a desk, etc. ● Batteries used: AA size x 1 (1 built-in, 1 included) ● Spare battery and spare fuse included
Manufacturer: Ohm (OHM)
Part number: KF -20
Product weight: 215 g
Product size: 3 x 9 x 13.6 cm; 215 g
Battery: 1 AA battery (included)
Discontinued by manufacturer Now: No
Color: Green
Style: Digital Tester
Power Type: Battery Powered
Quantity: 1
Measurement Accuracy: ±3%
Accessories: 1 holster, 1 set of test leads, 1 0.3A 250V fuse, 1 1.5V R6P battery (built-in), 1 spare fuse, 1 spare battery
Battery included: Yes
Battery usage: Yes
Battery type: Manganese
Product dimensions (Length x Width x Height): 30 x 90 x 136 mm
