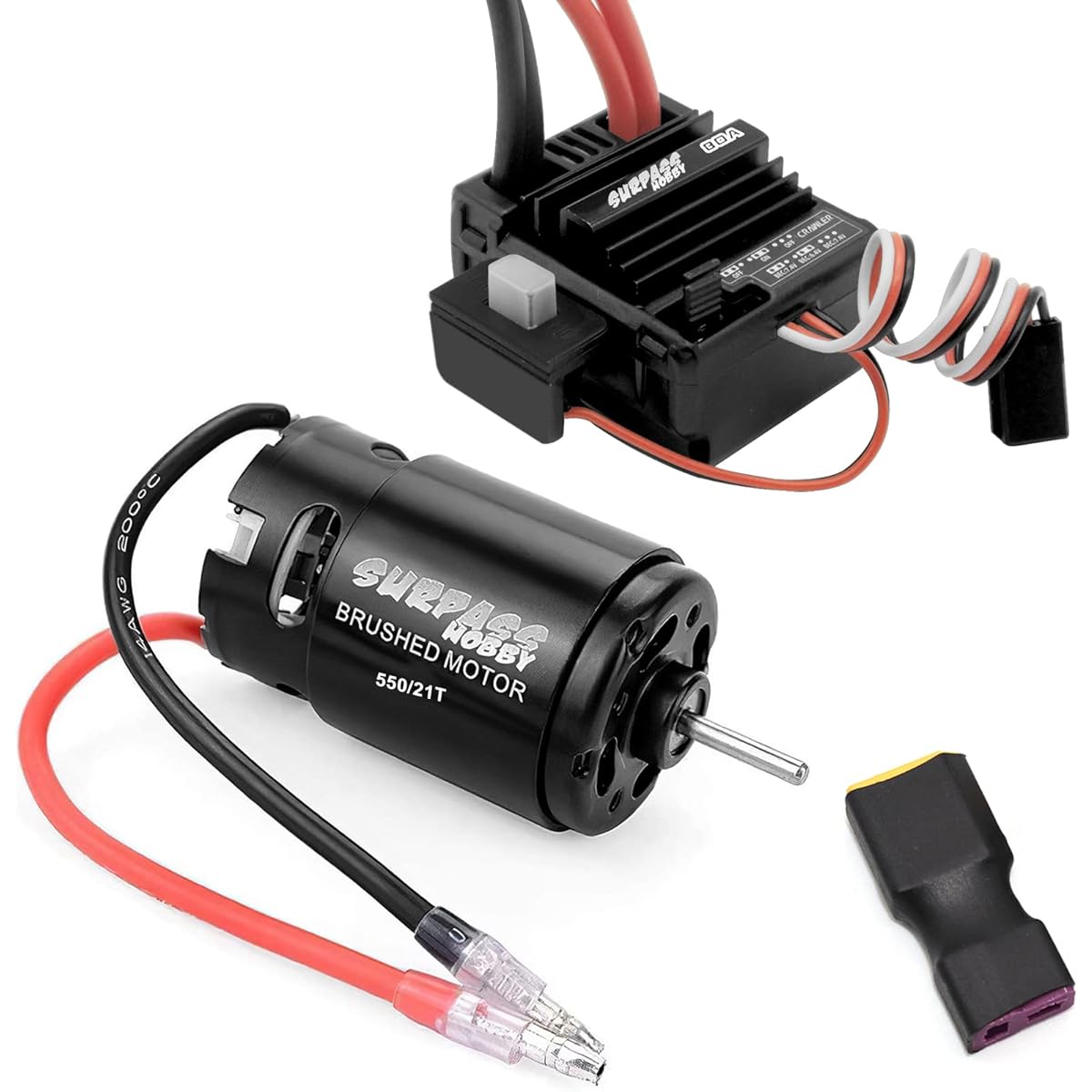

OGRC 550 21T Brushed Motor and 80A ESC Set with T-XT60 Converter Adapter for 1/10 RC Crawler Car Traxxas Trx4 Ford Bronco Trx6 Axial SCX10 II III Redcat Gen7 Gen8 V2 RC4WD D90 (T Plug)

[Wide Compatibility] OGRC 550 21T brushed motor and 80A ESC fits 1/10 scale electric RC crawler car Traxxas Trx4/1979&2021 Ford Bronco/Trx6/Titan 550 21 Turn Motor (Model #3975)/Axial Scx10 II Suitable for III/Red. cat Gen7 Gen. 8 V2/RC4WD D90 【Multiple Protection】OGRC 550 21T brushed motor and 80A ESC not only provides high power output but also overload protection for the ESC circuit. Low voltage cutoff protection/overtemperature protection/throttle signal loss protection. (Note: ESC signal cable has reverse connection protection. Power cord without reverse connection protection). 【Waterproof Design】Waterproof RC ESC is suitable for all weather conditions. Waterproof and dustproof design allows Brushed ESC to be used in all weather conditions and there will be no problem of water or debris damaging the ESC. [Dual Running Mode] 80A ESC has BEC high voltage & low voltage switch (5A 7.4V/6.4V), crawler & fast dual mode switching, input voltage: 7.4V (Note: Not compatible with 3S lipo battery ), 6V-8.4V (5-7 cell NiMH). Note: We recommend using crawler mode for crawlers. [Perfect combination] OGRC 21T 550 motor and ESC are equipped with XT60 conversion adapter, so you can use it with confidence. Precision balanced rotor, highest reliability, up to 12800 RPM.

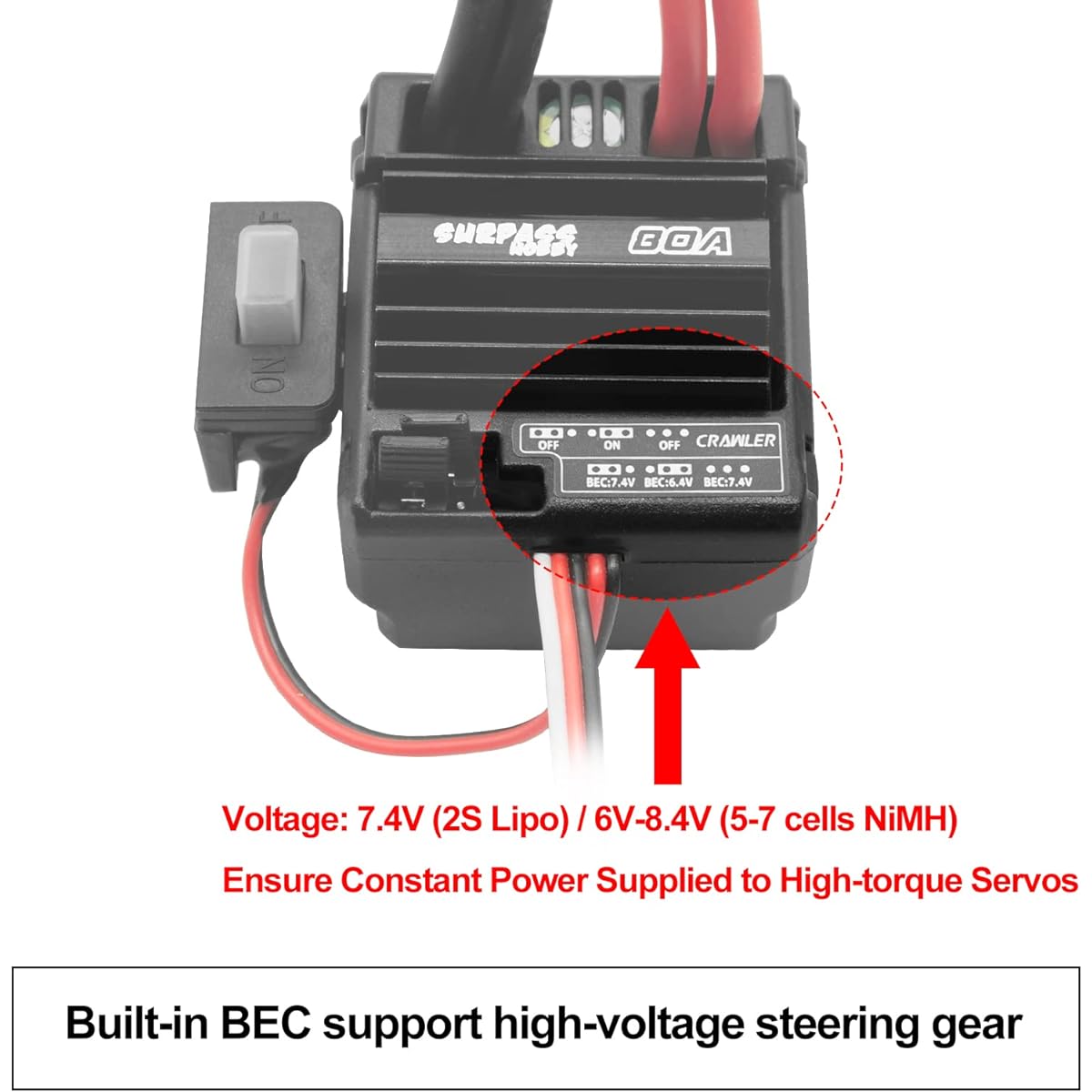

ESC specifications: Product name: Brushed 80A ESC. Type: Matte. Waterproof level: IP65 Forward: Sustained current/peak current: 80A/320A Reverse: Sustained current/peak current: 40A/160A Voltage: 7.4V (2S Lipo) / 6V-8.4V (5-7 cell Ni-MH) BEC output: Switch Mode: 5A 7.4V/6.4V Adjustable Running Mode: Crawler & High Speed ​​Adjustable (Forward/Reverse). ESC programming: program port jumper cap. Input connector: T connector Output connector: 4.0 bullet connector (female) Size: 42x35x27mm Weight: 50g. Motor specifications: Product Name: 550 21T Motor Color: Black Size: 550 Number of Turns: 21T Watts: 78-137W. Color: Black Number of turns: 21T Number of revolutions: 12800. Voltage: 7.2V-12.6V. Current: 1.42A Resistance: 0.0043 Maximum rotation speed: 12800. Diameter: 35.6mm. Length: 57.5mm Extension shaft length: 16.5mm. Shaft diameter: 3.175mm. Connector: 3.5mm. Weight: approx. 232g. Due to manual measurement, there may be slight errors. Package Contents: 1x Brushed 80A ESC 21T brushed 550 motor x 1 1 x XT60 converter adapter Instruction manual x 1


Manufacturer: ‎OGUNKE RC
Part number: ‎ORC153T
Item weight: ‎50 g
Material: ‎Aluminum
Voltage: ‎7.4 volts
Horsepower: 0.12 Watts Speed: 12800 revolutions per minute x height): ‎36 mm
