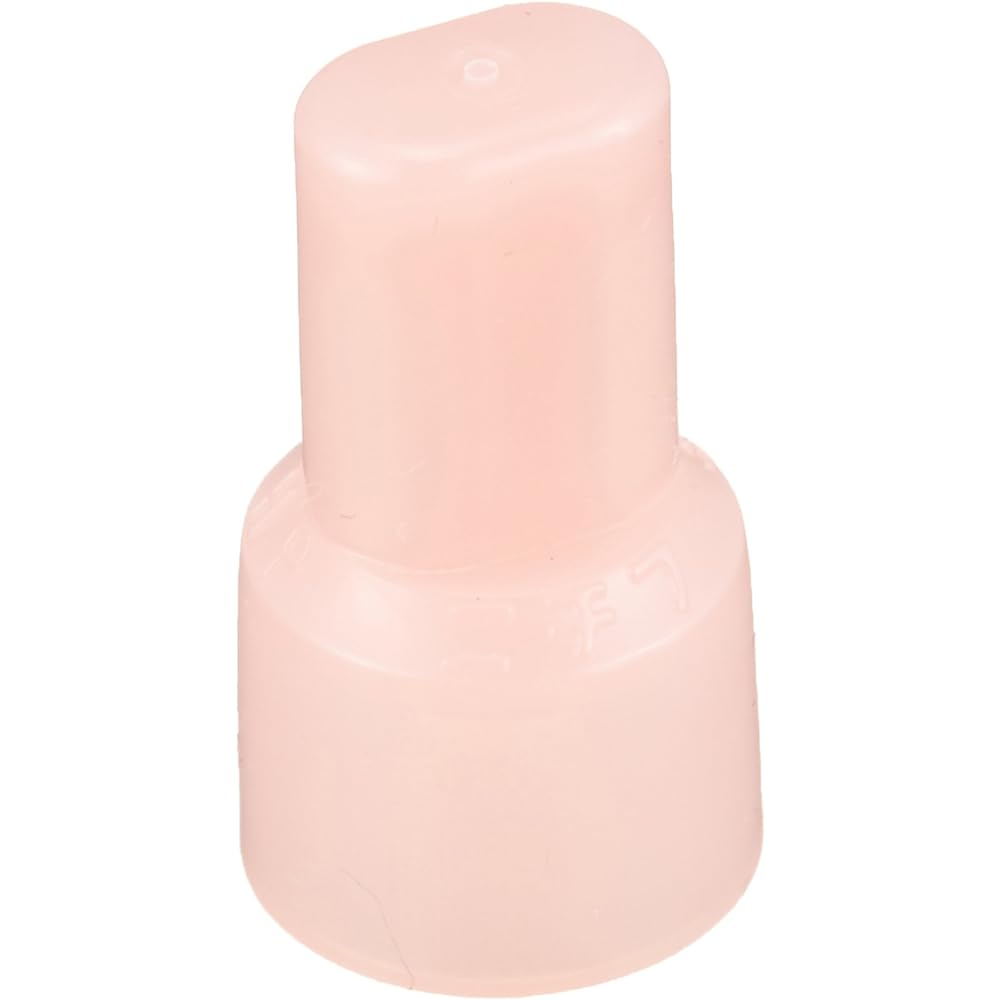

ニチフ Disaster prevention heat-resistant type closed-end connector 100 pieces SQ CE-5HP

Quantity: 100 pieces Rated current: 5A Rated voltage: 300V Working temperature range: 0 to 40 degrees Operating temperature range: -40 to 75 degrees ΦD size (mm): 12.3 L size (mm): 22.0 ℓ size (mm): 8.1 E size (mm): 10.0 Special crimping tool: NH40 Increase the number of items displayed

100 heat-resistant closed-end connectors for disaster prevention ■Features No need for troublesome taping work and can shorten work time Passed the heat resistance test that reaches 380℃ after 15 minutes as stipulated by Fire and Disaster Management Agency Notification No. 11


Manufacturer: Nichifu Terminal Industry
Part number: SQ CE-5HP
Product weight: 150 g
Package size: 11.8 x 9.8 x 1.4 cm; 150 g
Size: ‎ΦD×L×l×E(mm):12.3×22.0×8.1×10.0
