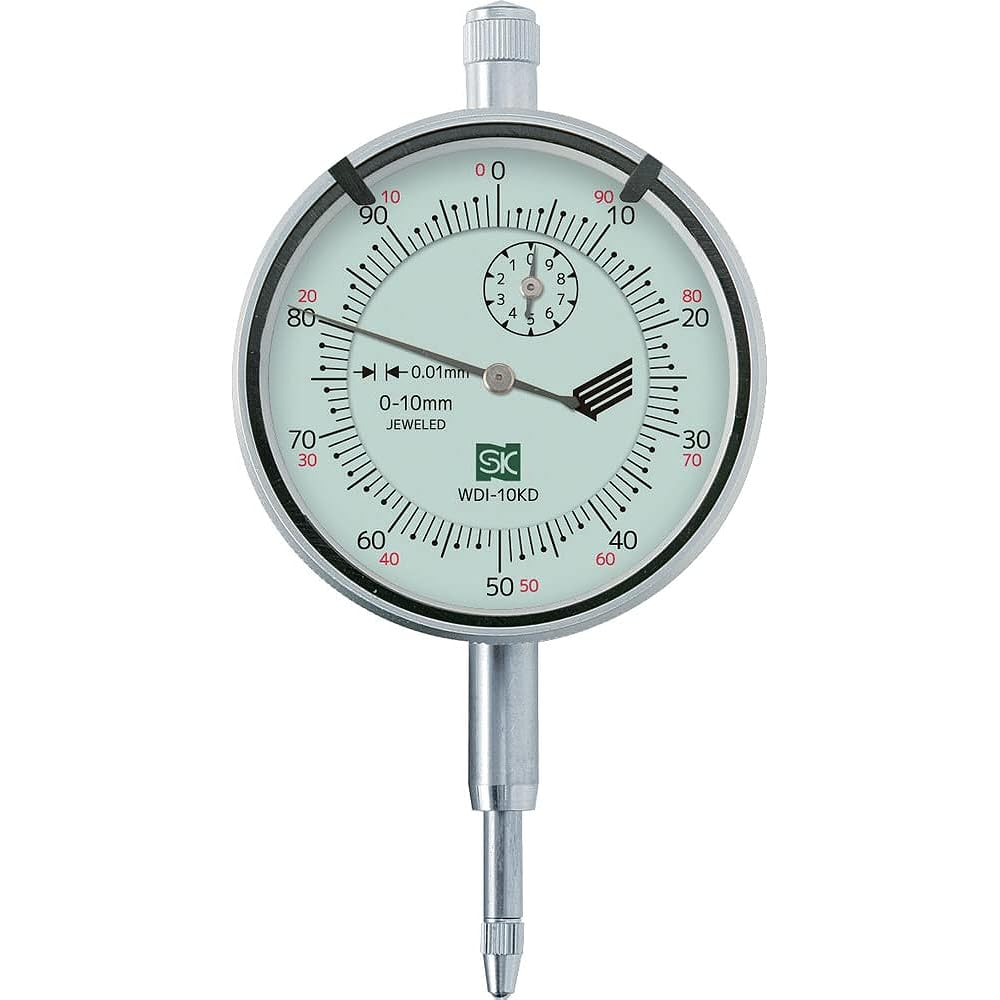

Niigata Seiki SK Kaidan Scale Dial Gauge 0-10mm Graduation 0.01mm WDI-10KD

Measuring range (mm): 0-10 Repeatability (μm): 5 Return error (μm): 5 1/10 rotation adjacent error (μm): 8 Total measurement range indication error (μm): ±20

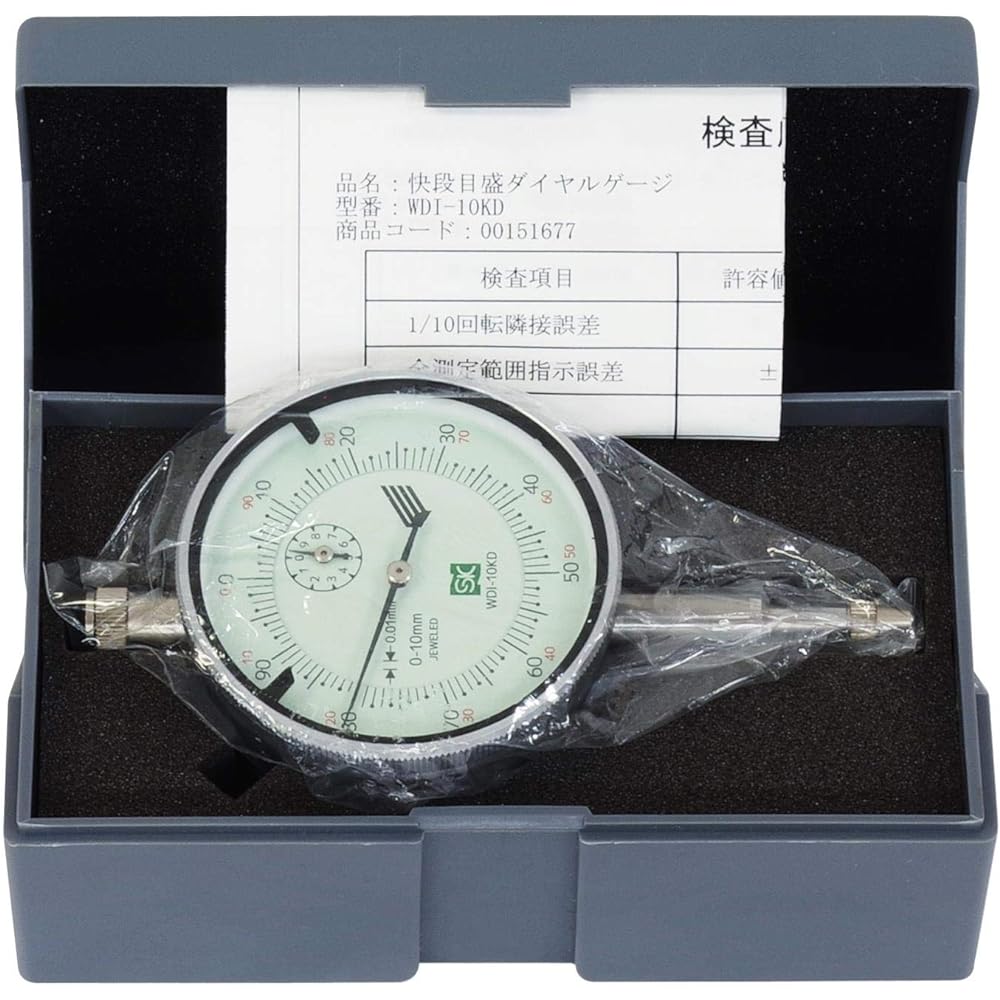

The newly designed stepped scale prevents misreading of the smallest unit for measuring displacement such as unevenness of the plane, the quality of workpiece installation, shaft runout, squareness, etc. To guarantee accuracy, an inspection table is included that shows the values ​​at the time of inspection. A limit needle is installed. A jewel is incorporated into each bearing part. The scale plate is green. Two types of back lids are included: a flat type and a type with ear metal. Type: Standard Graduation (mm): 0.01 Scale Specifications: ±0-100 Measuring force (N): 1.5 or less Long hand 1 revolution (mm): 1


Brand: Niigata Seiki
Product model number: ‎WDI-10KD
Product size: ‎2.45 x 5.8 x 11.2 cm; 330 g
Color: ‎Silver
Material: ‎Body: Steel, Probe tip: Steel
>Accessories: ‎PC case, lid with ear metal, instruction manual
About warranty: ‎None
Product weight: ‎330 g
