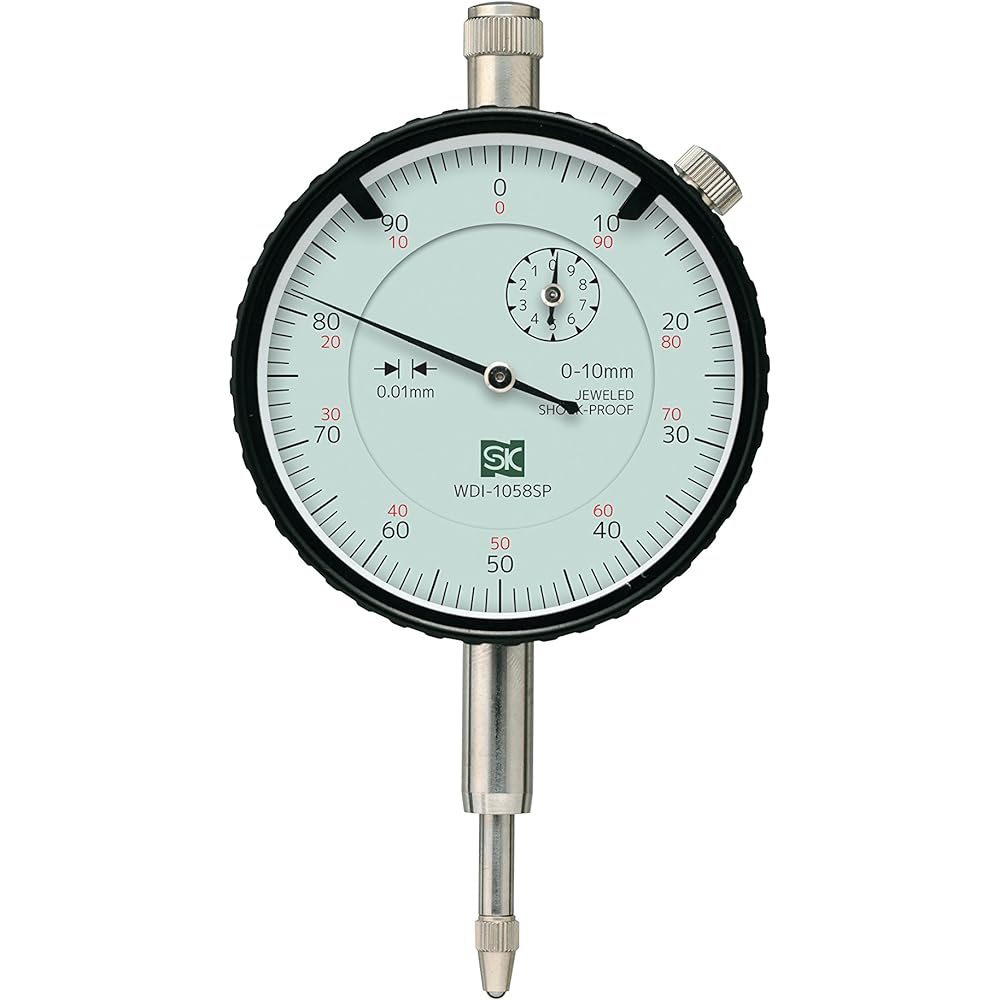

Niigata Seiki SK Dial Gauge 0-10mm Graduation 0.01mm WDI-1058SP
Niigata Seiki SK Dial Gauge 0-10mm Graduation 0.01mm WDI-1058SP
Regular price
$47.00 USD
Regular price
Sale price
$47.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

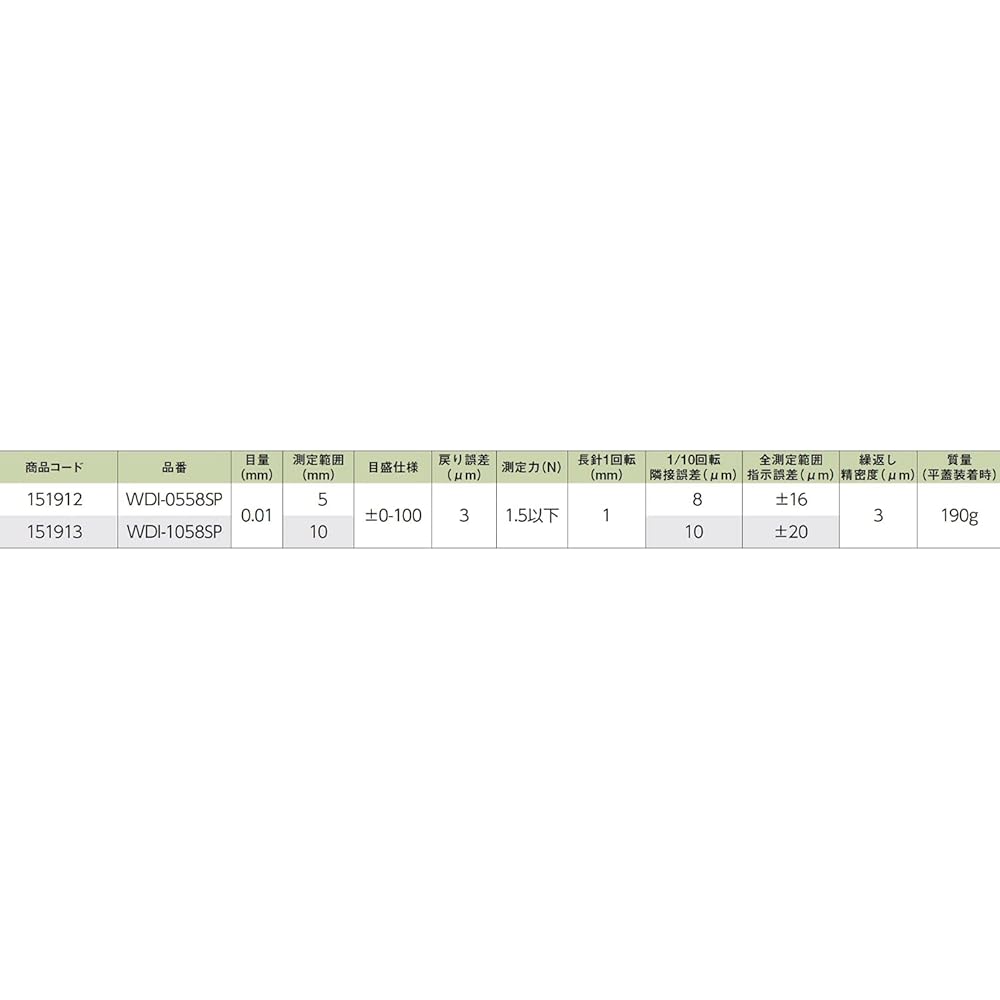

Country of manufacture: China Graduation: 0.5N or less One rotation of long hand: 1mm
1/10 rotation adjacent error: 10μm Total measurement range indication error: ±20mm Repeatability: 3μm Increase the number of items displayed
In order to guarantee accuracy in measuring displacement such as unevenness of the plane, quality of attachment of the workpiece, shaft contact, squareness, etc., an inspection table is included with the numerical values at the time of inspection. A limit needle is installed. An O-ring is incorporated to prevent water and oil from entering through the gap between the outer frame and inner frame. A jewel bearing is used for the bearing part. The scale plate is green. Two types of back lids are included: a flat type and a type with ear metal. The shock-proof mechanism protects the gear from sudden push-up of the spindle.
Brand: Niigata Seiki
Product model number: WDI-1058SP

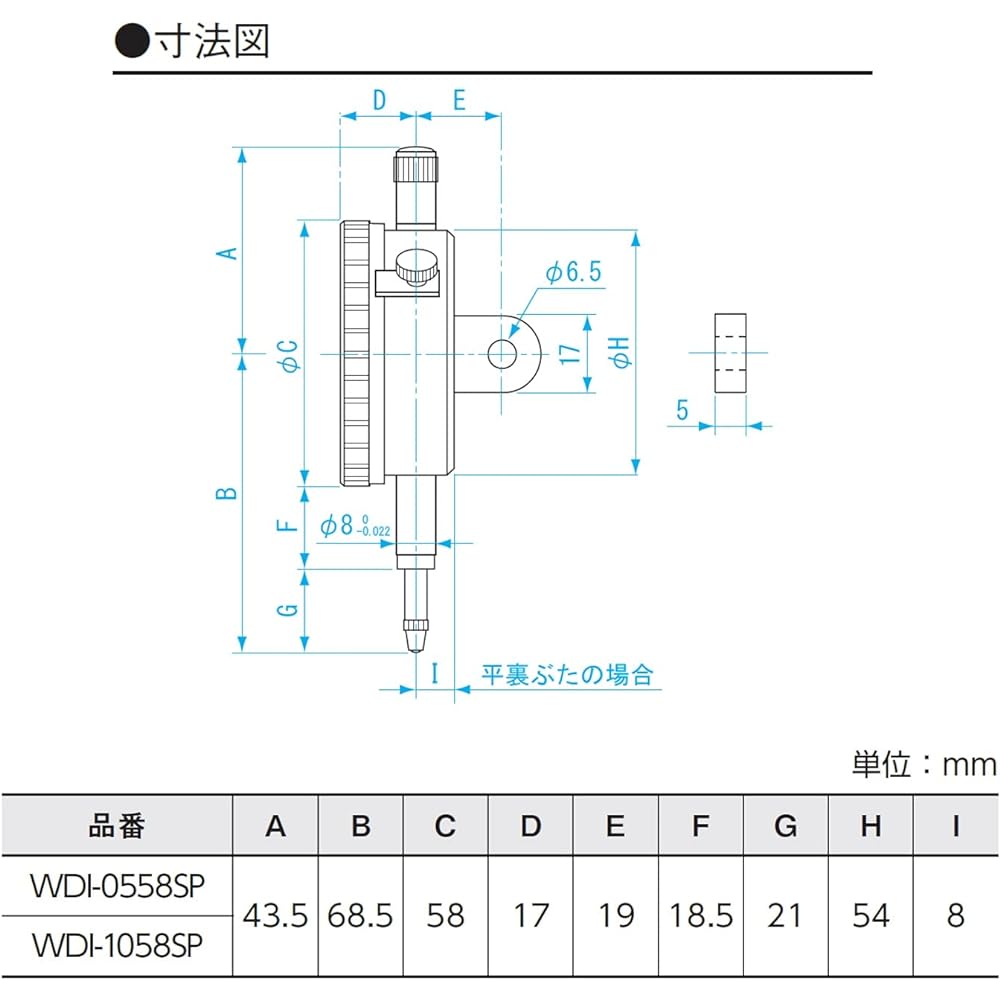

Product size: 13 x 7.5 x 7.5 cm; 350 g
Material: ● Body: Aluminum, steel
Quantity: 1
Accessories: ●PC case ●Instruction manual
Battery included: No
About warranty: None
Product weight: 350g
In order to guarantee accuracy in measuring displacement such as unevenness of the plane, quality of attachment of the workpiece, shaft contact, squareness, etc., an inspection table is included with the numerical values at the time of inspection. A limit needle is installed. An O-ring is incorporated to prevent water and oil from entering through the gap between the outer frame and inner frame. A jewel bearing is used for the bearing part. The scale plate is green. Two types of back lids are included: a flat type and a type with ear metal. The shock-proof mechanism protects the gear from sudden push-up of the spindle.
Brand: Niigata Seiki
Product model number: WDI-1058SP
Product size: 13 x 7.5 x 7.5 cm; 350 g
Material: ● Body: Aluminum, steel
Quantity: 1
Accessories: ●PC case ●Instruction manual
Battery included: No
About warranty: None
Product weight: 350g
