Auto Parts Tokyo

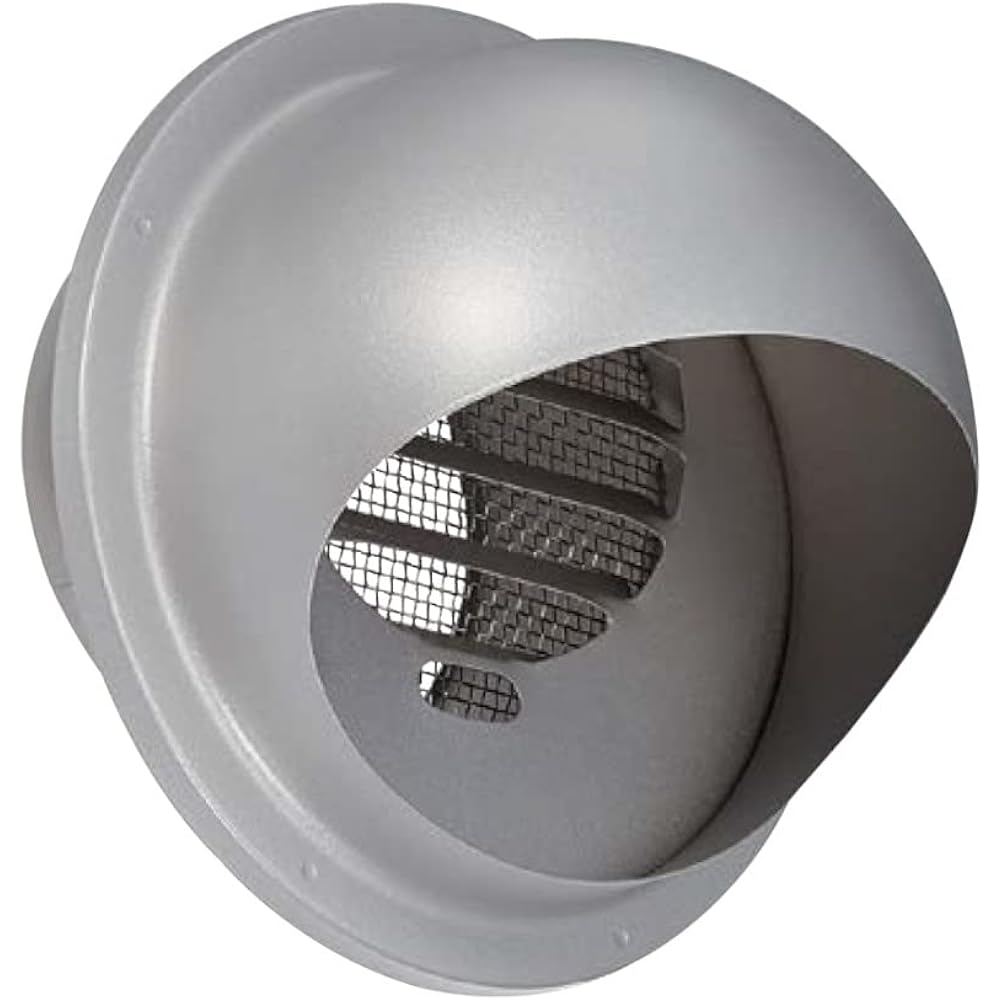

NASTA Outdoor Ventilation Vent KS-87SH00D#10-SV Stainless Steel Eccentric Type Silver Main Body: Depth 15cm Main Body: Height 17.5cm Main Body: Width 15cm Insect Screen Included
NASTA Outdoor Ventilation Vent KS-87SH00D#10-SV Stainless Steel Eccentric Type Silver Main Body: Depth 15cm Main Body: Height 17.5cm Main Body: Width 15cm Insect Screen Included
Regular price
$57.00 USD
Regular price
Sale price
$57.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Applicable pipe: Spiral pipe (inner diameter φ125) Fire damper (fuse type): None Finish: Baked paint
The eccentric design reduces the intrusion of wind and rain. Comes with insect screen. (Stainless steel 10 mesh) Stainless steel 3 mesh and stainless steel 5 mesh specifications are also available. Note: Do not use the stainless steel 10 mesh specification for local ventilation fans. Do not use a fire damper in the exhaust duct of sealed or semi-sealed combustion equipment (water heaters, bathtubs, etc.), as the damper may close due to malfunction and cause incomplete combustion, which may be dangerous. Fire damper smoke leak test passed [No. 14A0189], operation test passed [No. 14A0190]
Brand: NASTA
Product model number: KS-87SH00D#10- SV
Package size: 25 x 20 x 20 cm; 1 kg
Color: Silver
Name on nameplate: Applicable pipe: Spiral tube (inner diameter φ125)
Material: Main body: Stainless steel (SUS304) t=0.5mm
Quantity: 1
Accessories: Insect screen included
About warranty: None
Product weight: 1 Kilograms
The eccentric design reduces the intrusion of wind and rain. Comes with insect screen. (Stainless steel 10 mesh) Stainless steel 3 mesh and stainless steel 5 mesh specifications are also available. Note: Do not use the stainless steel 10 mesh specification for local ventilation fans. Do not use a fire damper in the exhaust duct of sealed or semi-sealed combustion equipment (water heaters, bathtubs, etc.), as the damper may close due to malfunction and cause incomplete combustion, which may be dangerous. Fire damper smoke leak test passed [No. 14A0189], operation test passed [No. 14A0190]
Brand: NASTA
Product model number: KS-87SH00D#10- SV
Package size: 25 x 20 x 20 cm; 1 kg
Color: Silver
Name on nameplate: Applicable pipe: Spiral tube (inner diameter φ125)
Material: Main body: Stainless steel (SUS304) t=0.5mm
Quantity: 1
Accessories: Insect screen included
About warranty: None
Product weight: 1 Kilograms
