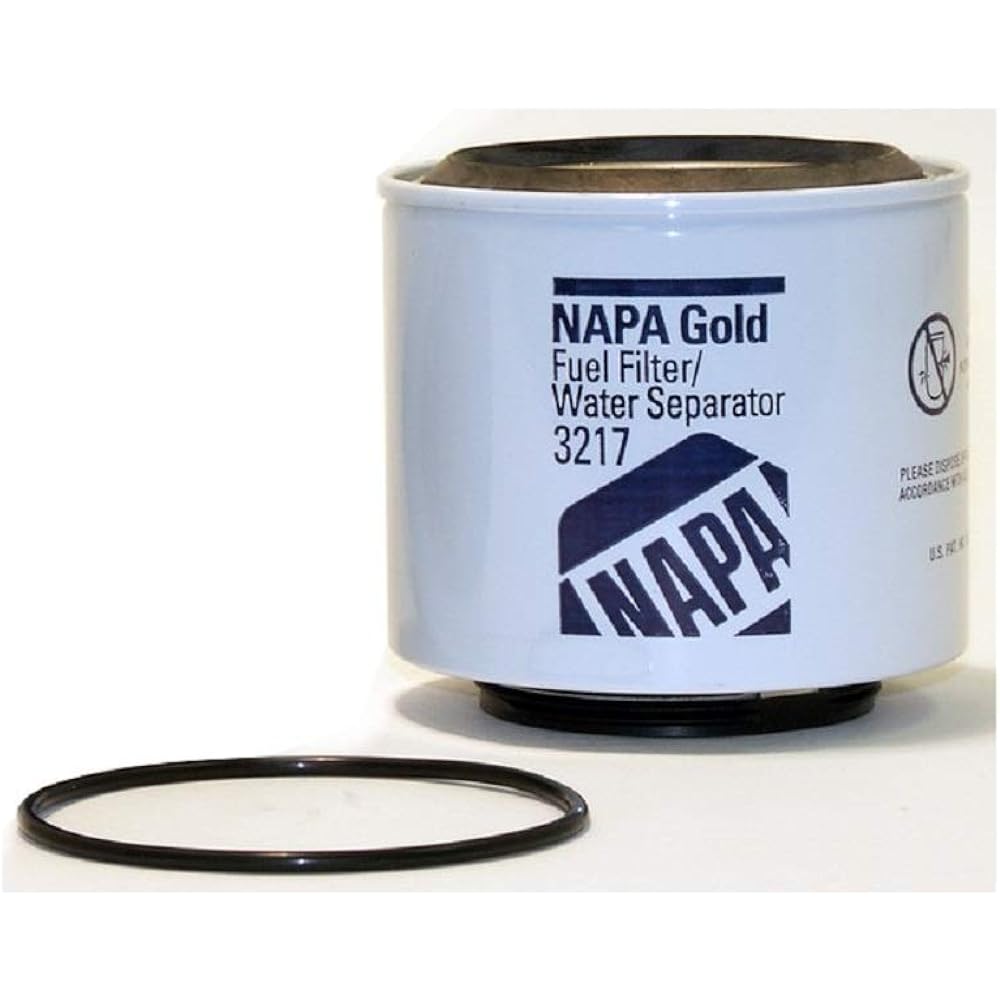

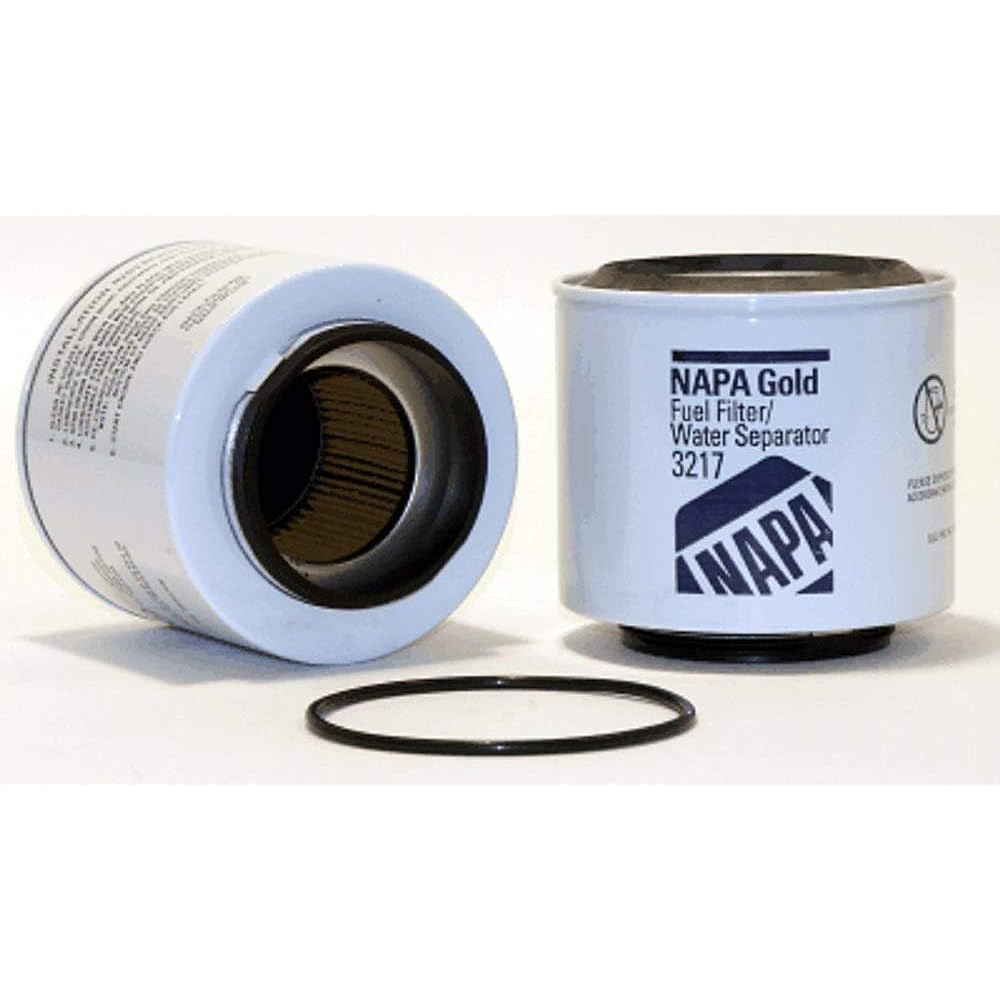

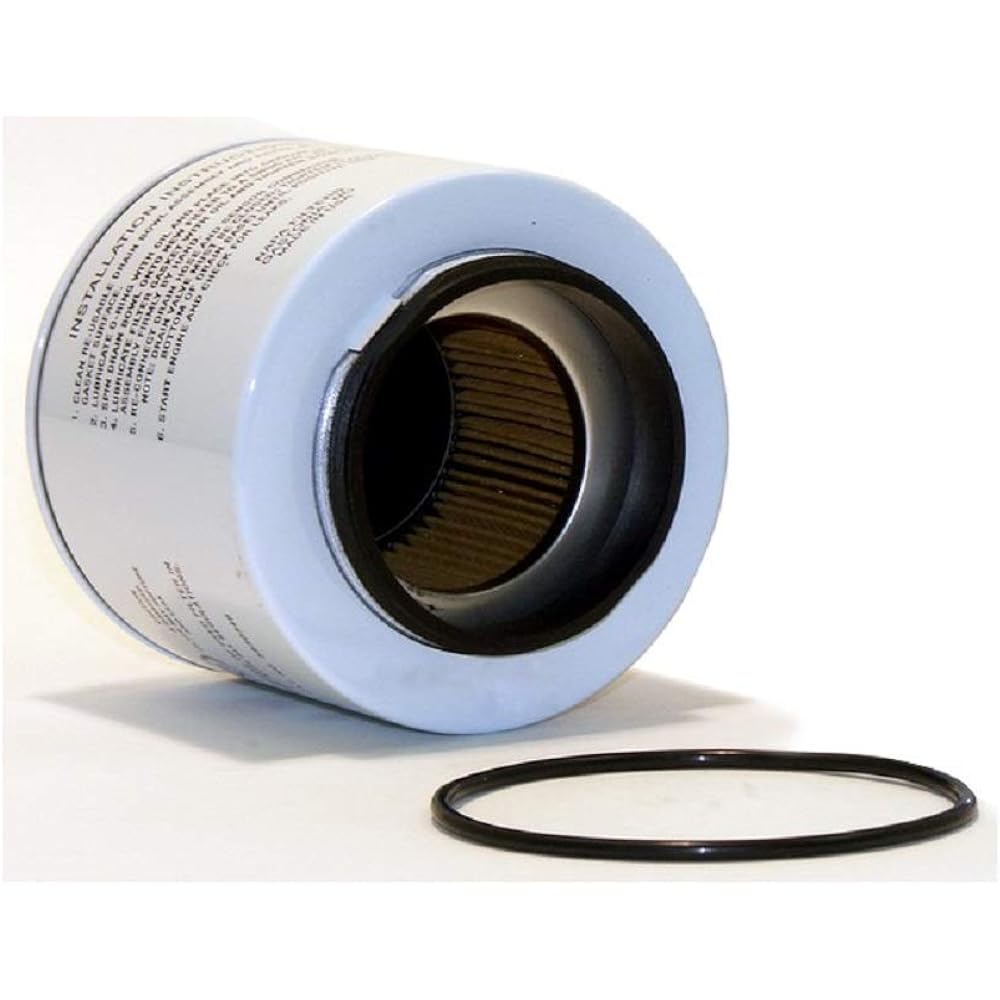

NAPA Gold Fuel Filter 3217

NAPA Gold Fuel Filters provide superior engine protection for normal and harsh driving conditions such as dirt roads, construction sites, stop-and-go traffic, short trips, and interstates. Ford Truck 7.3L Diesel (87-95) (14 micron) 3417 (spin-on element with drain) can also be used - 3617 or 3805 can also be used (spin-on element with drain + sensor port - 3617 sensor is 7/16-20 - 3805 sensor is 1/2-20)

Features and Benefits are available with part number 3417, which is a complete spin-on with drain - if a sensor port is required, use 3617. Filter Style: Spin-on Fuel Water Separator Fuel Filter Gasket OD. (in): 3.6" Fuel Filter Gasket Thickness (in): 0.36" Fuel Filter Height (in): 4" Fuel Filter Inlet Thread Size (in): 1-14 Fuel Filter Outer Diameter. (inch): 4.3 inches Gasket inner diameter. (inch): 3.2 inch fuel filter gasket outer diameter. (mm) : 91 mm Fuel Filter Gasket Thickness (mm) : 9 mm Fuel Filter Height (mm) : 103 mm Fuel Filter O.D. (mm) : 109 mm Gasket Inner Dia. (mm): 81mm.


Manufacturer: ‎NAPA
Brand: ‎Napa
Product size: ‎15.24 x 15.24 x 5.08 cm; 678 g
Manufacturer reference: ‎3217
Made by manufacturer Discontinued: ‎No
Special Notes: ‎Fuel filter outer diameter. (inch): 4.3 inch Fuel filter outer diameter. (mm): 109 mm Fuel Filter Style: Spin-on Fuel/Water Separation Filter Gasket I.D. (inch): 3.2 inch Gasket inner diameter. (mm): 81 mm UNSPSC: 40161513, Filter Style: Spin-on Fuel/Water Separation Filter Fuel Filter Gasket O.D. (inch): 3.6 inch. Fuel filter gasket outer diameter. (mm): 91 mm Fuel Filter Gasket Thickness (inch): 0.36 inch. Fuel Filter Gasket Thickness (mm): 9 mm, Fuel Filter Height (inch): 4 inch. Fuel Filter Height (mm): 103 mm Fuel Filter Inlet Thread Size (inch): 1 inch. - 14.
Product dimensions: Depth x Width x Height: 15.2 x 15.2 x 5.1 cm
Product weight: 678 g
