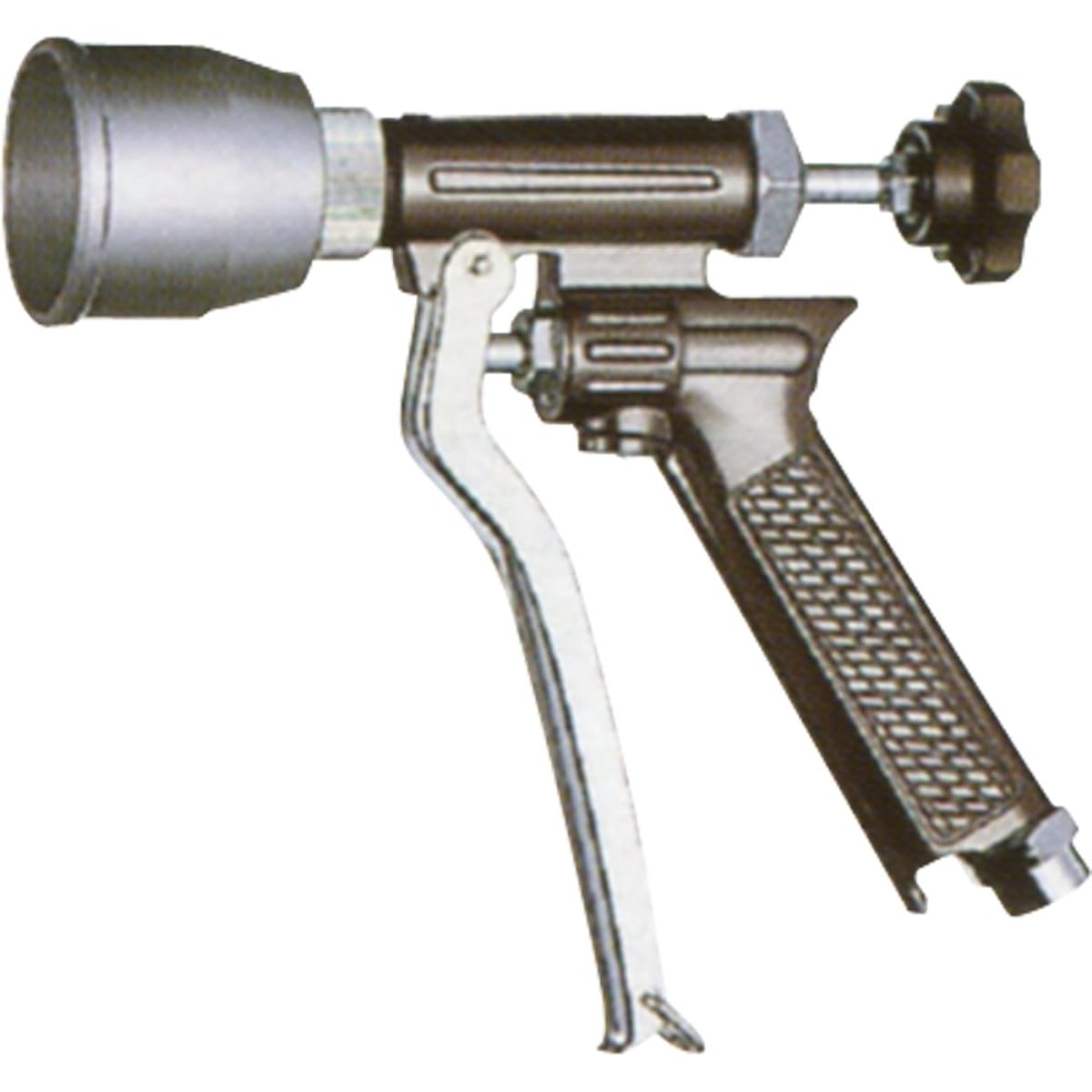

Nagata Manufacturing Hooded Pistol Nozzle FS-1 (G1/4) 1122000

Dynamic injection type: Power Output (kw/rpm/PS/rpm): 1.6/2.2 or more Water absorption (L/min): 15 or more Maximum pressure (MPa): 3.0 Performance: (hole diameter φ1.8) Mounting screw G1/4 [Water volume (L/min)] Pressure (MPa) / Spray condition [rod]: 1.5/6.6, 2.0/7.4, 2.5/8.3, 3.0/8.8 [Water volume (L/min)] Pressure (MPa) / Spray condition [spray-like]: 1.5/4.4, 2.0/4.9, 2.5/5.3, 3.0/5.9 [Reaching distance (m)] Pressure (MPa) / Spray condition [Bar shape]: 1.5/8.5, 2.0/9.0, 2.5/9.5, 3.0/9.5 [Reaching distance (m)] Pressure (MPa) / Spray condition [Spray shape] ]: 1.5/3.6, 2.0/5.0, 2.5/5.5, 3.0/5.5 Increase number of displayed items

Spray pattern: Direct/conical Application: Control of general fruit trees, side dishes, gardens, etc. Lightweight and easy-to-use pistol nozzle that can be operated with one hand. Since it is equipped with a hood, the spray becomes wavy due to air suction, which improves the rate of adhesion to the underside of the leaves and improves work efficiency.


Brand: ‎Nagata Seisakusho Co., Ltd.
Product model number: ‎1122000.0
Package size: ‎20.7 x 18.6 x 5.5 cm; 465 g
Last name on nameplate: ‎Compression
br>Battery included: ‎No
Product weight: ‎465 g
