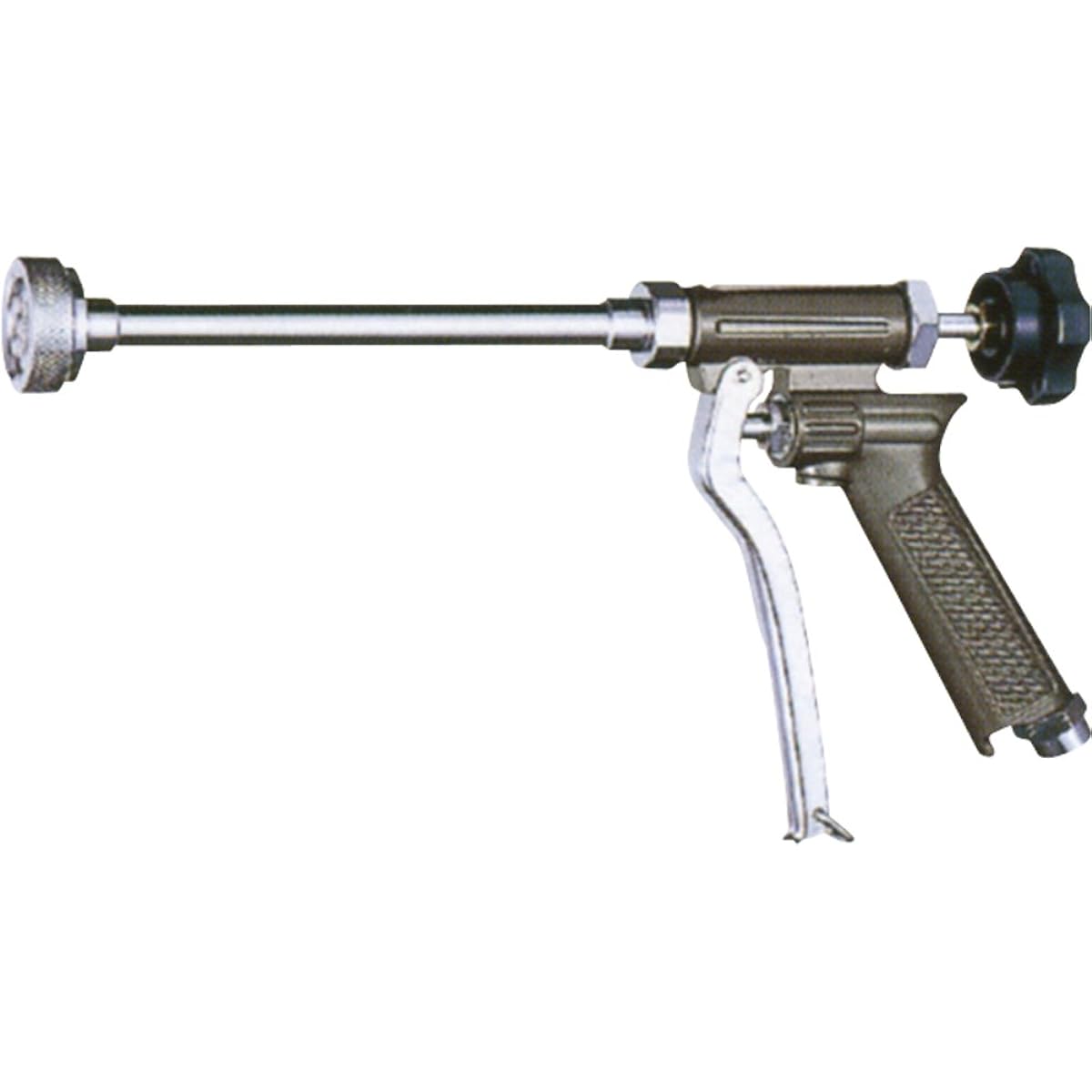

Nagata Seisakusho Pistol Nozzle P-6 (G1/4) 1122300

Dynamic injection type: Power Output (kw/rpm/PS/rpm): 1.6/2.2 or more Water absorption (L/min): 15 or more Maximum pressure (MPa): 3.0 Performance: (pore diameter φ0.8 x 5 holes , φ0.9 x 1 hole) Mounting screw G1/4 [Water volume (L/min)] Pressure (MPa) / Spray condition [rod shape]: 1.5/7.0, 2.0/7.8, 2.5/9.1 [Water volume (L/min) ] Pressure (MPa)/spray condition [spray condition]: 1.5/4.0, 2.0/5.3, 2.5/5.9 [Reaching distance (m)] Pressure (MPa) / Spray condition [rod-like]: 1.5/6.0, 2.0/6.5, 2.5/6.5 [Reaching distance (m)] Pressure (MPa) / Spray condition [spray-like]: 1.5/ 4.5, 2.0/5.0, 2.5/5.5 Increase the number of displayed items

Spray pattern: Direct/cone Applications: Fruit trees, vegetables, standing tree gardening [Features] By spraying at 6 locations from one spray plate, it creates a full cone shape and has a good adhesion rate to the underside of the leaves, increasing work efficiency.


Brand: ‎Nagata Seisakusho Co., Ltd.
Product model number: ‎1122300.0
Package size: ‎37 x 17.8 x 4.8 cm; 495 g
Product weight: ‎495 g
