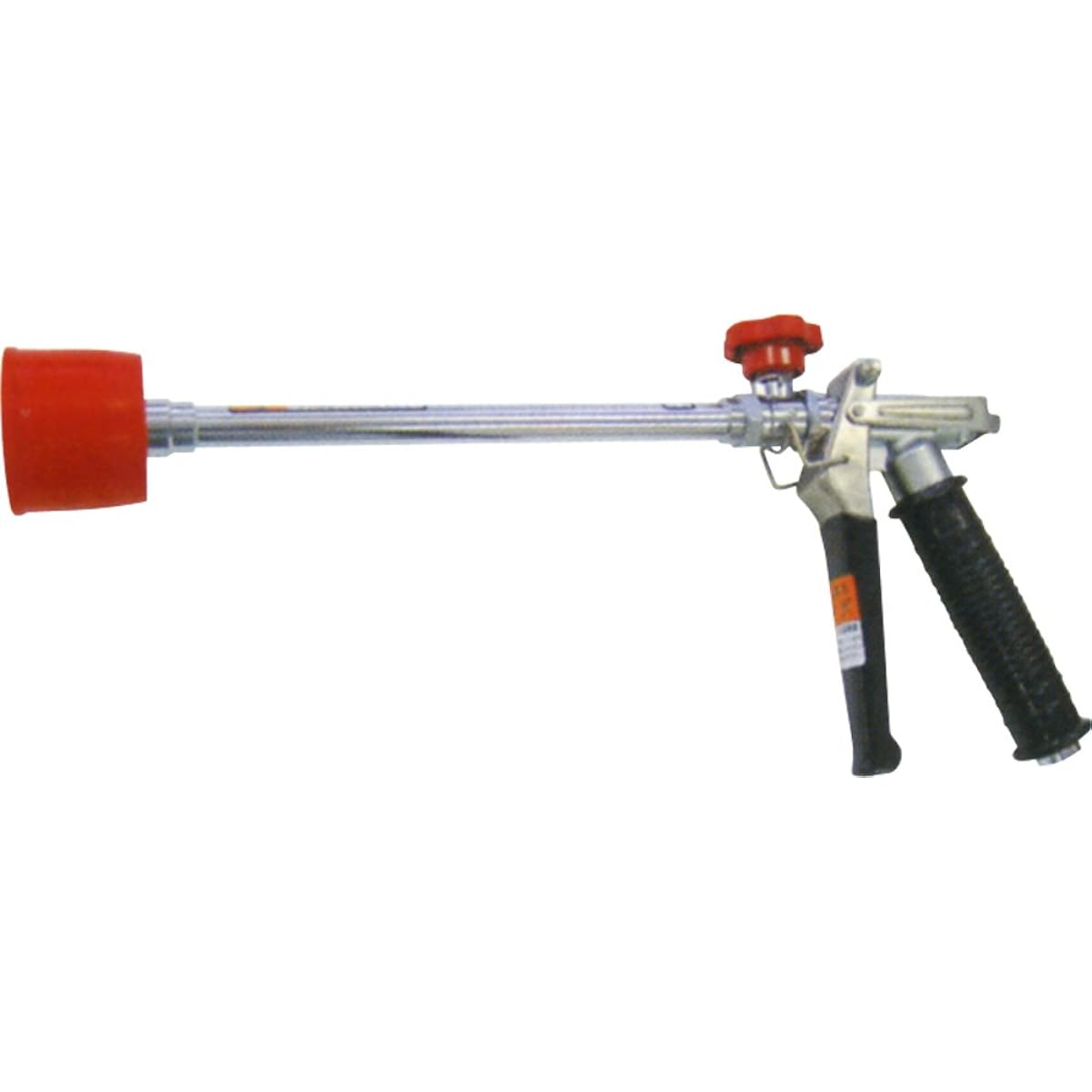

Nagata Manufacturing High Power Nozzle HP-350 (G1/4) 1123500

Dynamic injection type: Power Output (kw/rpm/PS/rpm): 1.6/2.2 or more Water absorption (L/min): 15 or more Maximum pressure (MPa): 3.0 Performance: (hole diameter φ1.8) Mounting screw G1/4 [Water volume (L/min)] Pressure (MPa) / Spray condition [rod]: 1.5/6.0, 2.0/7.0, 2.5/8.0, 3.0/9.0 [Water volume (L/min)] Pressure (MPa) / Spray condition [atomized]: 1.5/3.8, 2.0/4.7, 2.5/5.7, 3.0/6.5 [Reaching distance (m)] Pressure (MPa) / Spray condition [rod shape]: 1.5/9.0, 2.0/9.5, 2.5/10.0, 3.0/10.5 [Reaching distance (m)] Pressure (MPa) / Spray condition [spray shape] ]: 1.5/4.0, 2.0/4.5, 2.5/5.0, 3.0/5.5 Increase number of displayed items

Spray pattern: Direct/Conical/Long distance Application: Vegetables, fruit trees, cleaning, etc. [Features] The HP-350 and P-250 have an unprecedented internal mechanism that allows you to change the spray pattern from straight to conical by rotating the top knob 90 degrees. Since it can be adjusted widely, it is possible to immediately change the spray state to suit the crop, and the straight force sprayed from the spray plate hole is completely open without anything interfering with the water flow, which improves straight-line reachability. This is a nozzle with an excellent new structure.


Brand: ‎Nagata Manufacturing Co., Ltd.
Product model number: ‎1123500.0
Package size: ‎39.37 x 15.49 x 6.1 cm; 560 g
Product weight: ‎560 g
