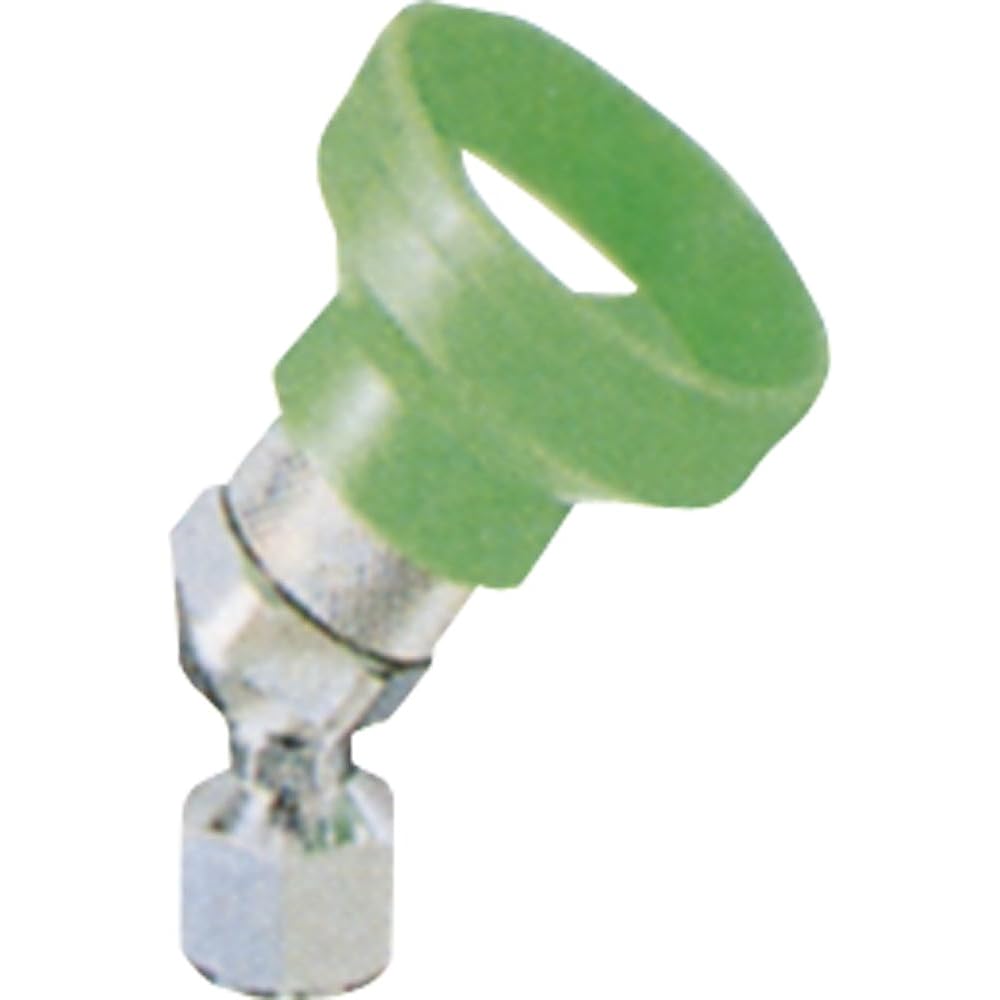

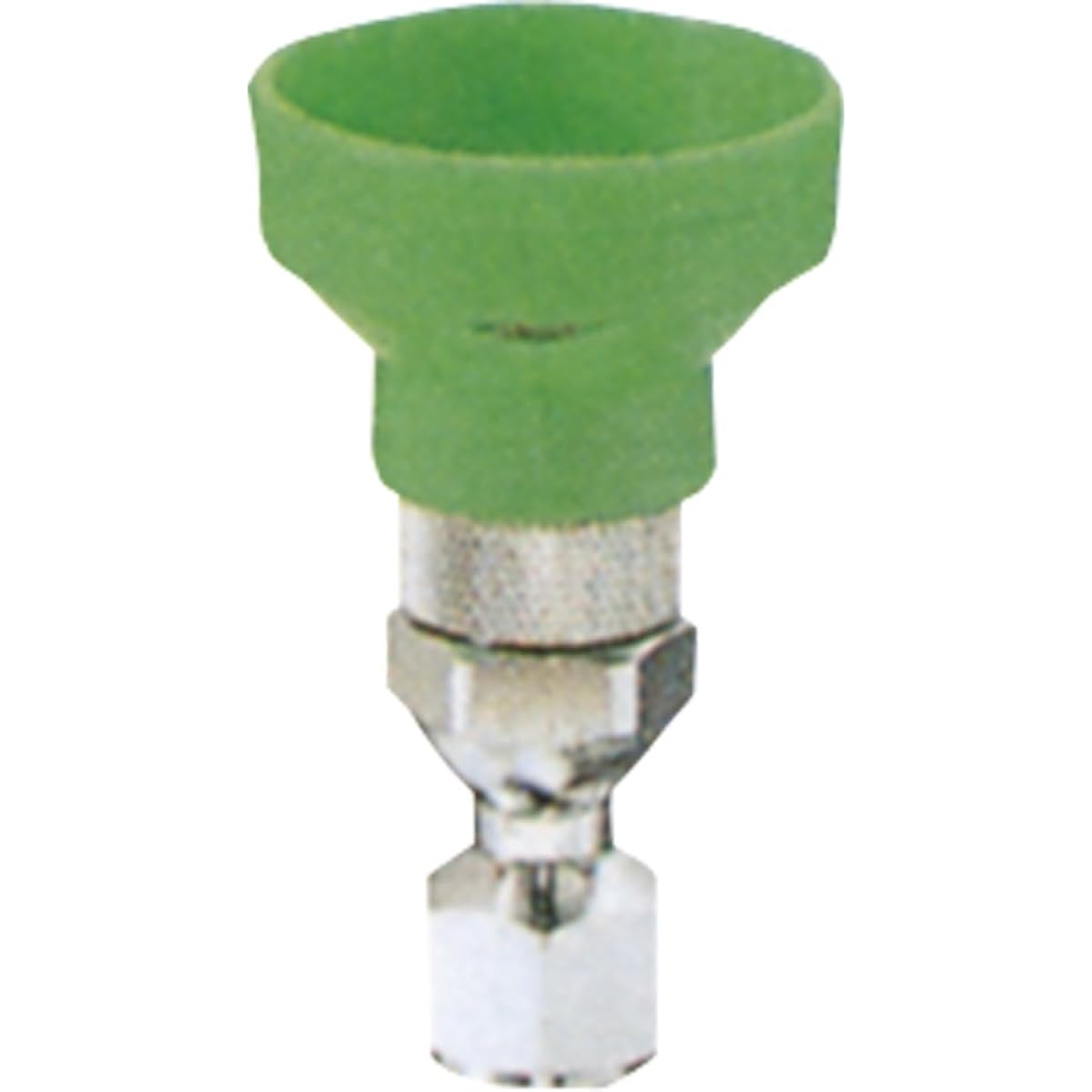

Nagata Seisakusho Mini Quick MC-1 (G1/4) 1125500

Dynamic injection type: Power Output (kw/rpm/PS/rpm): 0.75/1.0 or more Water absorption (L/min): 5 or more Maximum pressure (MPa): 3.0 Performance: (hole diameter φ1.5) Mounting screw G1/4 [Water volume (L/min)] Pressure (MPa) / Spray condition [rod]: 1.0/2.6, 1.5/3.2, 2.0/4.0, 2.5/5.5 [Water volume (L/min)] Pressure (MPa) / Spray condition [spray-like]: 1.0/2.3, 1.5/2.8, 2.0/3.2, 2.5/3.6 [Reach distance (m)] Pressure (MPa) / Spray condition [rod-like]: 1.0/5.5, 1.5/5.5, 2.0/6.0, 2.5/6.5 [Reach distance (m)] Pressure (MPa) / Spray condition [spray shape] ]: 1.0/3.0, 1.5/3.5, 2.0/4.0, 2.5/4.5 Increase number of displayed items

The latest mechanical nozzle that is ultra-lightweight and can swing freely! The spray pattern changes depending on the bending angle of the head. Spray pattern: Direct / Cone Application: For small spray machines only


Brand: ‎Nagata Seisakusho Co., Ltd.
Product model number: ‎1125500.0
Package size: ‎10.2 x 8 x 4.1 cm; 60 g
Product weight: ‎60 g
