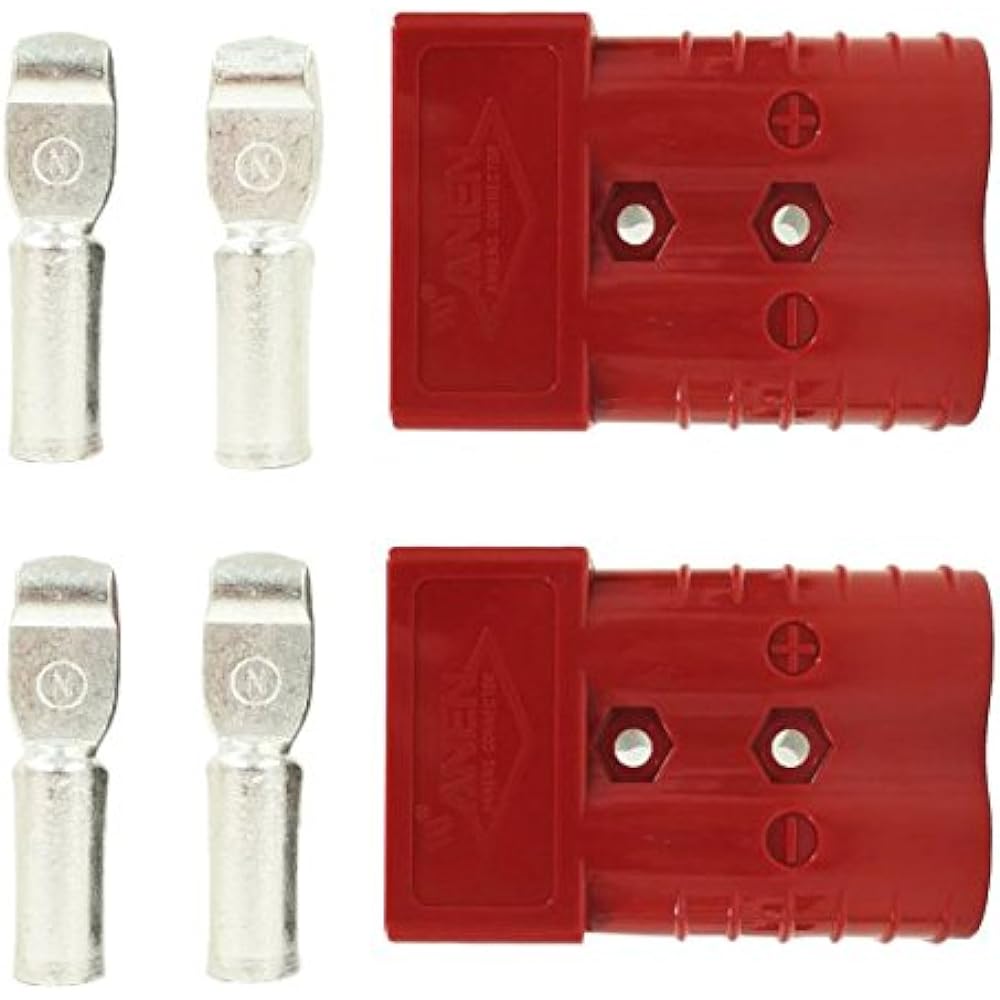

Multipole power connector battery connector (120A/Contents: cover x 2 terminal x 4) SA120B-PA1319G4

・Rated current (A): 100A ・Withstand voltage (V): DC 600V ・Number of poles: 2 ・Applicable cable (SQ): 22

・Operating temperature: -20~+75℃ ・Flammability standard: UL94 V-0 ・Average contact resistance: <140μΩ ・Insulation resistance: 5000MΩ ・Connector connection retention force (lbf): 450N Min [Features] Can be inserted in reverse There is no need to worry about reverse connection, and high current can flow because the terminals are not touched directly. Also, it can be handled safely. *Due to the manufacturer's production line, the color may differ from the photo depending on the arrival time. As long as the model numbers are the same, it is possible to fit them together even if the colors are different.


Manufacturer: ONE GAIN
Brand: ONE GAIN
Model name: SA120B-PA1319G4
Product size: 2.04 x 4.45 x 6.35 cm; 140 g
Product model number: ‎SA120B-PA1319G4
Product dimensions Depth x Width x Height: 20 x 44 x 63 mm
Product weight: 140 g
