Motone Fender Eliminator Kit Speed Twin 1200 Steel Aluminum CBS005

Compatible models: Speed ​​Twin 1200 (19-23) Color: Black Material: Aluminum Mounting bolts included Genuine license plate light used

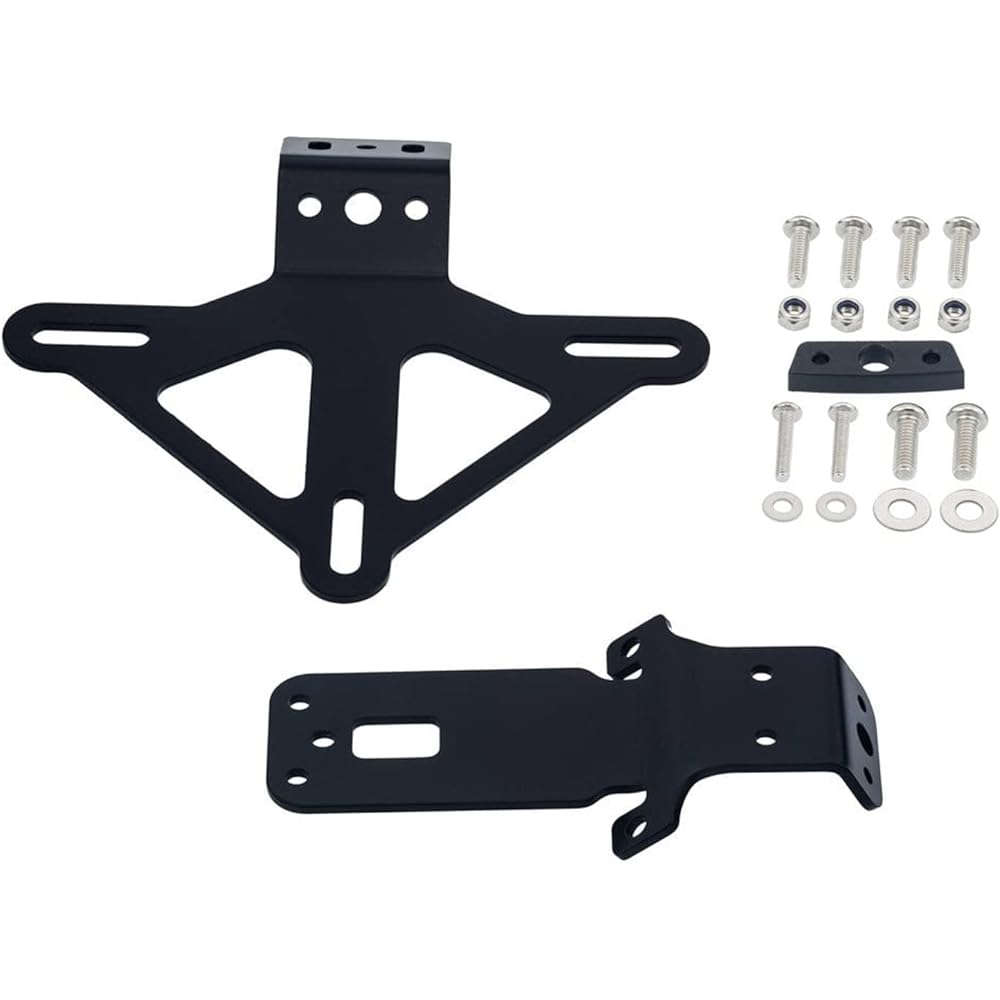

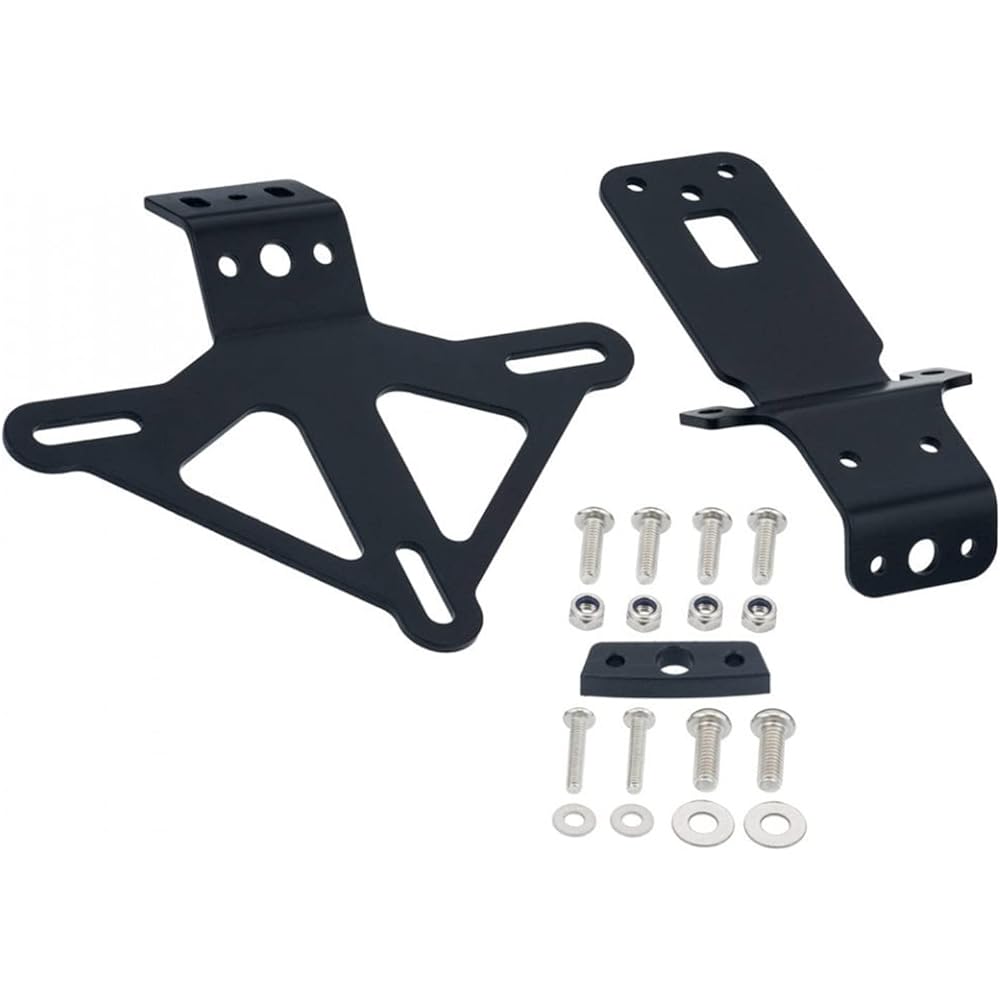

A fender removal kit that tightens around the tail with a short license plate holder. The bracket part is made of lightweight aluminum, and the license plate holder is made of sturdy steel. Comes with a CNC machined blanking plate that allows you to reuse the genuine license plate light. Depending on the model year, there may be extra bolts for the license plate light. Also, please note that the instruction manual is not included. Installation procedure 1. Assemble the top and bottom of the Motone fenderless kit using the two provided M5 bolts and washers. *Bracket part is on top 2. Remove the seat 3. Remove the 4 rear bolts that fix the rear fender 4. Remove the 1 bolt on the back side and remove the license plate holder ASSY 5. Rear of the license plate holder ASSY Remove the bracket and license plate holder (resin part) *Reuse the steel bracket 6. At this time, also remove the license plate light and use the included blanking plate to transfer it to the Motone fenderless kit 7. With the included M5 bolt Attach the Motone fender removal kit to the genuine steel bracket using nuts, M6 bolts and washers. 8. Install the previous fender removal kit ASSY to the vehicle body using the reverse procedure, and transplant the license plate and reflector


Manufacturer: Motone
Brand: Motone
Model name: Fender removal kit
Package size: 16.1 x 16.1 x 4.2 cm; 500 g
Product model Number: ‎CBS005
Position: ‎Back
Color: ‎Black
Certification: ‎On a case-by-case basis
Product weight: ‎500 g
