MOOER Guitar Effector Micro Preamp 017

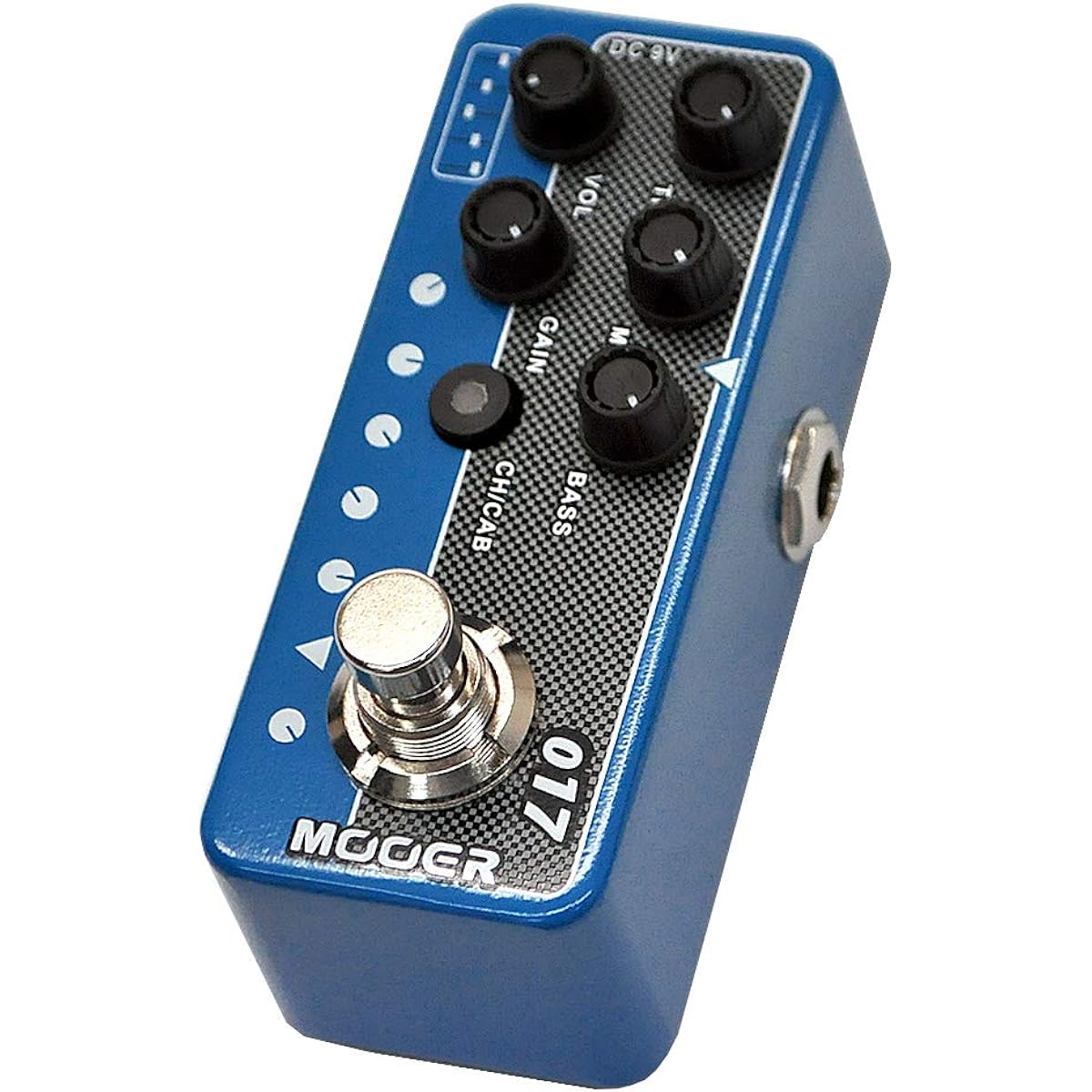

■Guitar effector■Preamp■MESA BOOGIE Mark IV type■Controls ・VOL: Adjusts the volume. ・GAIN: Adjusts the strength of distortion. ・TRE: Adjusts the high frequency output. ・MID: Adjusts the mid frequency output. ・BASS: Adjusts the low frequency output. ・CH/CAB: Push to switch channels. Also, press and hold for 2 seconds to switch the cabinet simulator ON/OFF. ・Foot switch: Has two operating modes. Press and hold the foot switch for 2 seconds to switch operating modes. Active/Bypass: Press the foot switch to switch between active and bypass of the preamp. Can be used like a normal effector. Channel switching: Press the foot switch to switch between two channels. Effective when used as a preamp that is always on. ■Connections ・DCIN: Connect a center negative DC9V adapter. Current consumption is 300mA. ・INPUT: Connect the cable from the instrument. When using as a preamp, it is also effective to connect a distortion effector to the front stage. Product images include images of how the product is used. Please note that items other than those specified in the are not included.
