MONSTER SPORT Oil Sensor Attachment/Meter Swift Sport Alto Works Wagon R Lapin M16A M15A M13A K6A F6B Oil Temperature Oil Pressure/8FFB10
MONSTER SPORT Oil Sensor Attachment/Meter Swift Sport Alto Works Wagon R Lapin M16A M15A M13A K6A F6B Oil Temperature Oil Pressure/8FFB10
Regular price
$143.00 USD
Regular price
Sale price
$143.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
[Compatible models] Swift Sport [ZC33S/ZC31S/32S, HT81S] Swift [ZC11S/71S/72S] Solio [MA15S] Splash [XB32S] [Compatible models 2] Wagon R [MH21S/22S/23S] Lapin [HE21S/22S] ] Palette [MK21S] MR Wagon [MF21S/22S] Cervo [HG21S] Kei [HN22S] Alto Works [HA21S/22S,HB21S] Alto [HA24S] Cervo Mode [CN31S/32S] Wagon R/Stingray [MH34S] Alto Works/ Alto Turbo RS [HA36S] A lightweight and small sandwich block designed in pursuit of a compact shape. Ideal for fitting oil temperature and oil pressure sensors for additional meters.

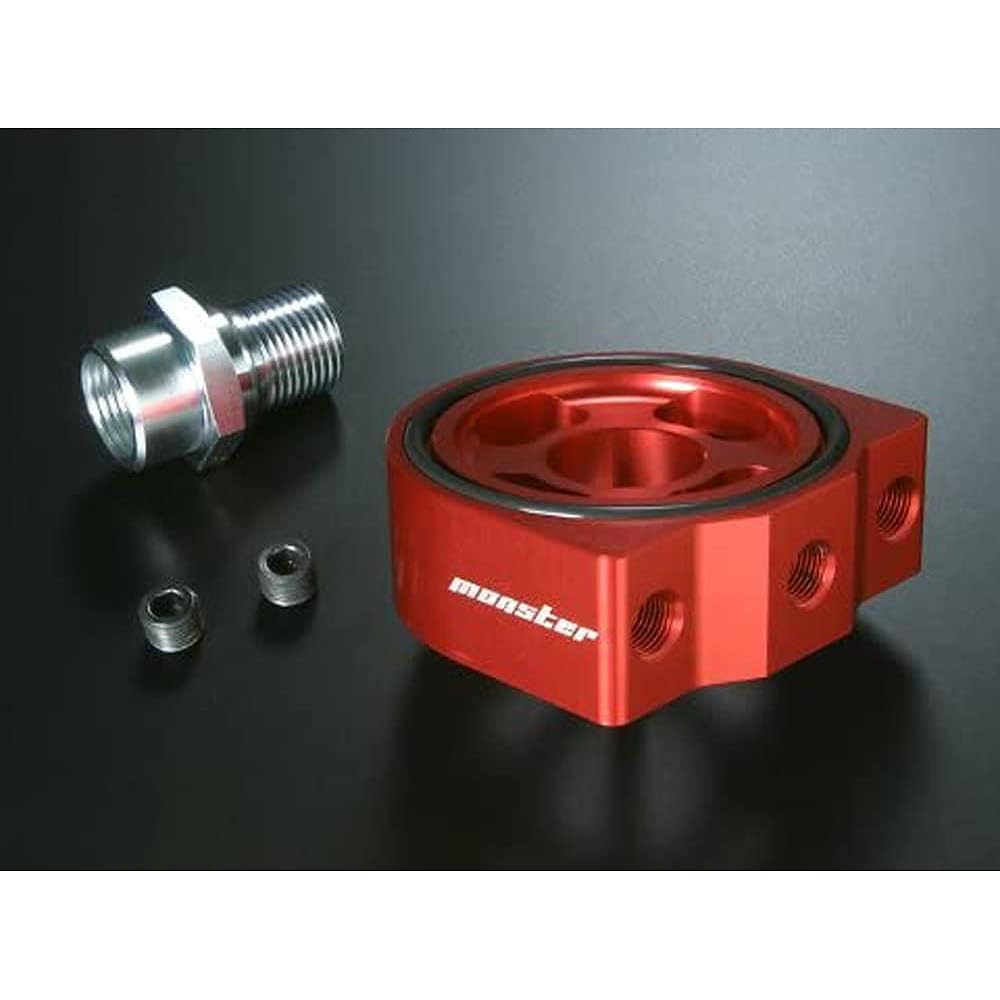

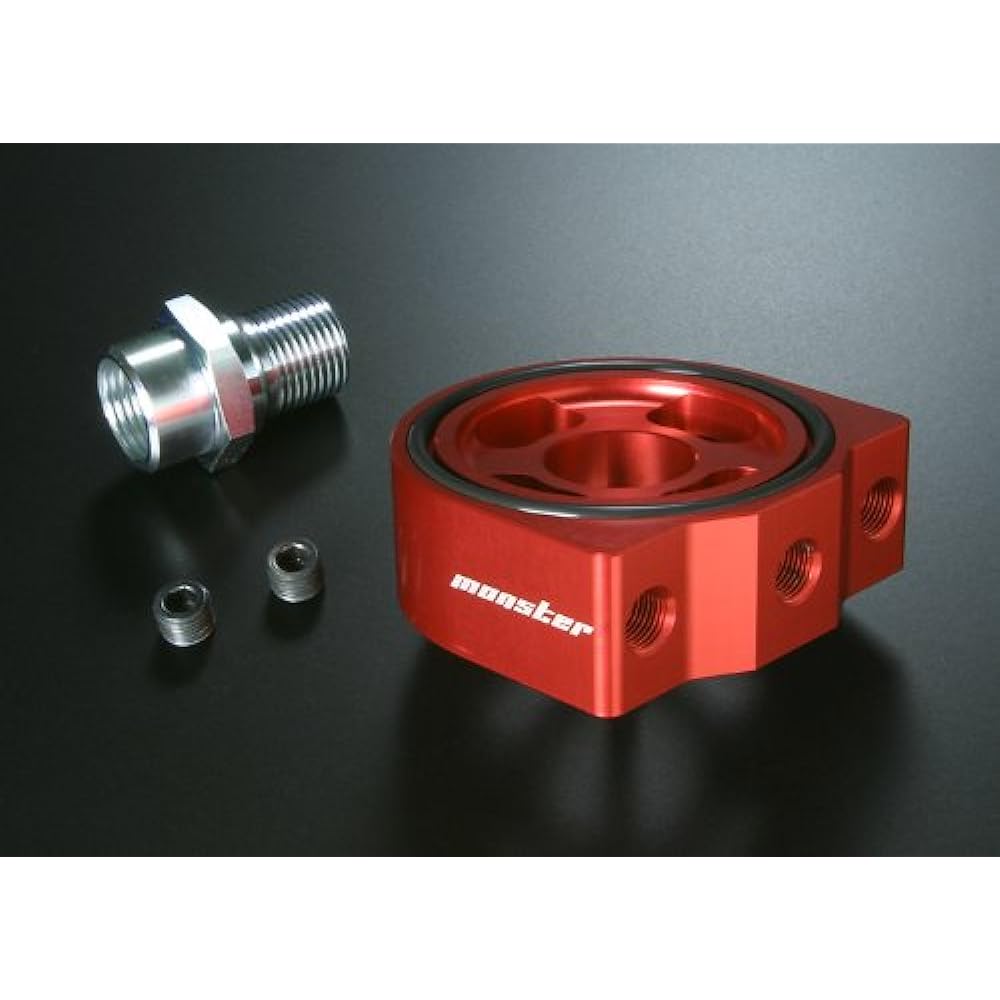

A lightweight and small sandwich block designed in pursuit of a compact shape. Ideal for fitting oil temperature and oil pressure sensors for additional meters. ■3-port design Space-saving design with 3 sensor holes and reduced protrusion when installing the sensor. We can flexibly respond to peripheral parts layouts that vary depending on the vehicle model, presence or absence of a supercharger, and other installed items. *The usable sensor hole positions and the mounting positions of each sensor vary depending on the vehicle model and sensor dimensions, and are limited. Please note that it is not assumed that three or more sensors will be installed. ■25t thin design For vehicles where the oil filter is installed facing downwards, the filter can be moved to the bottom of the vehicle by sandwiching the attachment block. The 25mm thick thin design minimizes the protrusion of the oil filter to the underside of the chassis, ensuring ground clearance. Additionally, in the case of vehicles where the oil filter is installed sideways, maximum clearance to surrounding parts can be secured. ■Can be used with oil filter PFX100 compatible with oil filter Ti100. For some vehicle models, choosing a lower height filter that matches the thread size and filter diameter may provide better peripheral or ground clearance at the expense of filter capacity. [Compatible models] Center bolt size: 3/4-16UNF Swift Sport [ZC33S/Turbo/K14C] *Pay attention to the ground clearance of the oil filter. Swift Sport [ZC31S, ZC32S/NA/M16A] *Pay attention to the ground clearance of the oil filter. Swift Sport [HT81S/NA/M15A] *Pay attention to the ground clearance of the oil filter. Swift [ZC11S/NA/M13A] *Pay attention to the ground clearance of the oil filter. Swift [ZC71S, ZC72S/NA/K12B] *Pay attention to the ground clearance of the oil filter. Solio [MA15S/NA/K12B] *Pay attention to the ground clearance of the oil filter. Splash [XB32S/NA/K12B] *Pay attention to the ground clearance of the oil filter. Wagon R [MH21S, MH22S/Turbo/K6A] Wagon R [MH23S/Turbo/K6A] *Pay attention to the ground clearance of the oil filter. Heat shielding measures required. Wagon R [MH21S, MH22S, MH23S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. Wagon R/Stingray [MH34S/Turbo/R06A] Wagon R/Stingray [MH34S/NA/R06A] *Only the temperature sensor can be installed. Lapin [HE21S, HE22S/Turbo/K6A] Lapin [HE21S, HE22S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. Pallet [MK21S/Turbo/K6A] Pallet [MK21S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. MR Wagon [MF21S, MF22S/Turbo/K6A] MR Wagon [MF21S, MF22S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. Cervo [HG21S/Turbo/K6A] Cervo [HG21S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. Servo mode [CN31S, CN32S/Turbo/F6B] *Pay attention to the clearance between the oil filter and the bumper and frame. Heat shielding measures required. Kei[HN22S/Turbo/K6A] Kei[HN22S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. Alto Works [HA21S, HB21S/Turbo/K6A] *Pay attention to the clearance between the sensor and the frame. Pay attention to the ground clearance of the oil filter. Heat shielding measures required. Alto Works [HA22S/Turbo/K6A] Alto [HA24S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. Alto Works/Alto Turbo RS [HA36S/Turbo/R06A] * "Compatible car model" information is the vehicle used when confirming or considering the compatibility of this product. *Even vehicles that are not listed in the "Compatible Vehicles" information will be compatible if the installation conditions are met. * Even if the vehicle is listed in the "Compatible model" information, the grade, model year, vehicle specifications, or assembly may differ.
Manufacturer: MONSTER SPORT Brand: MONSTER SPORT Model name: 8FFB10 Packing size: 17.2 x 11.4 x 9.3 cm; 308 g >Product model number: 8FFB10
Certification: Please contact us if you have any questions
Product weight: 308 g
A lightweight and small sandwich block designed in pursuit of a compact shape. Ideal for fitting oil temperature and oil pressure sensors for additional meters. ■3-port design Space-saving design with 3 sensor holes and reduced protrusion when installing the sensor. We can flexibly respond to peripheral parts layouts that vary depending on the vehicle model, presence or absence of a supercharger, and other installed items. *The usable sensor hole positions and the mounting positions of each sensor vary depending on the vehicle model and sensor dimensions, and are limited. Please note that it is not assumed that three or more sensors will be installed. ■25t thin design For vehicles where the oil filter is installed facing downwards, the filter can be moved to the bottom of the vehicle by sandwiching the attachment block. The 25mm thick thin design minimizes the protrusion of the oil filter to the underside of the chassis, ensuring ground clearance. Additionally, in the case of vehicles where the oil filter is installed sideways, maximum clearance to surrounding parts can be secured. ■Can be used with oil filter PFX100 compatible with oil filter Ti100. For some vehicle models, choosing a lower height filter that matches the thread size and filter diameter may provide better peripheral or ground clearance at the expense of filter capacity. [Compatible models] Center bolt size: 3/4-16UNF Swift Sport [ZC33S/Turbo/K14C] *Pay attention to the ground clearance of the oil filter. Swift Sport [ZC31S, ZC32S/NA/M16A] *Pay attention to the ground clearance of the oil filter. Swift Sport [HT81S/NA/M15A] *Pay attention to the ground clearance of the oil filter. Swift [ZC11S/NA/M13A] *Pay attention to the ground clearance of the oil filter. Swift [ZC71S, ZC72S/NA/K12B] *Pay attention to the ground clearance of the oil filter. Solio [MA15S/NA/K12B] *Pay attention to the ground clearance of the oil filter. Splash [XB32S/NA/K12B] *Pay attention to the ground clearance of the oil filter. Wagon R [MH21S, MH22S/Turbo/K6A] Wagon R [MH23S/Turbo/K6A] *Pay attention to the ground clearance of the oil filter. Heat shielding measures required. Wagon R [MH21S, MH22S, MH23S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. Wagon R/Stingray [MH34S/Turbo/R06A] Wagon R/Stingray [MH34S/NA/R06A] *Only the temperature sensor can be installed. Lapin [HE21S, HE22S/Turbo/K6A] Lapin [HE21S, HE22S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. Pallet [MK21S/Turbo/K6A] Pallet [MK21S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. MR Wagon [MF21S, MF22S/Turbo/K6A] MR Wagon [MF21S, MF22S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. Cervo [HG21S/Turbo/K6A] Cervo [HG21S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. Servo mode [CN31S, CN32S/Turbo/F6B] *Pay attention to the clearance between the oil filter and the bumper and frame. Heat shielding measures required. Kei[HN22S/Turbo/K6A] Kei[HN22S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. Alto Works [HA21S, HB21S/Turbo/K6A] *Pay attention to the clearance between the sensor and the frame. Pay attention to the ground clearance of the oil filter. Heat shielding measures required. Alto Works [HA22S/Turbo/K6A] Alto [HA24S/NA/K6A] *Only oil temperature sensor can be installed. The oil pressure sensor cannot be installed because the installation space is narrow and there is no flexibility. Alto Works/Alto Turbo RS [HA36S/Turbo/R06A] * "Compatible car model" information is the vehicle used when confirming or considering the compatibility of this product. *Even vehicles that are not listed in the "Compatible Vehicles" information will be compatible if the installation conditions are met. * Even if the vehicle is listed in the "Compatible model" information, the grade, model year, vehicle specifications, or assembly may differ.
Manufacturer: MONSTER SPORT Brand: MONSTER SPORT Model name: 8FFB10 Packing size: 17.2 x 11.4 x 9.3 cm; 308 g >Product model number: 8FFB10
Certification: Please contact us if you have any questions
Product weight: 308 g
