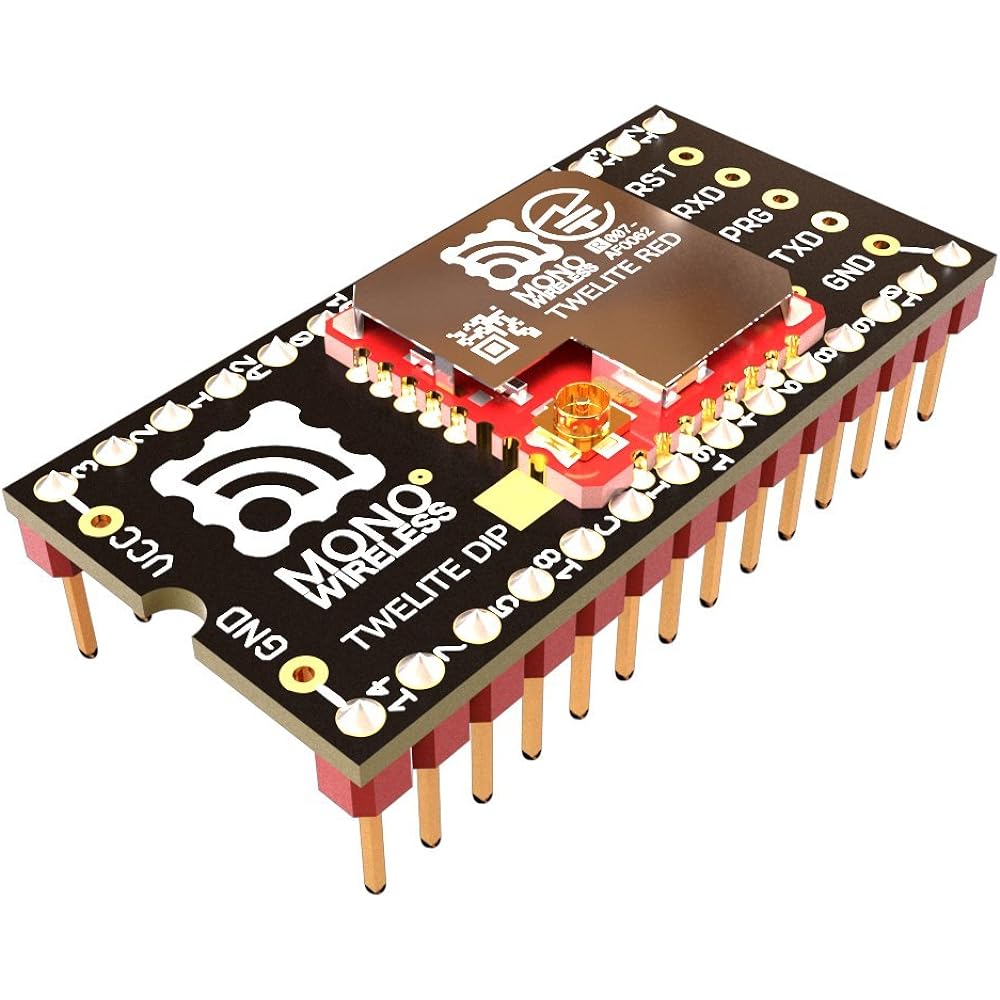

Mono Wireless Wireless Microcomputer High Output Type TWELITE RED DIP Coaxial Connector with Pin Header
Mono Wireless Wireless Microcomputer High Output Type TWELITE RED DIP Coaxial Connector with Pin Header
Regular price
$36.00 USD
Regular price
Sale price
$36.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Quantity: 1 piece
Features/Catchphrase - The TWELITE DIP series is an ultra-compact wireless microcomputer module TWELITE-Twilight in the form of a 2.54mm pitch 28-pin (600mil) DIP type IC. Other than the pin arrangement, it is the same as TWELITE, but the DIP shape makes it easier to do electronic work.・The TWELITE DIP series includes the standard output type (1mW class) TWELITE BLUE and the high output type (10mW class) TWELITE RED, and each comes in types with and without matchstick antennas. Masu.・TWELITE has a built-in 32-bit microcontroller and has digital/analog/serial input/output, and can connect various sensors and LEDs to perform wireless communication without the need for an external control microcontroller. .・This product is a high output TWELITE RED DIP type with a pin header mounted, but an antenna is not included.・Main specifications ・Software: "Super easy! TWELITE standard app" installed ・Wireless method: 2.4GHz, IEEE802.15.4 compliant ・Supports point-to-point communication and relay function with TWELITE NET ・Operating voltage: 2.3V to 3.6 V ・Communication speed: 250kbps (max) ・Transmission output: 9.14dBm ・Reception sensitivity: -96dBm ・Transmission current: 23.3mA (when outputting 9.14dBm), 14.0mA (when outputting 3.0dBm) ・Reception current: 14.7mA ・Used Temperature range: -30 to +85℃ ・Radio certification (technical compliance): ARIB STD-T66 ・External size: 35.7 x 17.7 x 3.5mm Notes *This is a product for businesses*
Manufacturer: Mono Wireless
Part number: MW-R-DI-U
Product weight: 3.2 g
Packing size: 12.8 x 9 x 2.8 cm; 3.2 g
Size: Coaxial connector (antenna sold separately)
Color: High output RED - Red
Style: Pin header installed
Power type: Battery operated
Battery included: No
Battery usage: Yes
Features/Catchphrase - The TWELITE DIP series is an ultra-compact wireless microcomputer module TWELITE-Twilight in the form of a 2.54mm pitch 28-pin (600mil) DIP type IC. Other than the pin arrangement, it is the same as TWELITE, but the DIP shape makes it easier to do electronic work.・The TWELITE DIP series includes the standard output type (1mW class) TWELITE BLUE and the high output type (10mW class) TWELITE RED, and each comes in types with and without matchstick antennas. Masu.・TWELITE has a built-in 32-bit microcontroller and has digital/analog/serial input/output, and can connect various sensors and LEDs to perform wireless communication without the need for an external control microcontroller. .・This product is a high output TWELITE RED DIP type with a pin header mounted, but an antenna is not included.・Main specifications ・Software: "Super easy! TWELITE standard app" installed ・Wireless method: 2.4GHz, IEEE802.15.4 compliant ・Supports point-to-point communication and relay function with TWELITE NET ・Operating voltage: 2.3V to 3.6 V ・Communication speed: 250kbps (max) ・Transmission output: 9.14dBm ・Reception sensitivity: -96dBm ・Transmission current: 23.3mA (when outputting 9.14dBm), 14.0mA (when outputting 3.0dBm) ・Reception current: 14.7mA ・Used Temperature range: -30 to +85℃ ・Radio certification (technical compliance): ARIB STD-T66 ・External size: 35.7 x 17.7 x 3.5mm Notes *This is a product for businesses*
Manufacturer: Mono Wireless
Part number: MW-R-DI-U
Product weight: 3.2 g
Packing size: 12.8 x 9 x 2.8 cm; 3.2 g
Size: Coaxial connector (antenna sold separately)
Color: High output RED - Red
Style: Pin header installed
Power type: Battery operated
Battery included: No
Battery usage: Yes
