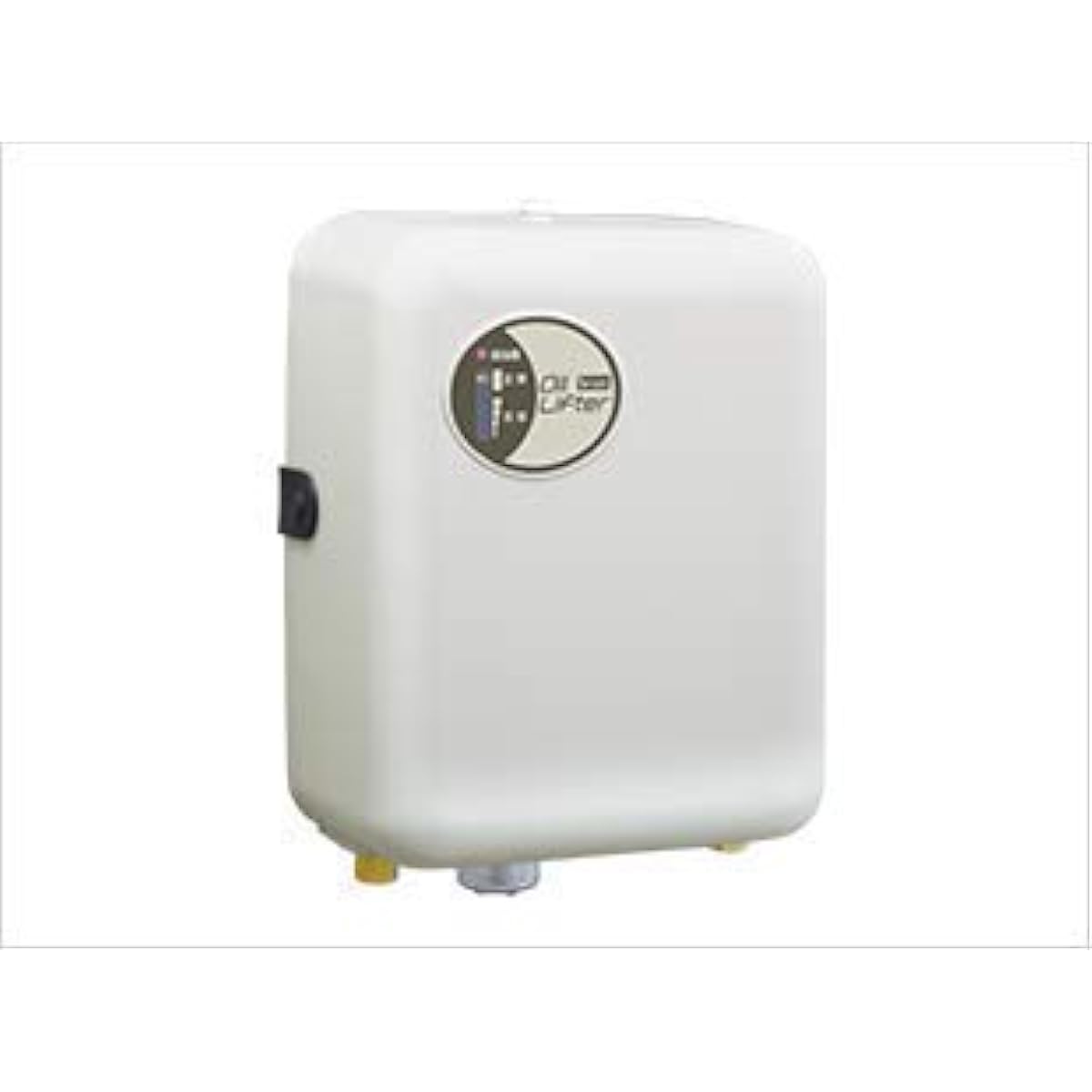

MK Seiko Oil Lifter Oil Server Kerosene Automatic Supply Device EP-204

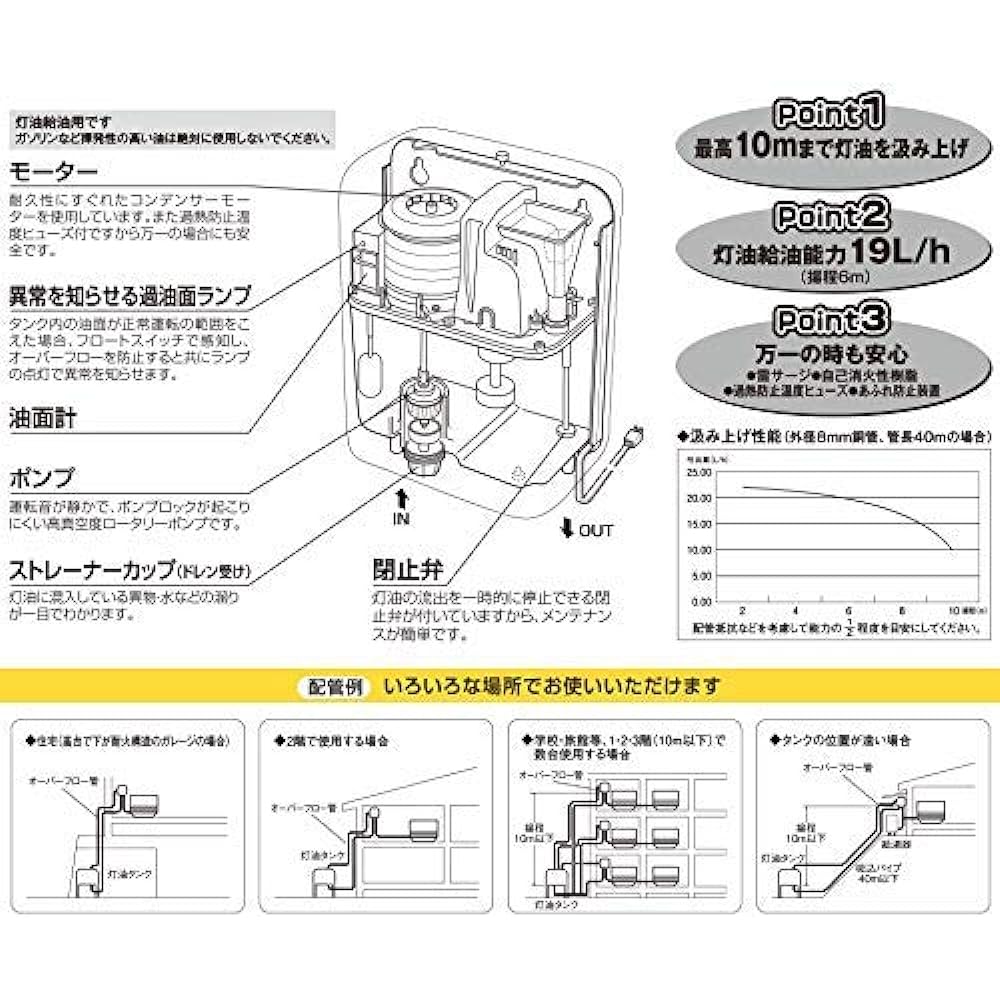

Product number EP-204 Supply fuel and supply method Kerosene (JIS No. 1 kerosene) Head type Power supply AC100V 50/60Hz Power consumption 23W (50Hz) / 22W (60Hz) Supply capacity 19L/h (at 6m lift) Lifting height Maximum lifting height 10m Tank contents Volume 2.2L Oil level control method Pump ON/OFF using float switch (electronic control) Safety devices Power supply fuse, discharge port shutoff valve, lightning surge protection (varistor), overflow prevention device (float switch), motor overheat prevention device (temperature Fuse), overflow pipe can be installed (outer diameter 10 mm) External dimensions Width 224 x Depth 114 x Height 304 mm Weight Approx. 3.5 kg Piping method 8 mm outer diameter copper pipe connection with flareless joint Accessories Pipe fitting nipple x 2 / Washer x 3 / Rubber seat x 3 / Wood screw x 3 / Collar x 2 / Suction test tool x 1 / Instruction manual (warranty included)


Manufacturer: ‎MK Seiko
Package size: ‎34.5 x 29.2 x 18.9 cm
Packing weight: 4.11 kg
Battery usage: No
Brand name: MK Seiko
