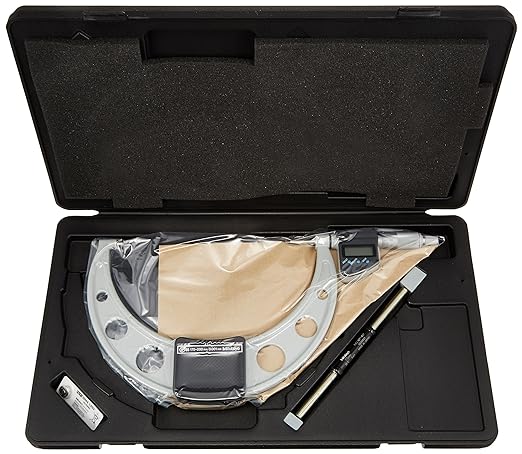

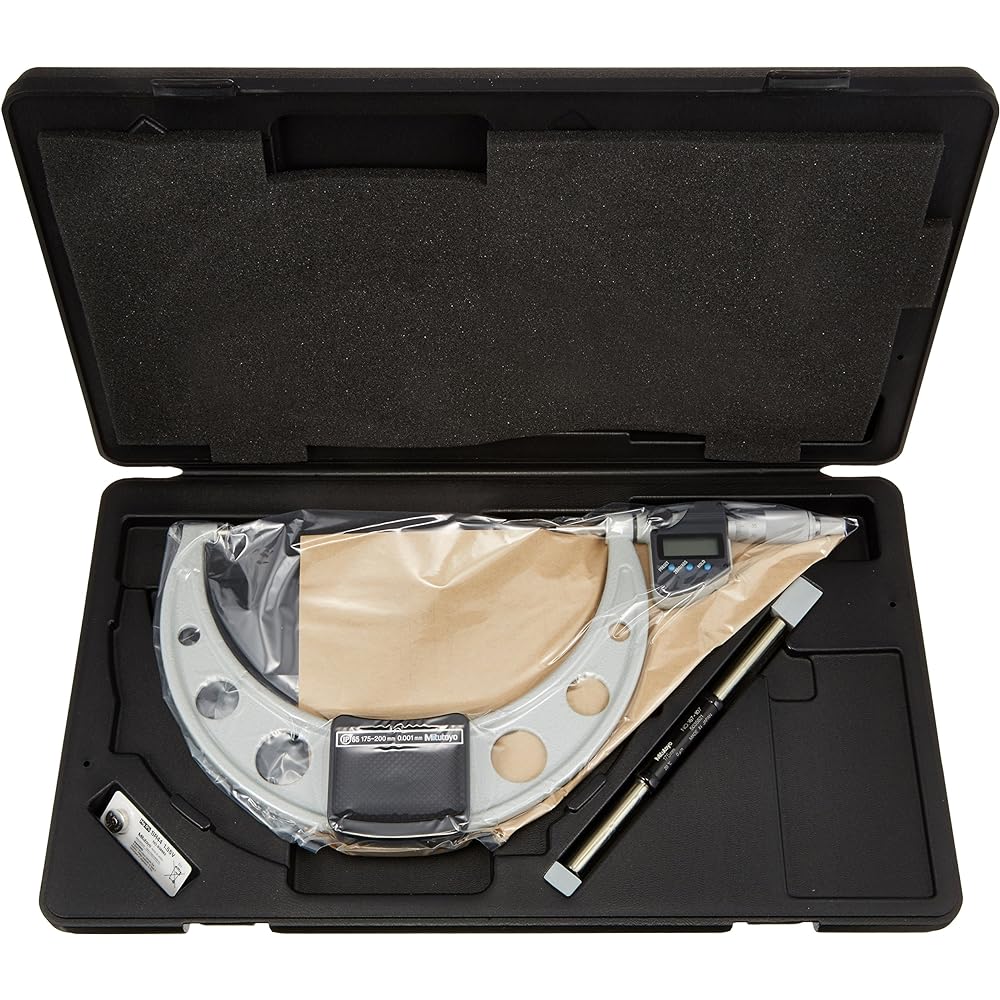

Mitutoyo Digimatic Micro 293-253-30 MDC-200MX
Mitutoyo Digimatic Micro 293-253-30 MDC-200MX
Regular price
$361.00 USD
Regular price
Sale price
$361.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Measuring range (mm): 175-200
[Features]・Achieves the world's highest level of high performance.・Achieves a battery life of approximately 2.4 years, reducing the hassle of battery replacement. - The frame cover and surface panel have a non-slip shape (convex shape) designed for hand-held measurements. - Ratchet thimble improves operability with one hand. - All plastic parts are made of oil-resistant materials. - Models with measurement data output function (MDC-MX/MXT) can configure statistical process control systems and measurement systems. - Convenient interfaces and input tools are available that allow you to convert measurement data into keyboard signals and input them directly into cells of commercially available spreadsheet software.・There are two types of constant pressure devices: ratchet stop type and ratchet thimble type. [Specifications]・Measurement range*1 (mm): 175 to 200・Minimum display amount (mm): 0.001・Instrumental error (μm): ±3・Parallelism (μm): [2+Maximum measurement length (mm)/ 100] (round down) - Constant pressure device: Ratchet stop - Quantization error: ±1 count not included - Flatness: 0.3 μm - Protection class: IP65 (IEC60529) - Measuring force: 5 to 10 N (Ratchet thimble is 7 to 12 N )・Power supply: 1 button-type silver oxide battery SR44 (No. 938882) included as standard (The standard included button-type silver oxide battery is for monitor use)・Battery life: Approximately 2.4 years under normal usage conditions (MDC-MX /MXT/PX/PXT)・Position detection method: Electromagnetic induction rotary encoder・Measurement surface: With cemented carbide tip・Measurement data output function: Available [Notes]・Free origin setting for products with a maximum measurement length of 125 mm or more This is a preset type.・Rust prevention treatment is required after use.
Manufacturer: Mitutoyo
Part number: 293-253-30
Product weight: 2.18 Kilograms
Package size: 44.4 x 26.8 x 6.6 cm; 2.18 kg
Size: Measurement range (mm): 175~200
Thickness: 34.5 cm
Accessories: Button silver oxide battery SR44 (No, 938882) 1 piece
br>Battery included: Yes
Battery used: No
Battery type: Silver oxide
[Features]・Achieves the world's highest level of high performance.・Achieves a battery life of approximately 2.4 years, reducing the hassle of battery replacement. - The frame cover and surface panel have a non-slip shape (convex shape) designed for hand-held measurements. - Ratchet thimble improves operability with one hand. - All plastic parts are made of oil-resistant materials. - Models with measurement data output function (MDC-MX/MXT) can configure statistical process control systems and measurement systems. - Convenient interfaces and input tools are available that allow you to convert measurement data into keyboard signals and input them directly into cells of commercially available spreadsheet software.・There are two types of constant pressure devices: ratchet stop type and ratchet thimble type. [Specifications]・Measurement range*1 (mm): 175 to 200・Minimum display amount (mm): 0.001・Instrumental error (μm): ±3・Parallelism (μm): [2+Maximum measurement length (mm)/ 100] (round down) - Constant pressure device: Ratchet stop - Quantization error: ±1 count not included - Flatness: 0.3 μm - Protection class: IP65 (IEC60529) - Measuring force: 5 to 10 N (Ratchet thimble is 7 to 12 N )・Power supply: 1 button-type silver oxide battery SR44 (No. 938882) included as standard (The standard included button-type silver oxide battery is for monitor use)・Battery life: Approximately 2.4 years under normal usage conditions (MDC-MX /MXT/PX/PXT)・Position detection method: Electromagnetic induction rotary encoder・Measurement surface: With cemented carbide tip・Measurement data output function: Available [Notes]・Free origin setting for products with a maximum measurement length of 125 mm or more This is a preset type.・Rust prevention treatment is required after use.
Manufacturer: Mitutoyo
Part number: 293-253-30
Product weight: 2.18 Kilograms
Package size: 44.4 x 26.8 x 6.6 cm; 2.18 kg
Size: Measurement range (mm): 175~200
Thickness: 34.5 cm
Accessories: Button silver oxide battery SR44 (No, 938882) 1 piece
br>Battery included: Yes
Battery used: No
Battery type: Silver oxide
