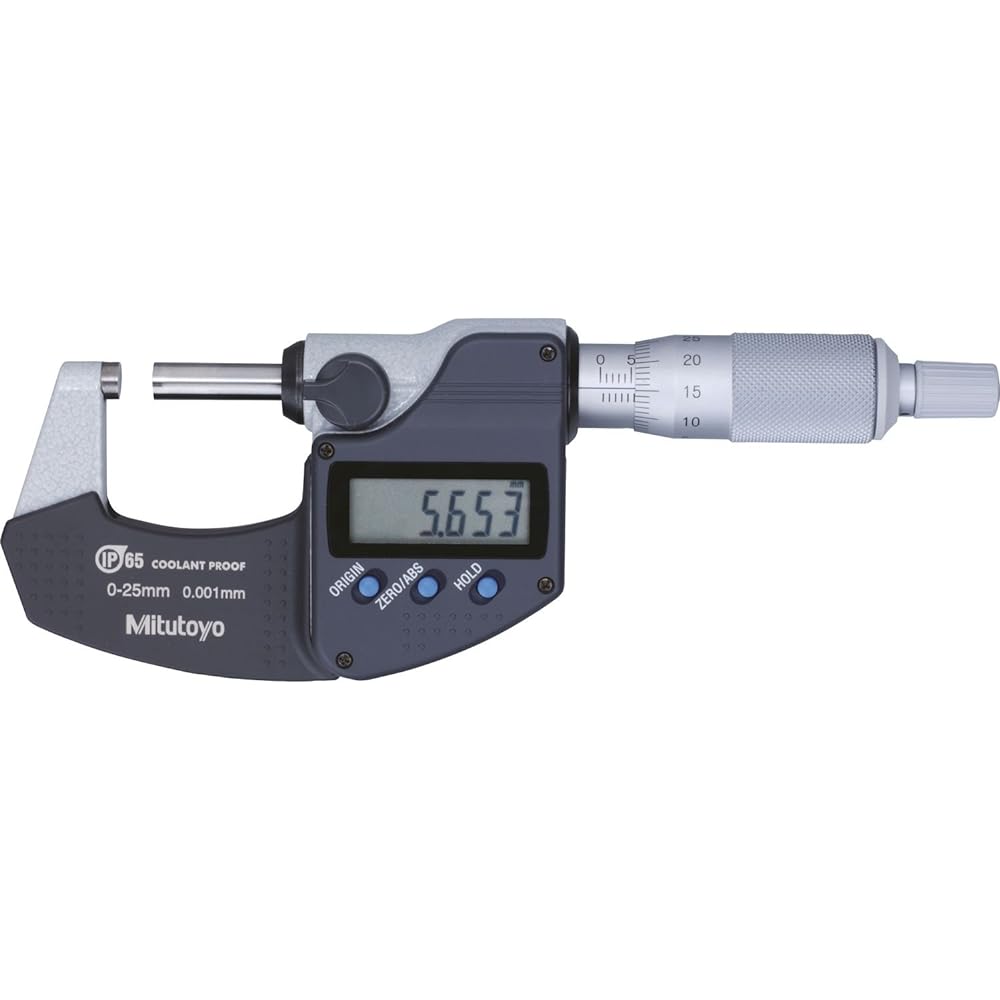

Mitutoyo Digimatic Micrometer 293-240-30 MDC-25PX

Measuring range (mm): 0~25

[Specifications]・Measurement range (mm): 0~25・Instrument error (μm): ±1・Parallelism (μm): 1・Constant pressure device: Ratchet stop・Minimum display amount (mm): 0.001・Quantization error: ±1 count not included・Flatness (μm): 0.3・Protection grade: IP65 (IEC60529)・Spiritual power (N): 5~10N・Power source: 1 button-type silver oxide battery SR44 (No. 938882)・Battery life : Approximately 2 to 4 years (during normal use)・Position detection method: Electromagnetic induction rotary encoder [Features]・Achieves the highest level of high performance in the world. - Achieves a battery life of approximately 2 to 4 years, reducing the hassle of battery replacement. - The frame cover and surface panel have a non-slip shape (convex shape) designed for hand-held measurements. - All plastic parts are made of oil-resistant materials. - Models with measurement data output function (MDC-MX/MXT) can configure statistical process control systems and measurement systems. - Convenient interfaces and input tools are available that allow you to convert measurement data into keyboard signals and input them directly into cells of commercially available spreadsheet software.・There are two types of constant pressure devices: ratchet stop type and ratchet thimble type. [Note] - The standard accessory button type silver oxide battery is for monitor use.・Although the protection level is IP65, rust prevention treatment is required after use.


Manufacturer: Mitutoyo
Part number: 293-240-30
Product weight: 270 g
Product size: 20.6 x 11.4 x 3.8 cm; 270 g
Battery: ‎1 alkaline button battery Batteries (included)
Discontinued by the manufacturer: ‎No
Size: ‎Measurement range: 0~25mm
Thickness: ‎34.5 cm
Power type: ‎Battery type
Quantity: ‎1
Accessories: ‎Button-type silver oxide battery SR44 (No, 938882) 1 piece
Battery included: ‎Yes
br>Battery usage: ‎Yes
Battery type: ‎Silver oxide
Product dimensions (Length x Width x Height): ‎20.6 x 11.4 x 3.8 cm
