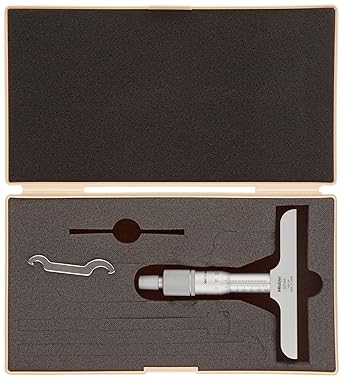

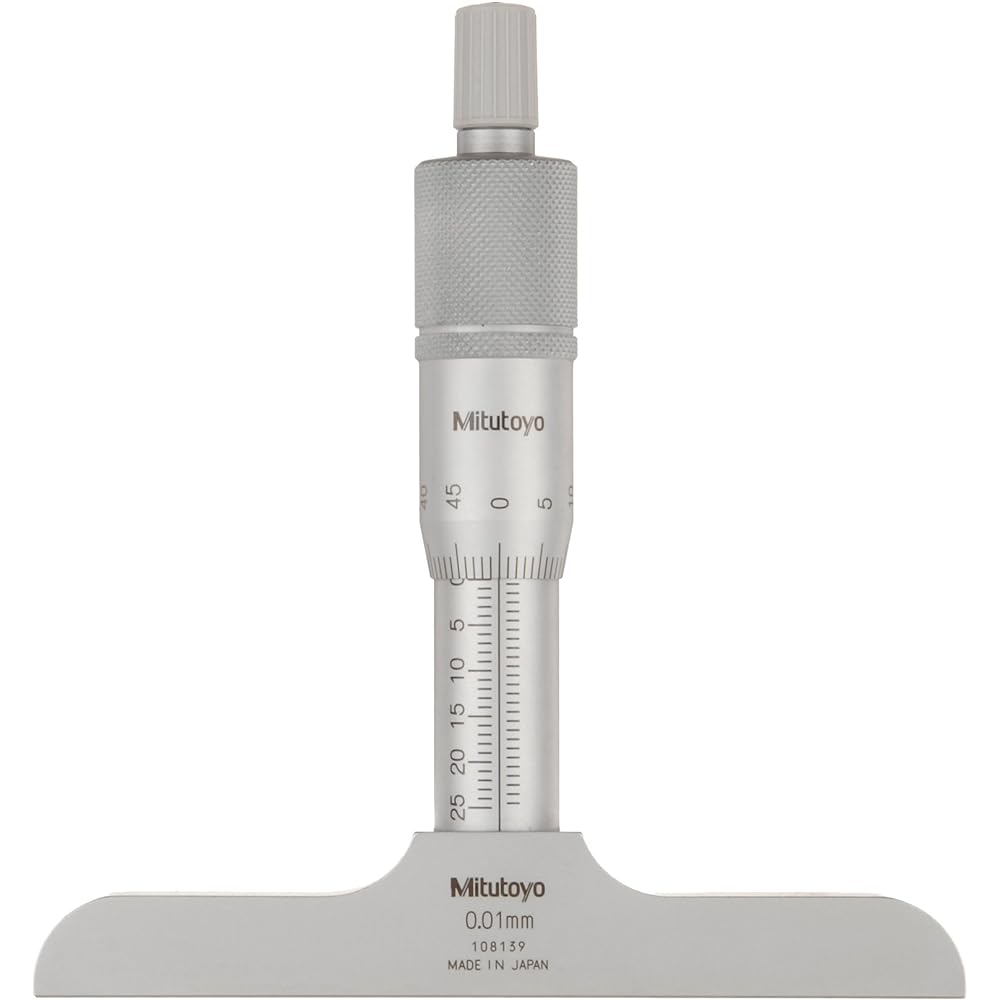

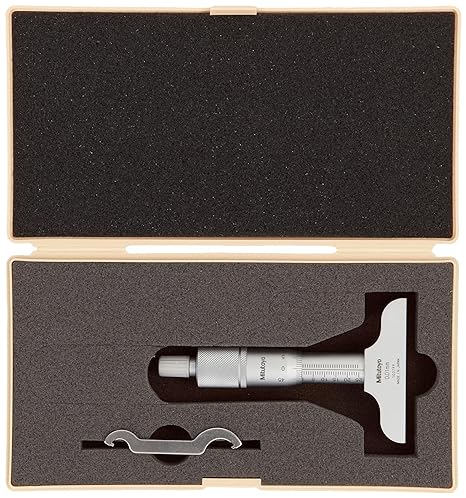

Mitutoyo Micrometer DMS100-25W 128-104

Measuring range (mm): 0~25

[Features]・Spindle diameter: φ4 mm・With clamp・Measurement surface with cemented carbide tip・With constant pressure device [Specifications]・Measurement range (mm): 0 to 25・Graduation (mm): 0.01・Base surface dimensions ( mm): 101.6×16・Spindle diameter: φ4 mm・Clamp: Yes・Measurement surface: With cemented carbide tip・Constant pressure device: Yes・Accuracy: Instrument error ±3 μm・Flatness of reference surface: Length of reference surface 63.5 mm/1.3μm, reference surface length 101.6mm/2μm, measurement surface flatness: 0.3μm


Manufacturer: Mitutoyo
Part number: 128-104
br>Item weight: 4.54 g
Package size: 24.5 x 13.6 x 3.4 cm; 4.54 g
Discontinued by the manufacturer: ‎No
Pattern: ‎DMS100-25W 128- 104
Thickness: 34.5 cm
Accessories: None
Battery included: No
Battery usage: No
