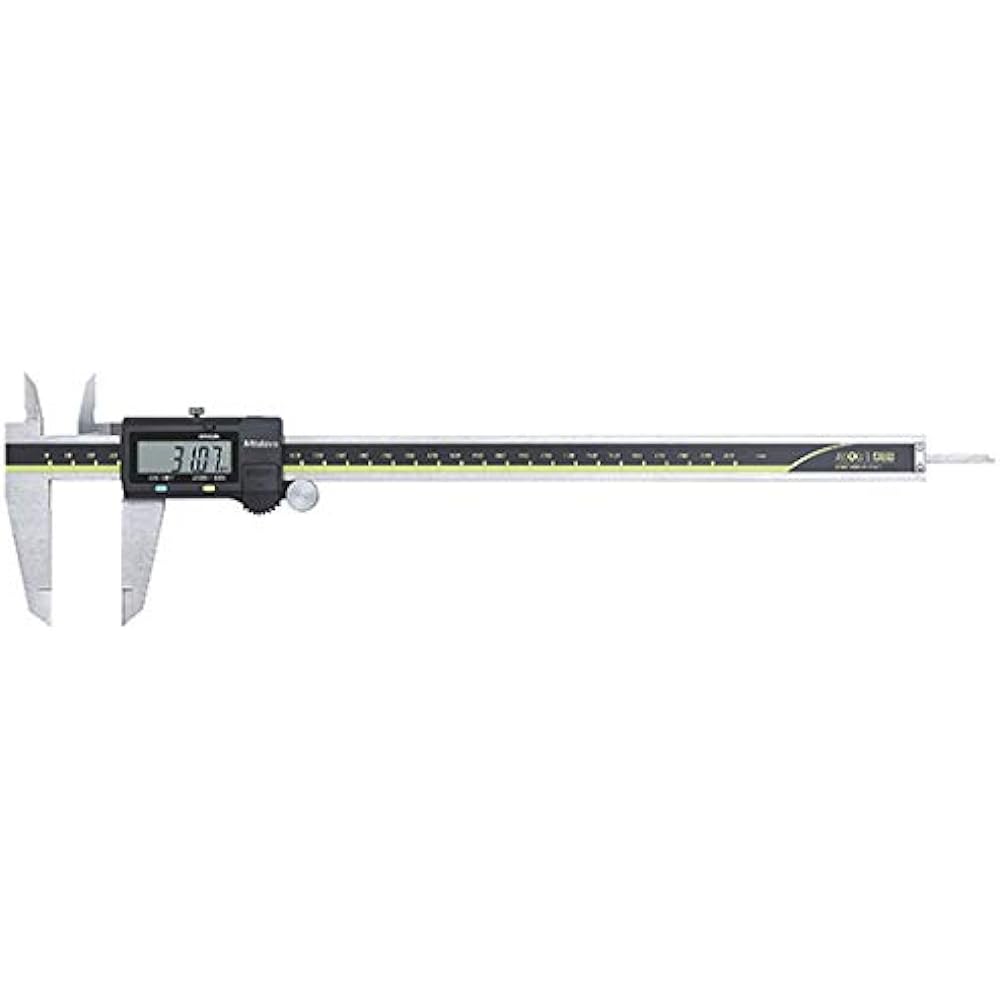

Mitutoyo Digimatic Caliper 500-153-30 CD-30AX
Mitutoyo Digimatic Caliper 500-153-30 CD-30AX
Regular price
$494.00 USD
Regular price
Sale price
$494.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Measurement range (mm): 0~300
[Features]- The height of the characters on the LCD display has been expanded to 11.0 mm, improving visibility (approx. 16% increase compared to the manufacturer).・ABS (absolute) scale eliminates the need to set the origin every time the power is turned on.・The parallelism of the measurement surface is less likely to go awry since the main scale width is 20 mm NI. - Achieved a battery life of approximately 5 years (18,000 continuous hours) under normal use. [Specifications]・Measurement range (mm: 0~300・Minimum display amount (mm): 0.01・Instrumental error (mm): ±0.03・Repeatability (mm): 0.01・Thumb roller: Yes・Data output: Yes・Power supply: Silver oxide battery (SR44) x 1 ・Battery life: Approximately 5 years (in normal use) ・Position detection method: Electromagnetic induction absolute encoder method ・Response speed: Unlimited ・Liquid crystal display: 7 segments, 5 digits, minus, character height 11, 0mm・Function: Power ON/OFF, origin setting (ORIGIN), ZERO/ABS, data output, data hold・Alarm device: Voltage drop, scale contamination error, overflow error・Operating temperature (℃): 0~40・Save Temperature (℃): -10~60・Protection grade: None [Notes]・Instrumental error does not include quantization error.・Data output can be externally output using a connection cable (with DATASY power switch)・Data hold is possible with a hold unit (with HOLD switch).
Manufacturer: Mitutoyo
Part number: CD-30AX
Product weight: 771 g
Package size: 45.11 x 14.1 x 3.51 cm; 771 g
Thickness: 68.9 cm
Power type: Battery powered
Accessories: Power source: Silver oxide battery (SR44)
[Features]- The height of the characters on the LCD display has been expanded to 11.0 mm, improving visibility (approx. 16% increase compared to the manufacturer).・ABS (absolute) scale eliminates the need to set the origin every time the power is turned on.・The parallelism of the measurement surface is less likely to go awry since the main scale width is 20 mm NI. - Achieved a battery life of approximately 5 years (18,000 continuous hours) under normal use. [Specifications]・Measurement range (mm: 0~300・Minimum display amount (mm): 0.01・Instrumental error (mm): ±0.03・Repeatability (mm): 0.01・Thumb roller: Yes・Data output: Yes・Power supply: Silver oxide battery (SR44) x 1 ・Battery life: Approximately 5 years (in normal use) ・Position detection method: Electromagnetic induction absolute encoder method ・Response speed: Unlimited ・Liquid crystal display: 7 segments, 5 digits, minus, character height 11, 0mm・Function: Power ON/OFF, origin setting (ORIGIN), ZERO/ABS, data output, data hold・Alarm device: Voltage drop, scale contamination error, overflow error・Operating temperature (℃): 0~40・Save Temperature (℃): -10~60・Protection grade: None [Notes]・Instrumental error does not include quantization error.・Data output can be externally output using a connection cable (with DATASY power switch)・Data hold is possible with a hold unit (with HOLD switch).
Manufacturer: Mitutoyo
Part number: CD-30AX
Product weight: 771 g
Package size: 45.11 x 14.1 x 3.51 cm; 771 g
Thickness: 68.9 cm
Power type: Battery powered
Accessories: Power source: Silver oxide battery (SR44)
