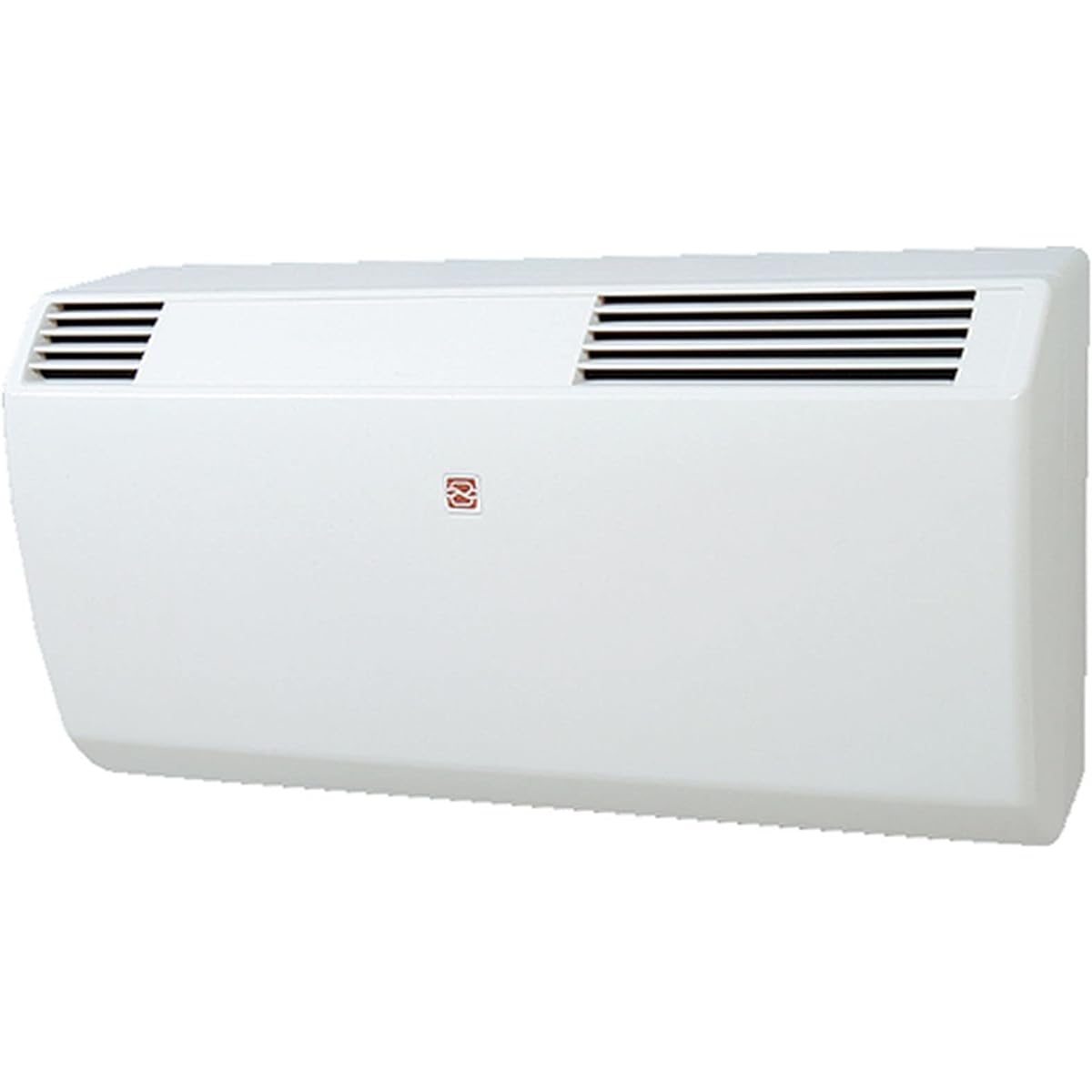

Mitsubishi Electric 24-hour simultaneous supply and exhaust ventilation fan, semi-cold and warm region specifications, J-Fan, Lossnai Mini, for living rooms, 12 tatami mats, VL-12JV3

●Quantity (units): 1
●Connection pipe (mm): φ100
●Application: living room
●Approximate number of tatami mats: 12 tatami (19.8m2)
●Semi-cold temperature Earth/warm region specifications
●Applicable area: South of energy saving standard 4 regions and below (cannot be used in cold regions)
●24-hour ventilation
●Quick connection terminal connection
●Compact body specifications
>●Paper total heat exchanger
●Model settings according to the number of tatami mats
●Two-stage switching between “strong” and “weak”
●For wall installation only

●Quantity (units): 1●Connection pipe (mm): φ100●Application: living room●Applicable tatami size: 12 tatami (19.8m2)●Semi-cold region/warm region specification ●Applicable region: 4 energy-saving standard regions South (cannot be used in cold regions) ●24-hour ventilation ●Quick connection terminal connection ●Compact main body specifications ●Paper-made total heat exchanger ●Model settings according to the number of tatami mats ●2-stage switching between "strong" and "weak" ●Wall installation Exclusive ●With power switch (upper right side of main unit) ●With power switch (upper right side of main unit) ●Equipped with slide shutter (back of main unit) ●Can be operated in cold weather (exhaust only mode: air supply shutter) (Close and only vent.) ●Antibacterial specifications (body panel) ●Low noise, low power consumption ●Equipped with supplement cartridge ●Direct outlet plug replacement cord (P-01DC, P-250DC) can be attached ●Equipped with allergy sterilization filter ●Voltage (V): 100 ●Power supply (φ): Single phase ●Options: High-performance dust removal filter, micro particle filter ●Ideal for energy saving measures for heating and cooling in 24-hour ventilation. ●*Cannot be installed vertically●※Cannot be installed on the ceiling●※Outdoor hood and pipes are sold separately. ●※Do not use in bathrooms, washrooms, etc. as it is not moisture resistant. ●*Please be sure to use the specified system components in combination. ●*When the outside temperature is low, when there is strong snow, wind, or rain, especially when there is fog or powder snow, water and snow may enter along with the supplied air and cause dripping, so stop the operation and close the shutter. please. Do not stop operation except under the above conditions or during cleaning or inspection. ●*If used in the following environments, there is a risk of condensation or ice forming on the panel and inside the main unit. (Outdoor temperature -5°C or lower, indoor temperature 15 to 25°C, indoor humidity 45% or higher) Can be used in "cold operation" mode when the outdoor temperature is -5 to -10°C. ●*Some small particles and insects may pass through the standard filter. To further increase the collection rate, we recommend using the optional high-performance dust removal filter (P-70HF2). Caution (Disclaimer) > Please read ● Installation involves electrical work (electrician qualification required). Please be sure to install it by a qualified person such as a professional contractor. ●Please check the installation condition before use.


Brand: ‎Mitsubishi
Product model number: ‎VL-12JV3
Package size: ‎49.6 x 30.5 x 24.3 cm; 3.48 kg
Color: ‎None
Nameplate Name: ‎Modern
Material: ‎Plastic, Alloy Steel
Power supply: ‎Power cord type
Quantity: ‎1
Laser class: ‎Energy saving
Accessories: ‎Instruction manual
Product weight: ‎3.48 Kilograms
