MITSUBA Ultrasound 700HZ [Horn] HOS-06B

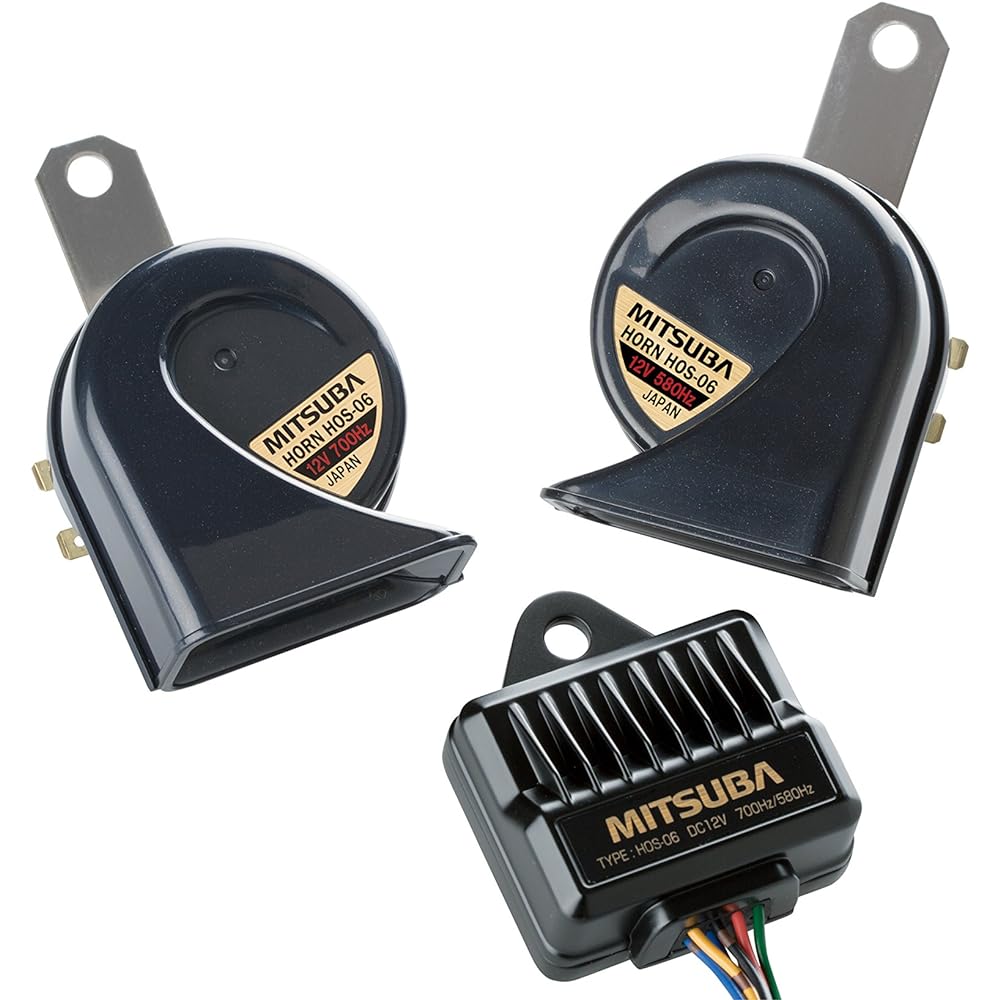

Country of origin: Japan Accessories: Horn (Hi&Lo), electronic control unit, dedicated harness, dedicated stay, connector, installation instruction manual (warranty included) Main specifications
●Voltage: 12V
●Current consumption: 2.5 A×2
●Frequency: 700Hz/580Hz
●Sound pressure level: 113dB/2m
●Color: Sapphire black Thin design 54mm Specifications: 2.5A×2

Super compact and ultra durable made possible by electronic control! The world's smallest *1 small spiral horn - Extremely small size - 40% compared to conventional models (Alpha II volume ratio) The world's smallest spiral horn allows greater flexibility in installation. It has increased significantly. Ultra-lightweight 145g/piece *2 The ultra-lightweight body minimizes shaking when driving. Thin design 54mm*3 Achieved a high volume of 113dB/2m with a thin design that has fewer restrictions on installation location. *1: As of December 2014, according to our research (Class 2) *2: Per horn body, excluding stay *3: Excluding protrusions - Achieves the best high-pitched sound of a spiral horn! Reproduces powerful air horn sound! ! Highest treble 700/580Hz - Ultra durable! Low current! No relay or harness required! Ultra durable An electronic control unit is used, and the horn itself has no contacts. Eliminating contact wear significantly extends life. Low current consumption: 5A, same as a single horn. Low current consumption reduces the load on the battery. No relay or harness required. Comes with a dedicated electronic control unit and harness, so no separate relay or harness is required. - Stay considering horn installation Stay width 22mm The same width as the genuine horn, 22mm, prevents interference with the rib at the genuine horn mounting location. The angle of the stay can be changed. Being able to change the angle of the stay increases the degree of freedom in installation.


Manufacturer: MITSUBA
Brand: MITSUBA
Model name: HOS-06B
Product size: 5.4 x 6.9 x 7.8 cm; 700 g
Product model number: ‎HOS-06B
Discontinued by manufacturer: ‎No

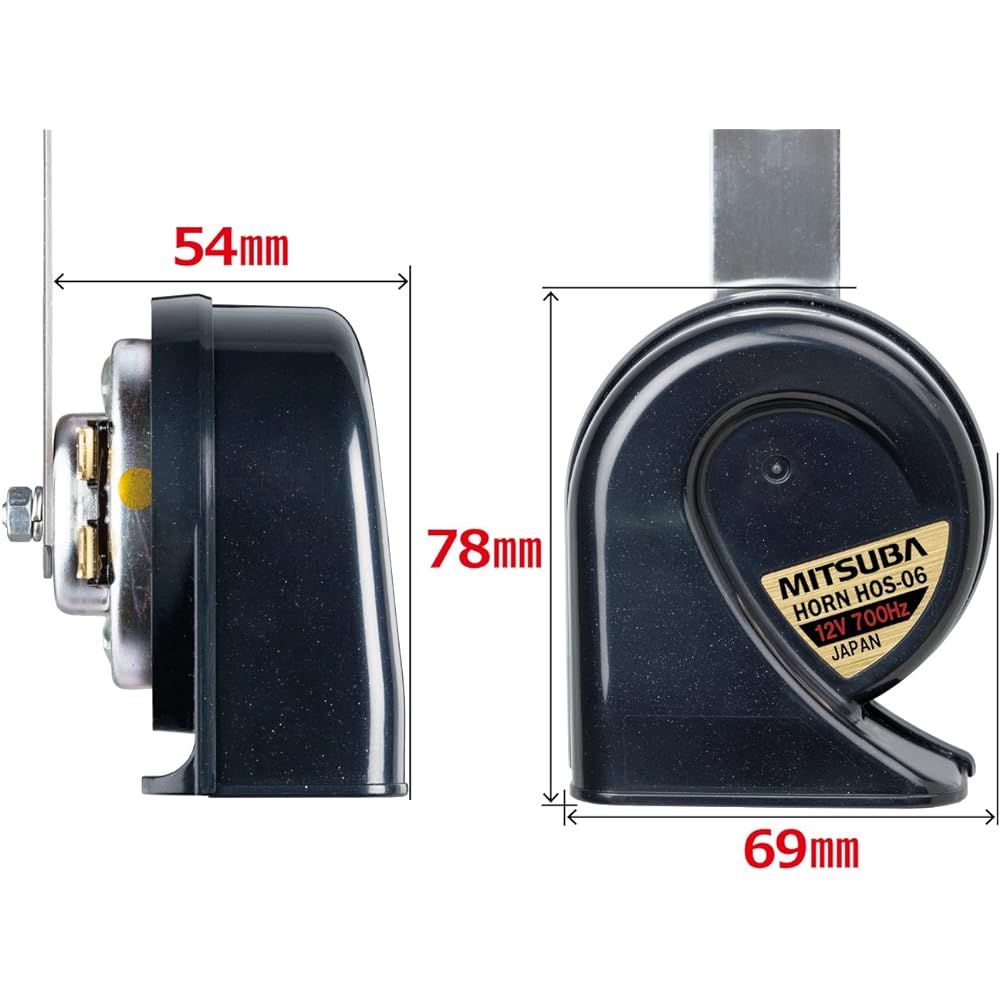

Product dimensions: Depth x Width x Height: ‎5.4 x 6.9 x 7.8 cm
Number of bolts: ‎12 volts
Color: ‎Sapphire black
Certification: ‎None
Item weight: ‎700 g
