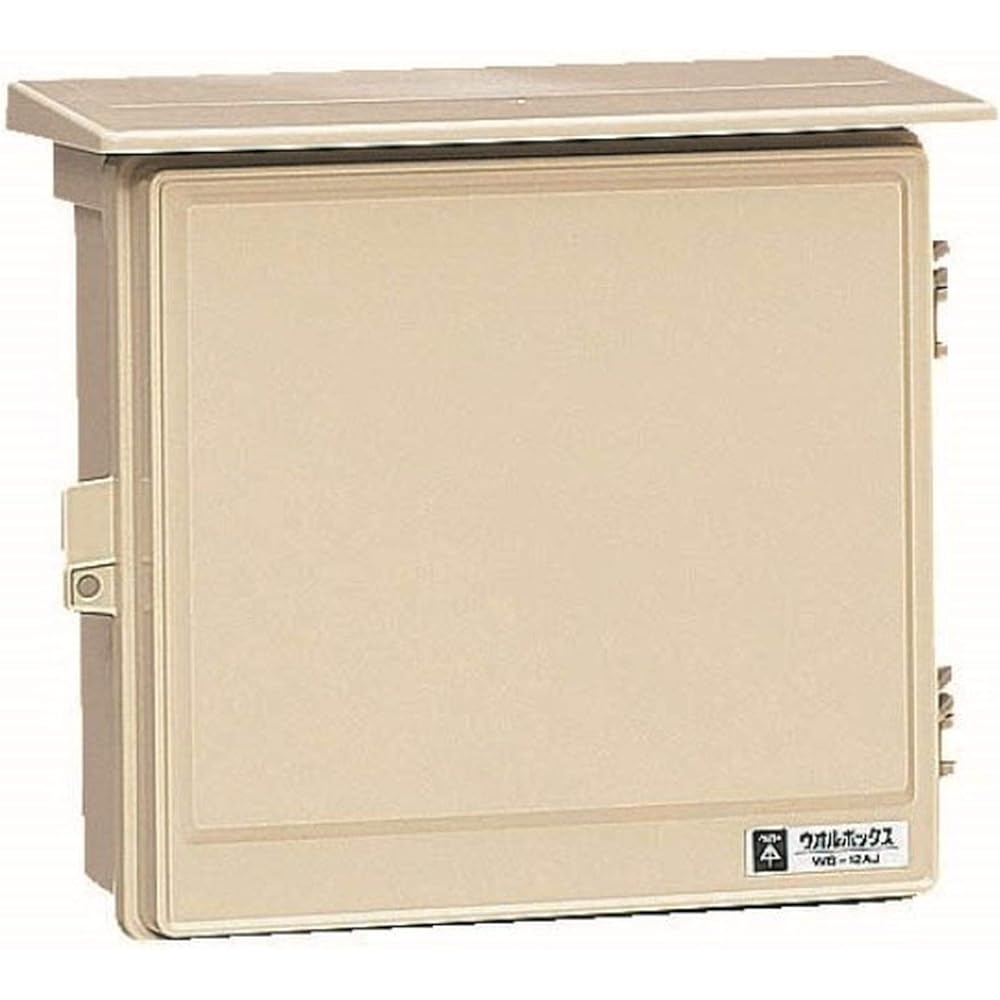

Mirai Kogyo Plastic Rainproof Wall Box with Roof, Horizontal Type, Black, Price for 1 WB-12AK

The images shown are different from the actual product. Manufacturer model: WB-12AK

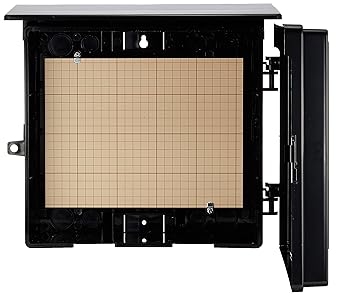

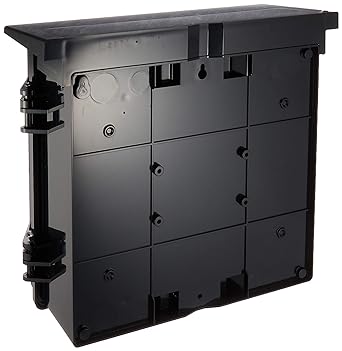

Specifications Type A (simple design with a wide range of colors and variations) Roofed (horizontal) Color: Black Installation space (ELB): 3P 60AF x 2 Box external dimensions (mm) (including roof, protrusions, etc.): Height 302 x Width 332 x depth 150 Effective depth: 106 Band through hole: Yes Band through hole: Back side (width 25 mm) With wooden base Compatible pole band: POB-3F(W)T Knock diameter: Bottom/φ34×2, φ27× 3. Rear side/φ30×4, φ22×4 *The roof and door can be separated from the main body, and the roof can be removed after construction. *The wooden board can be removed from the front. *Product images are for illustration purposes only.


Manufacturer: MIRAI
Part number: WB-12AK
Product weight: 500 g
Package size: 34.4 x 30.8 x 15.4 cm ; 500 g
Size: ‎Effective depth: 106
Color: ‎Black
Style: ‎Industrial
Installation method: ‎Screw mounting type
Accessories: ‎None
