Michigan Motorsports LS2 Fuel Spacer Kit LS2 Intake Mani Hold for LS1/LS6 Injector

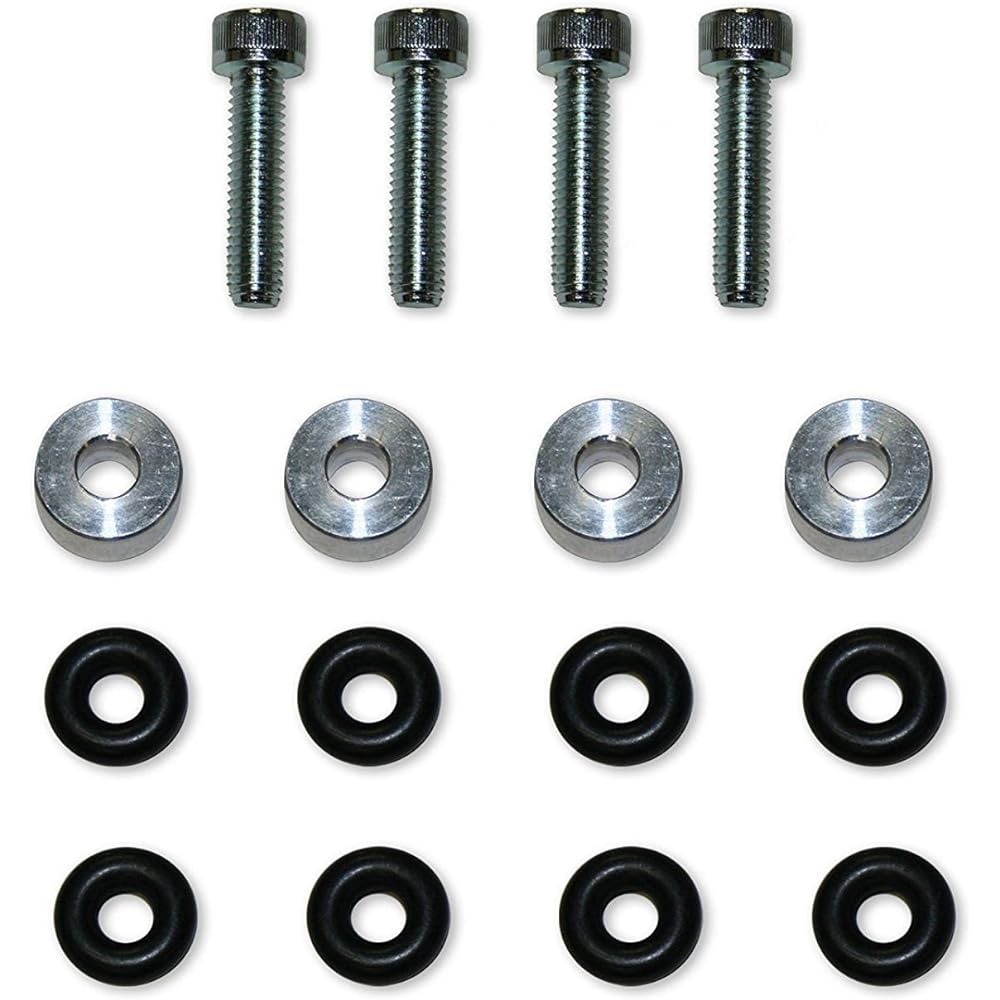

LS2 fuel rail spacer kit. Use LS1/LS6 injectors with LS2 intake manifold. This kit fits all LS1 and LS6 injectors that work with LS2 intake manifolds with LS2 fuel injector rails. Stock LS1 injectors are approximately 1/4 inch taller than stock LS2 injectors. It also has smaller O-rings than LS2 style injectors. Using an LS2 bottom O-ring with an LS1 injector will result in fuel leakage due to the different ID (inner diameter) sizes. This requires the use of custom O-rings. As you can see in the picture, our custom O-rings are much larger than the stock ones. The top injector pockets on both fuel rails are the same size, so only the bottom O-ring needs to be changed. Also included are 4 CNC machined spacers and new bolts to accommodate taller LS1/LS6 injectors. (Intake manifold, fuel rail, and injectors are shown for reference only and are not included.)

LS2 fuel rail spacer kit. Use LS1/LS6 injectors with LS2 intake manifolds. This kit fits all LS1 and LS6 injectors running on LS2 intake manifolds with LS2 fuel injector rails. The factory LS1 injector is approximately 1/4 inch taller than the factory LS2 injector. It also has a smaller O-ring on the bottom than LS2 style injectors. Using an LS2 bottom O-ring with an LS1 injector will result in fuel leakage because the ID (inner diameter) is a different size. This requires the use of custom O-rings. As you can see in the picture, our custom O-rings are much larger than stock. The top injector pockets on both fuel rails are the same size, so only the bottom O-ring needs to be changed. Also included are 4 CNC machined spacers and new bolts to accommodate taller LS1/LS6 injectors. (Intake manifold, fuel rail, and injectors are shown for reference only and are not included.)


Manufacturer: ‎Michigan Motorsports
Brand: ‎Michigan Motorsports
Packaging Size: ‎15.5 x 7.7 x 1.2 cm; 54 g
Manufacturer reference: ‎86400
Discontinued by the manufacturer: ‎No
Item weight: ‎54 g
