Matek SERVO PDB BEC pay 5.5-36V~5-8.2V RC fixed-wing aircraft for FPV
Matek SERVO PDB BEC pay 5.5-36V~5-8.2V RC fixed-wing aircraft for FPV
Regular price
$102.00 USD
Regular price
Sale price
$102.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

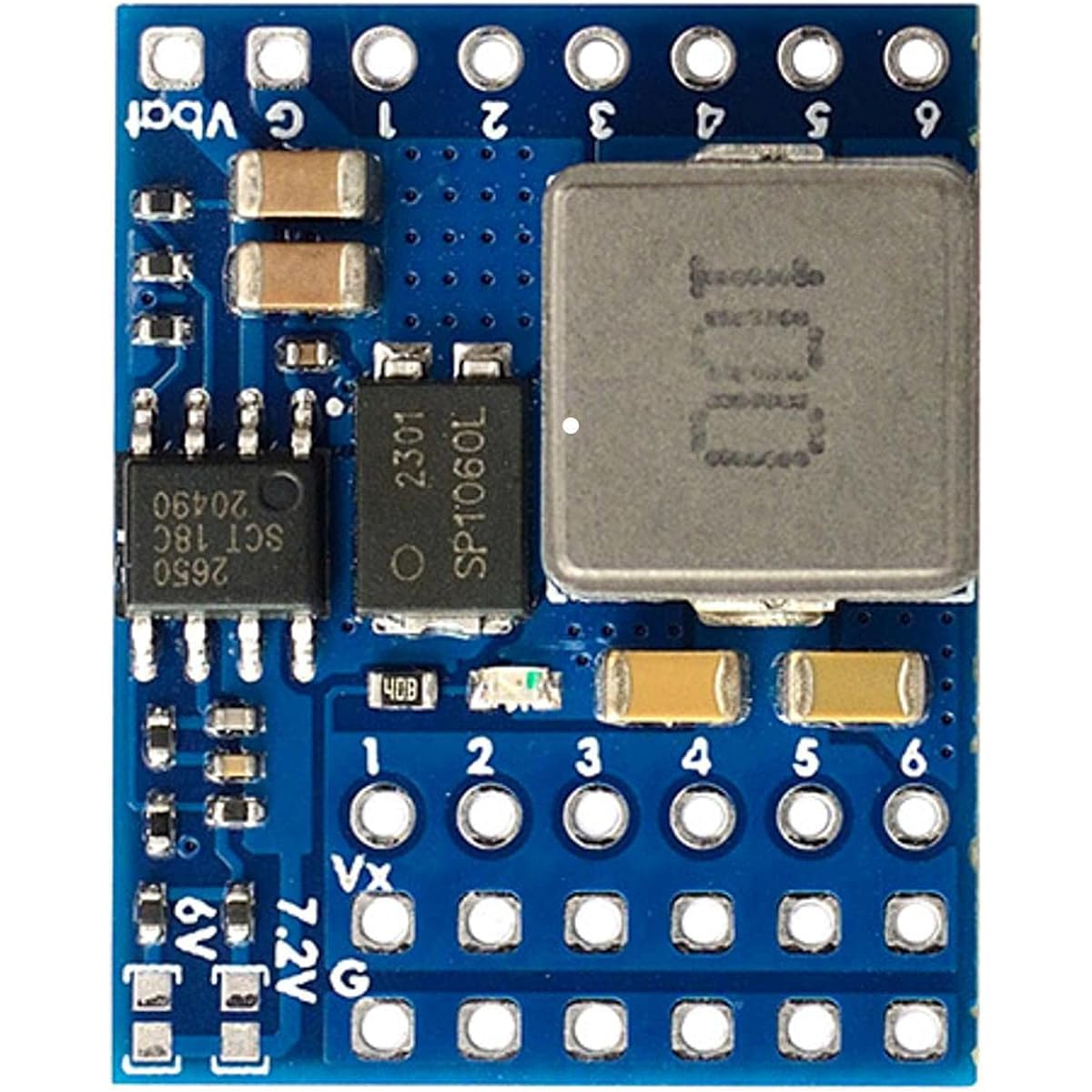

5.5V~36V operating input range, compatible with up to 8s LiPo battery. Adjustable Vx, 5V, 6V, 7.2V, 8.2V for servos. Default is 5V. 4A continuous load current, 7A burst. Maximum duty cycle: 100%, input voltage < set value, regulator output voltage = input voltage Output short circuit resistant (3s). No reverse input polarity protection. Suitable for flight controllers without dedicated BEC for servos. Reduce circuit loss and voltage drop in servo power wires for large RC airplanes.

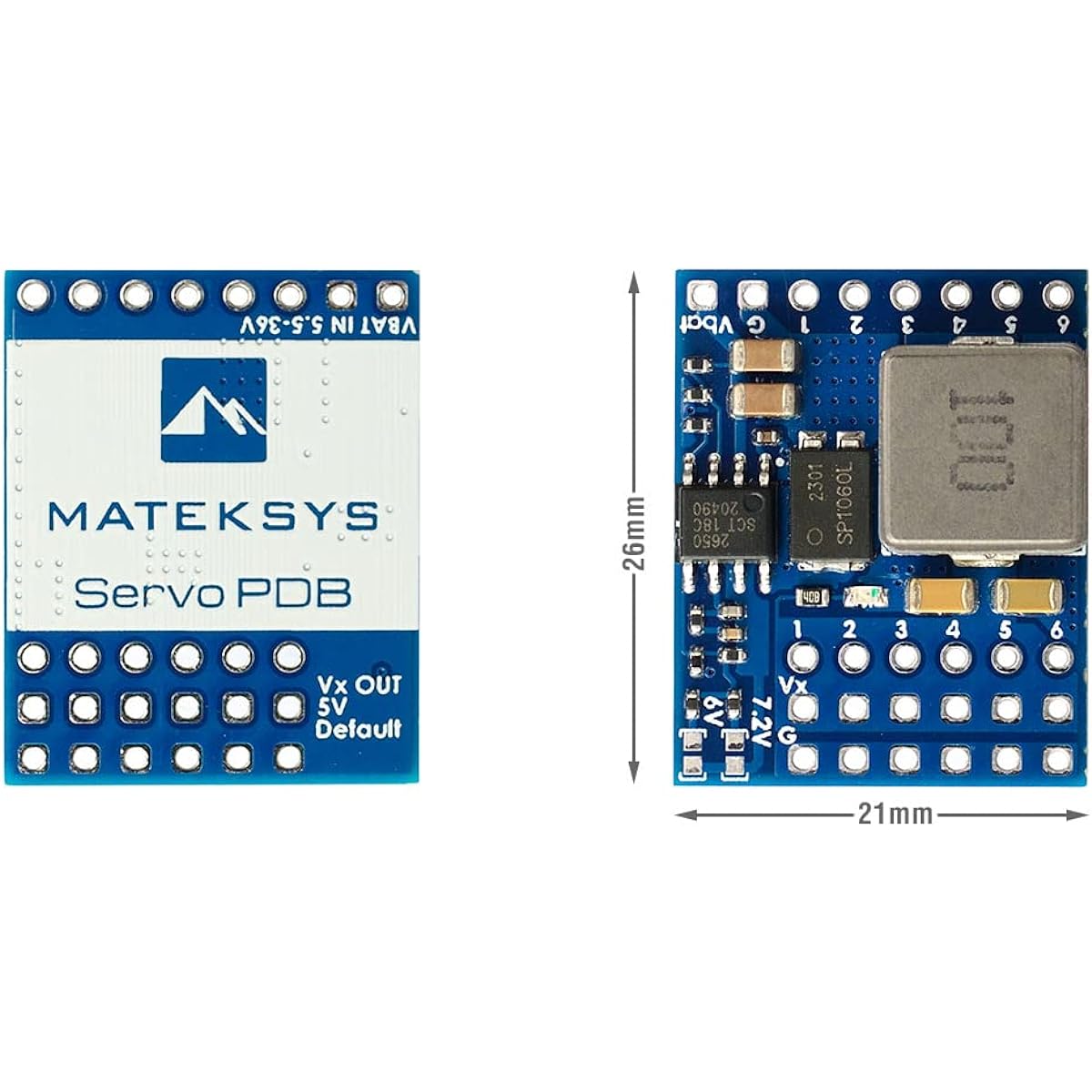

5.5V~36V operating input range. Adjustable Vx, 5V, 6V, 7.2V, 8.2V for servos. Default is 5V. 4A continuous load current, 7A burst. Maximum duty cycle: 100%, input voltage < set value, regulator output voltage = input voltage Output short circuit resistant (3s). No reverse input polarity protection. Pin distance: 2.54mm. Size and Weight: 26 x 21 x 5mm, 4g. Applications Flight controller without BEC only for servos Reduce circuit loss and voltage drop in servo power wires for large RC airplanes. Package Includes: 1 x SVPDB-8S, 1 x Dupont 2.54mm Pin.
5.5V~36V operating input range. Adjustable Vx, 5V, 6V, 7.2V, 8.2V for servos. Default is 5V. 4A continuous load current, 7A burst. Maximum duty cycle: 100%, input voltage < set value, regulator output voltage = input voltage Output short circuit resistant (3s). No reverse input polarity protection. Pin distance: 2.54mm. Size and Weight: 26 x 21 x 5mm, 4g. Applications Flight controller without BEC only for servos Reduce circuit loss and voltage drop in servo power wires for large RC airplanes. Package Includes: 1 x SVPDB-8S, 1 x Dupont 2.54mm Pin.
