MATEK M10-5883 GNSS & Compass for Airplane Drone

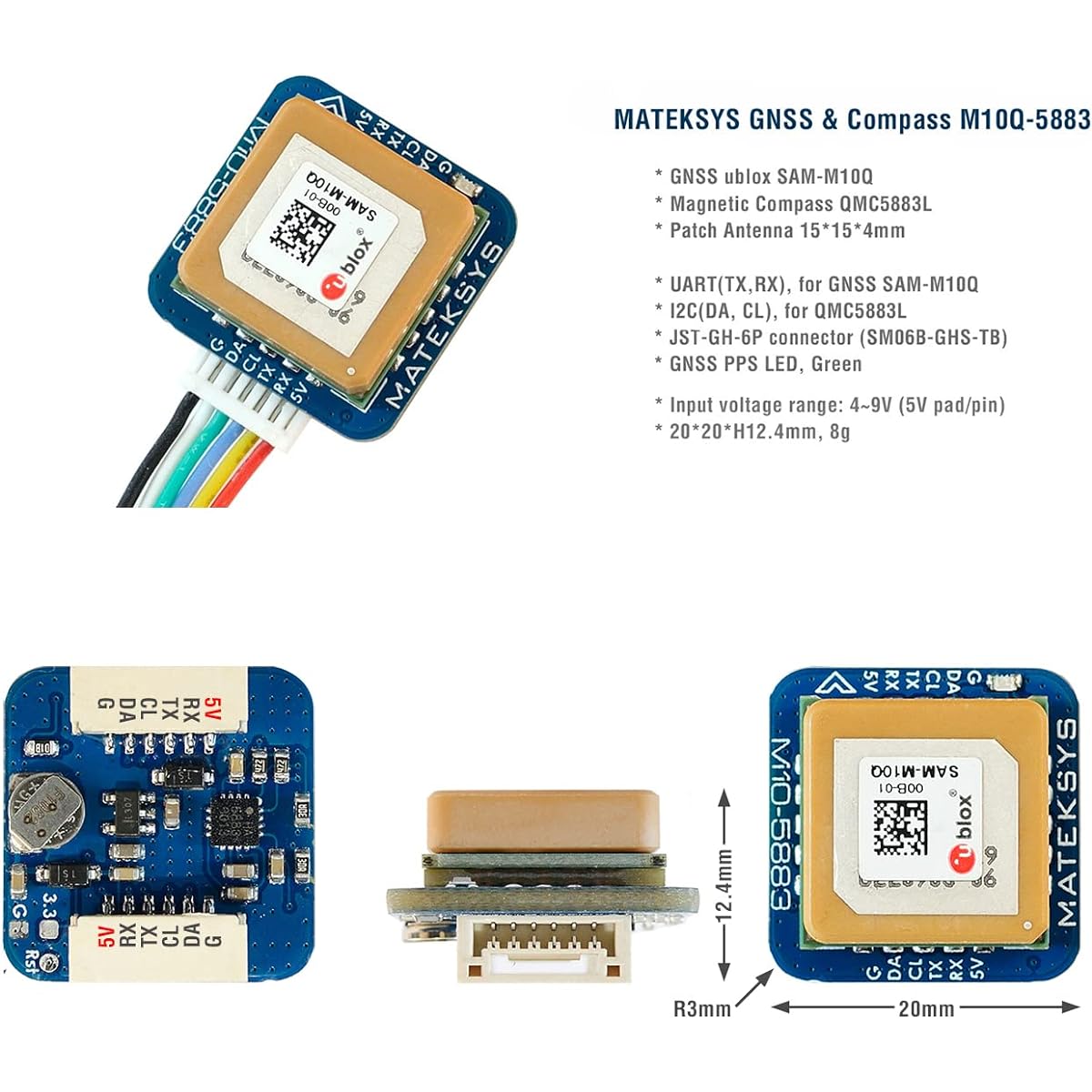

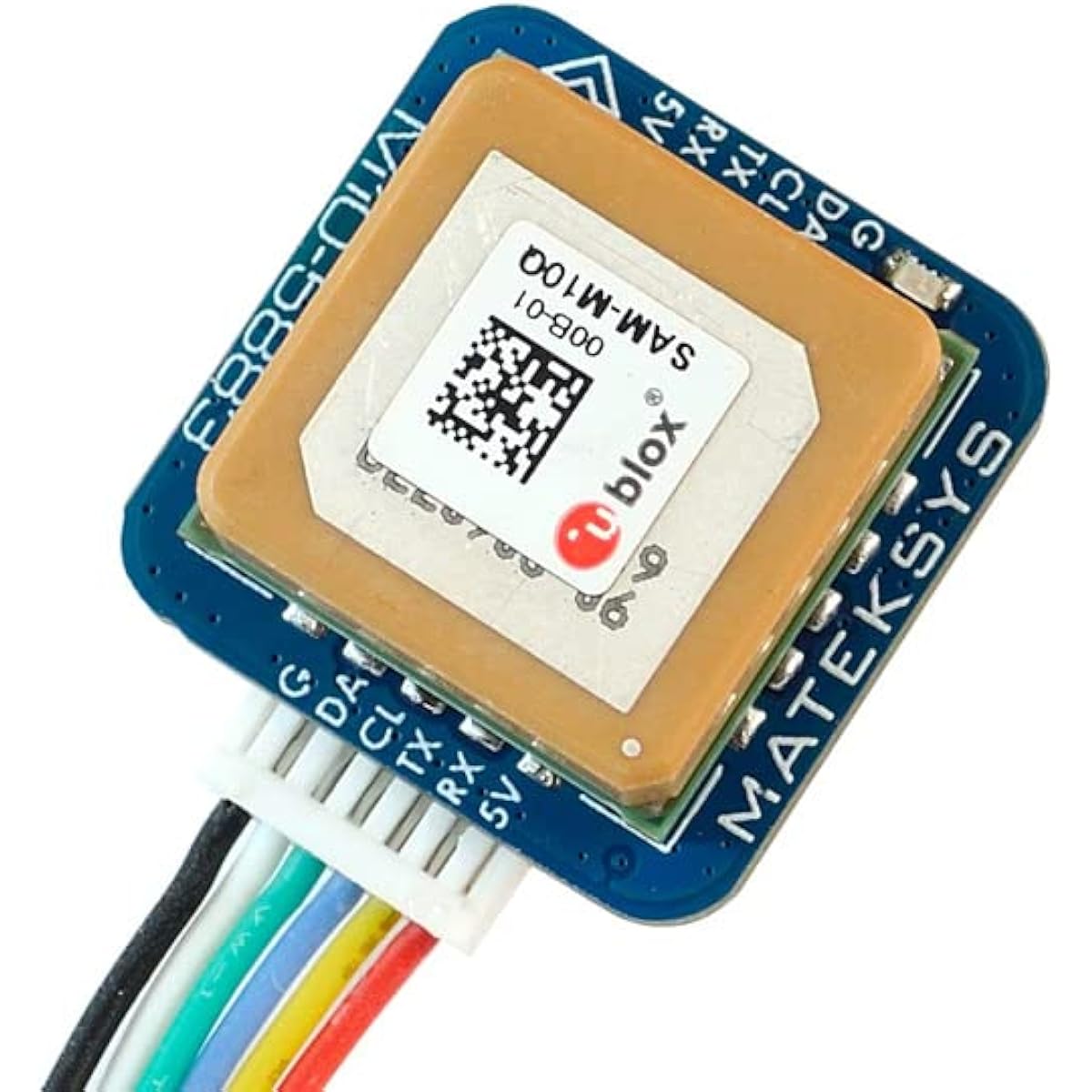

[Multi-constellation GNSS module] M10Q-5883 uses a multi-constellation GNSS module equipped with u-blox SAM-M10Q-00B. This allows the receiver to receive four GNSS signals (GPS, GLONASS, Galileo, BeiDou) simultaneously, maximizing position availability even in difficult situations such as deep urban canyons. Outstanding sensitivity and acquisition time: The SAM-M10Q features the u-blox M10 standard high-precision GNSS platform, providing outstanding sensitivity and acquisition time for all L1 GNSS signals. Super-S technology improves accuracy: u-blox Super-S technology provides superior RF sensitivity to improve dynamic position accuracy in non-line-of-sight scenarios. [High Gain Patch Antenna] M10Q-5883 is equipped with a high gain 15 x 15mm2 patch antenna, which provides the best balance between performance and small size. Omnidirectional antenna radiation pattern increases device installation flexibility. ************************************************** *********** Discontinued versions: M8Q-5883 and M10-5883.

MATEK M10-5883 GNSS & Compass for Airplane Drone


Map Type: ‎City Tour, Street
