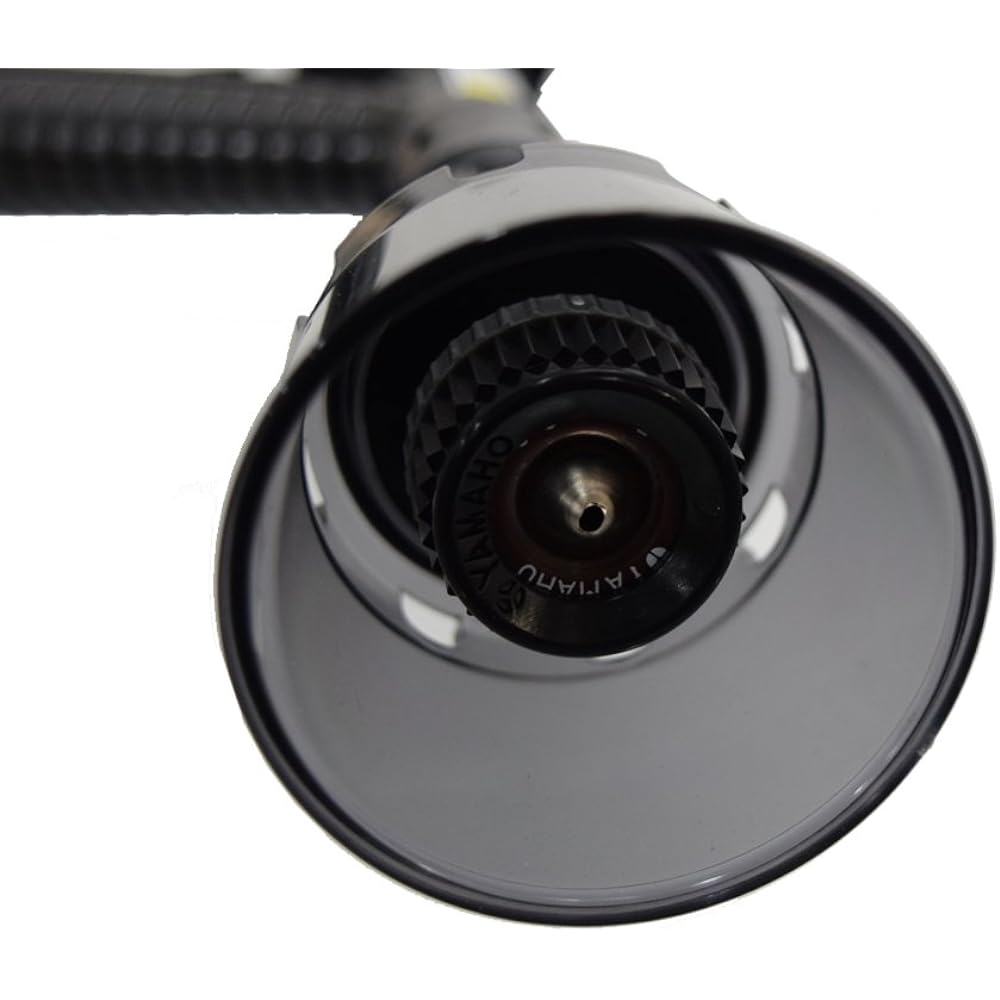

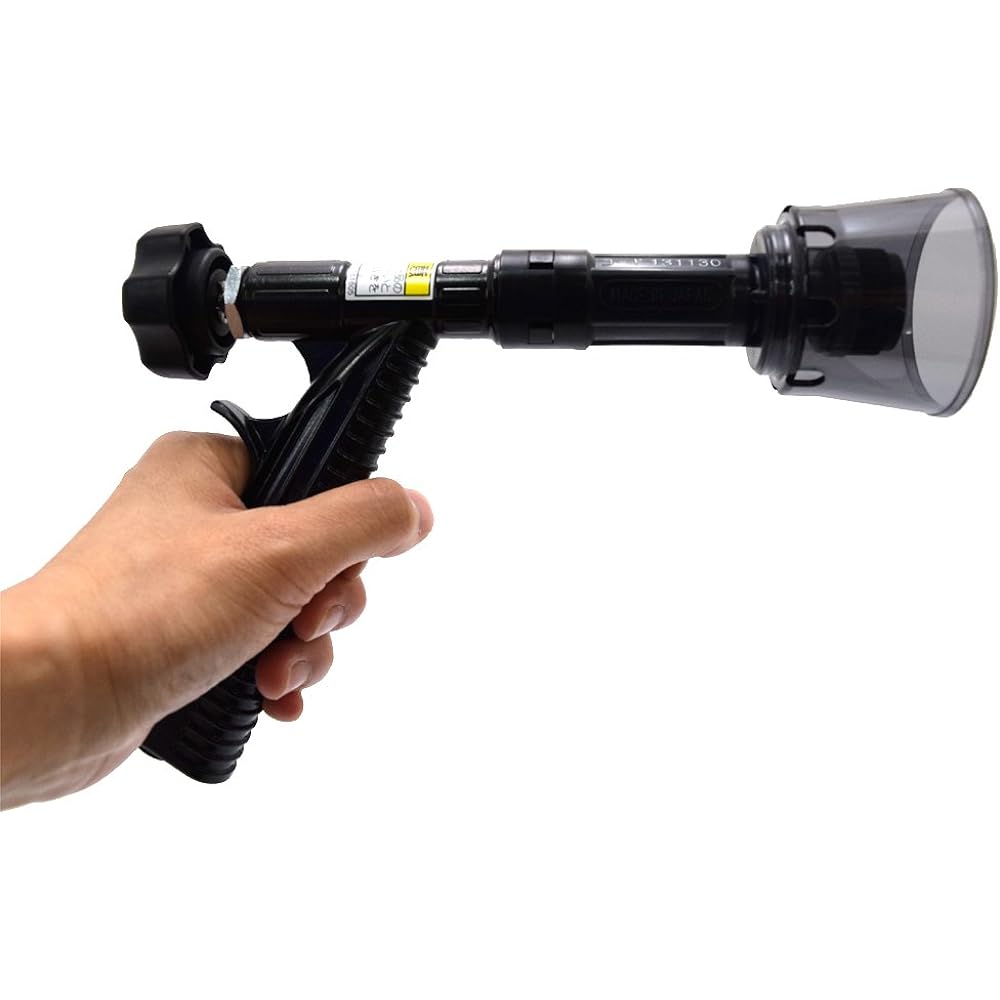

Maruyama Seisakusyo Sprayer Nozzle Yamaho Light Zoom N Type 4530217019305

Nozzle name: NN-ZV-20S / NN-ZV-12 (included) Average particle diameter (NN-ZV-20S/NN-ZV-12 (included)) (µm): 95~360 (1.5 MPa) / 80~420(1.5MPa) Proper pressure (NN-ZV-20S/NN-ZV-12 (attached)) (MPa): 1.0~1.5 / 1.0~1.5 Ejection amount (NN-ZV-20S/NN-ZV- 12 (included)) (1.5 MPa): 5.8~7.2 / 2.4~2.5 L/min Reach distance (NN-ZV-20S/NN-ZV-12 (included)) (1.5 MPa): Approx. 4~8 / approx. 3.5 ~6m Spreading width (NN-ZV-20S/NN-ZV-12 (included)): Approx. 15~80 / Approx. 5~60cm (*Spreading width is the value when the distance from the nozzle is approximately 1m) Mounting screw: G1 /4 Maximum working pressure: 3.0MPa

You can switch between narrow angle and wide angle by turning the knob! Features 1. The fog can be changed from narrow angle to wide angle by turning the adjustment knob at hand, and it spreads in a fan shape, so it can be sprayed evenly. 2.It has a transparent hood so that you can check the spray status. 3.The nozzle and adjustment part (inside the resin) are made of stainless steel that is hard to wear. 4.The nozzle has a fixed direction, so even if it is removed, it can be reattached to its original location. Even if it gets clogged, it can be easily removed. 5.Uses a lock cap to prevent screws from loosening. (Patented product) 6. By replacing it with the included spray plate (NN-ZV-12), you can use it with a smaller spray amount (2.4ℓ/min<1.5MPa>). 7.The main body is made of lightweight and durable die-cast aluminum. *Patented product . Material: Stainless steel, aluminum
Quantity: 1
Accessories: Nozzle: NN-ZV-12S
Warranty: None
Product weight: 290 g
