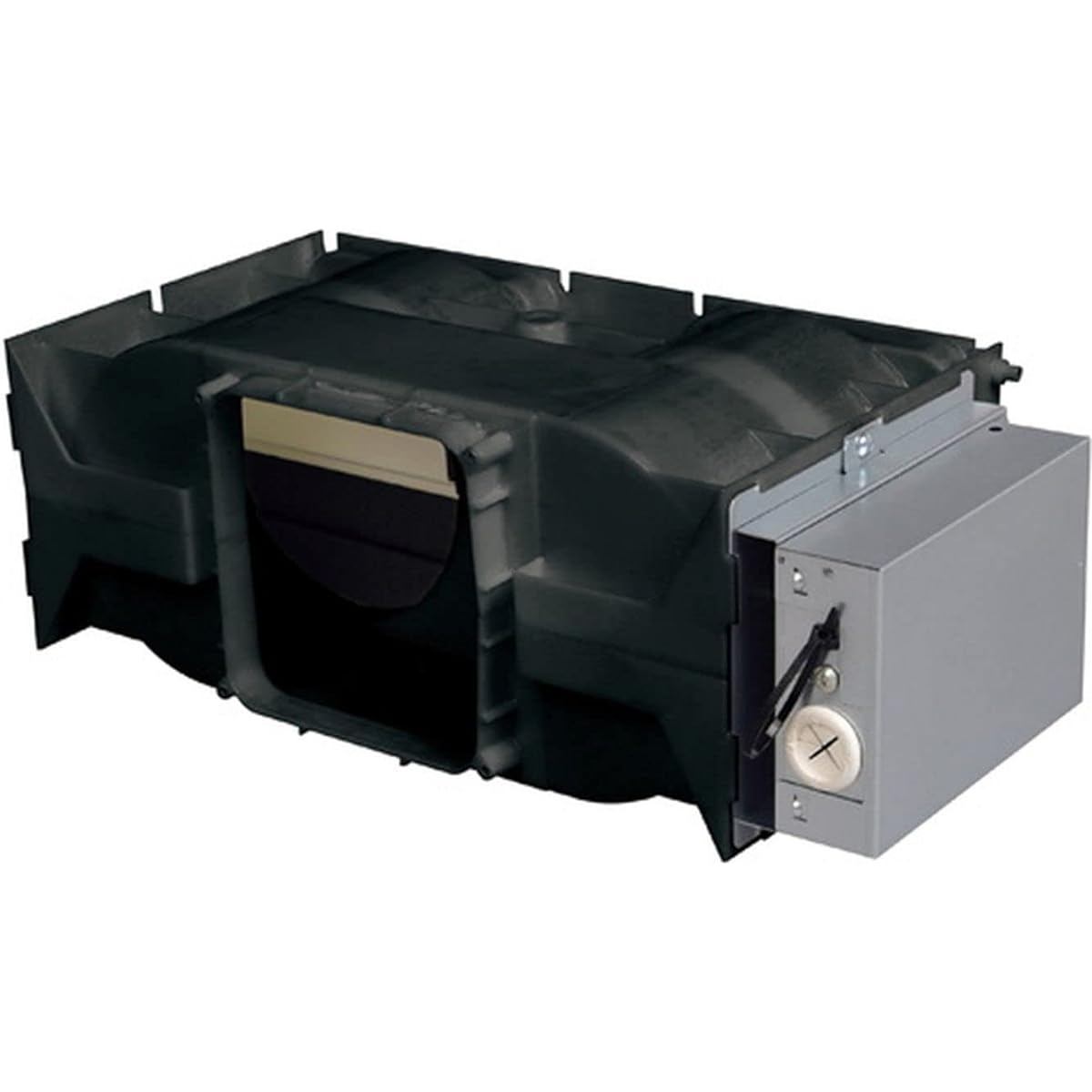

Mitsubishi Electric (MITSUBISHI) Ventilation System Lossnay Central Ventilation System System Components P-133DUE

●Quantity (units): 1
●Power consumption (W) 50Hz/60Hz: 3.9/3.4
●Voltage (V): 100
●Power supply (φ): Single phase
>●Body: Synthetic resin
●Damper: Steel plate
●Cover: Steel plate
●Terminal block: Synthetic resin
●External dimensions (mm) Height x Width x Depth: 136 x 410 x 218
●Weight (kg): 2.2
●Accessories: 2 mounting brackets (1 each for left and right), 1 bag of screws, 8 mounting screws (4 x 10)

●Quantity (units): 1 ●Power consumption (W) 50Hz/60Hz: 3.9/3.4 ●Voltage (V): 100 ●Power supply (φ): Single phase ●Body: Synthetic resin ●Damper: Steel plate ●Cover: Steel plate ● Terminal block: Synthetic resin External dimensions (mm) Height x Width x Depth: 136 x 410 x 218 Weight (kg): 2.2 Accessories: 2 mounting brackets (1 each for left and right), 1 bag of screws, 8 mounting screws (4 x 10) *Please use for switching between RA1 (heat exchange) and RA3 (bypass) (switching to non-heat exchange ventilation during the intermediate season (spring/autumn)).


Brand: ‎MITSUBISHI ELECTRIC
Product model number: ‎P-133DUE
Package size: ‎46 x 26 x 18 cm; 2.2 kg
Color: ‎ None
Name on nameplate: ‎Modern
Power source: ‎Power cord type
Quantity: ‎1
Accessories: ‎Instruction manual
Product weight: ‎2.2 Kilograms
