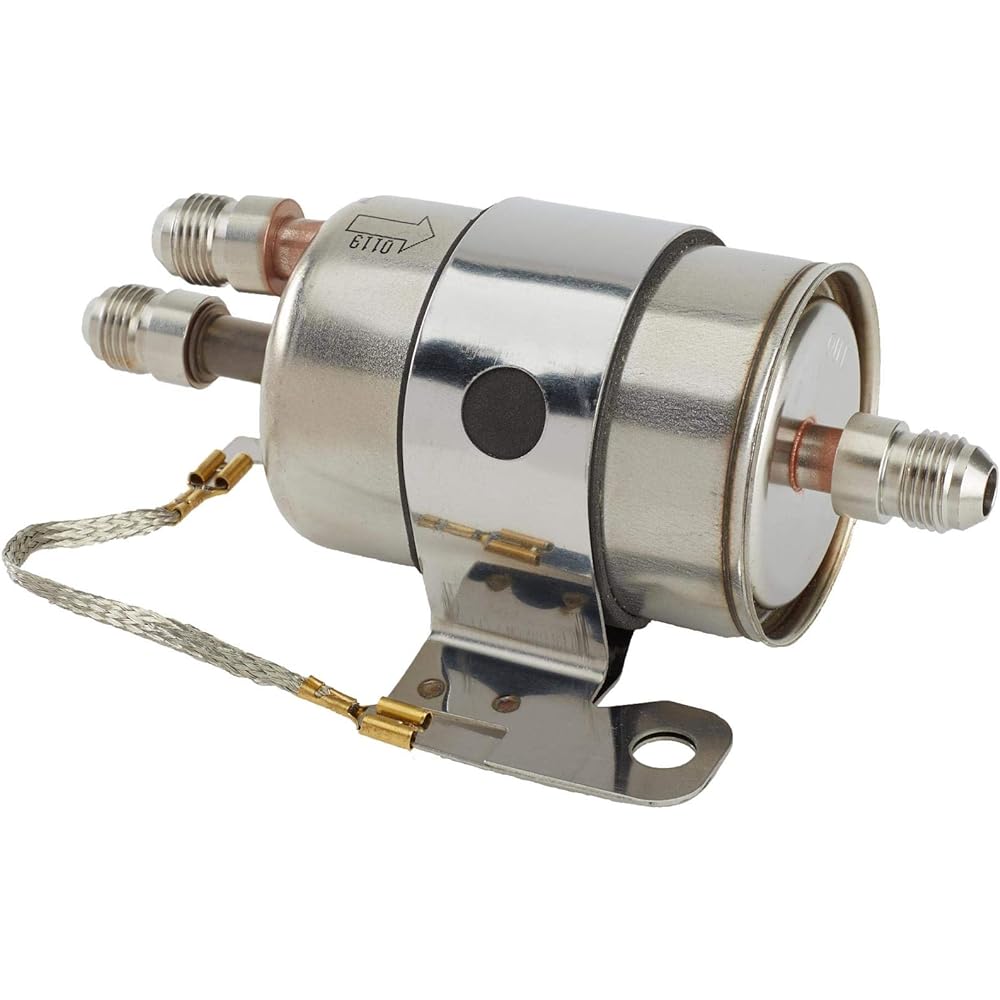

LSX fuel filter/regulator 58PSI LS swap/EFI conversion 6 Footstations included

This AN6 fuel filter and regulator increases reliability and reduces costs with -6 AN intake, outlet, and return fittings built into the assembly. Specially designed for LS swaps or EFI conversions requiring a reliable and professional fuel system solution. 58 PSI fuel pressure regulator is integrated into the filter and adapts to modern fuel injection engines such as LS, Hemi, etc. Eliminates adapter fittings and the mounting bracket has rubber insulators for easy installation. A 5 micron fuel filter is built into the assembly to protect the injectors and ensure long life.

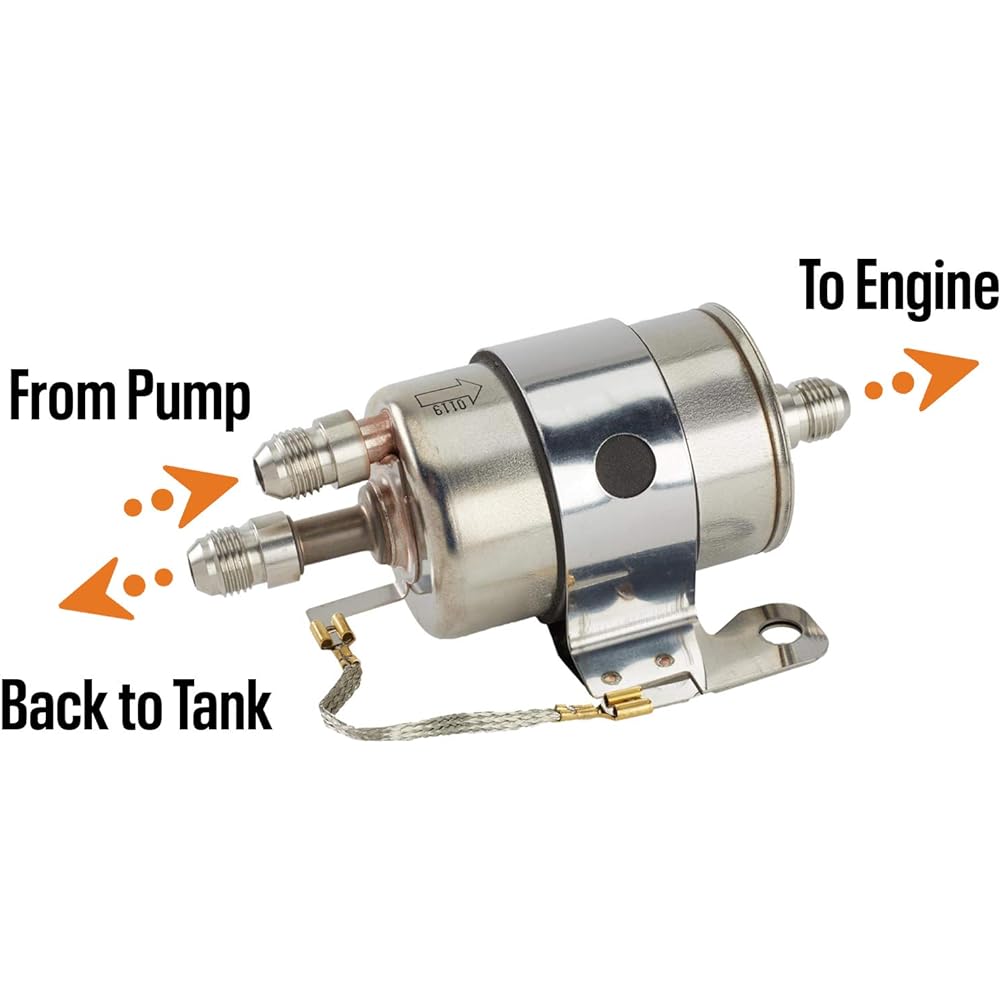

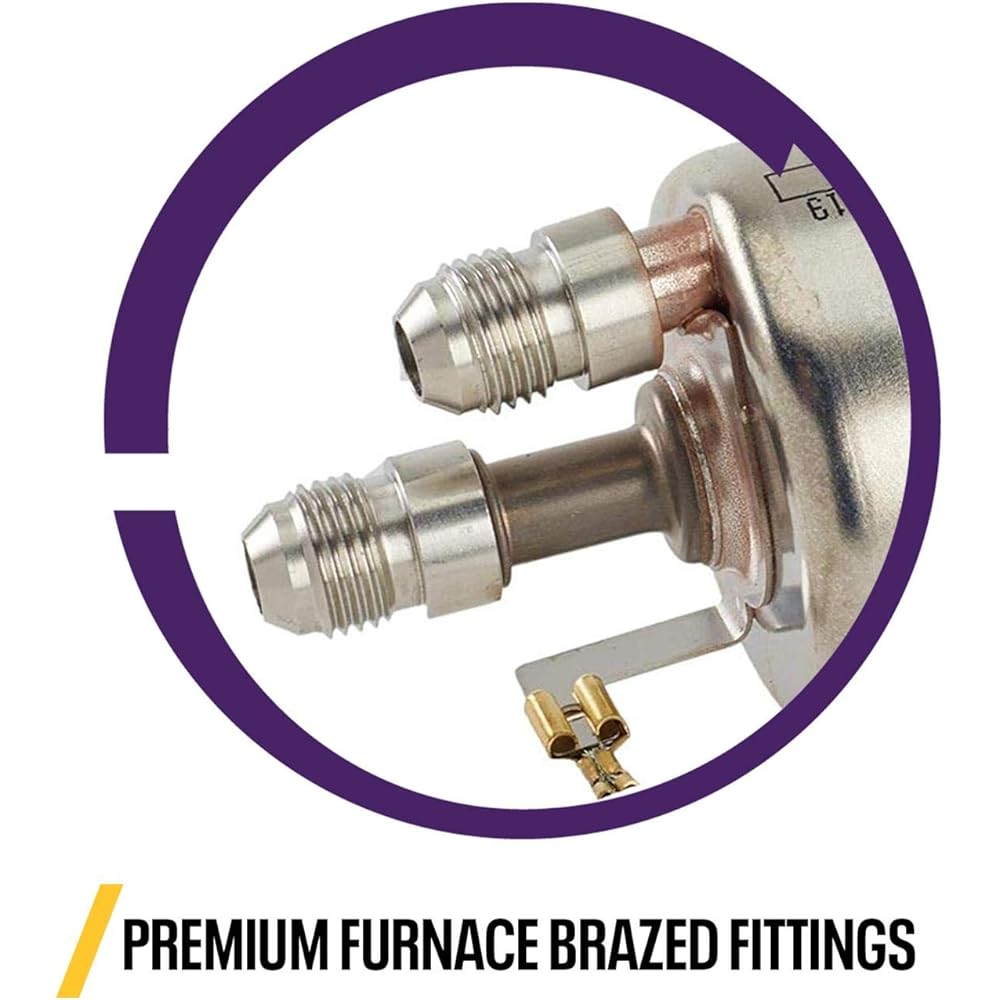

Integrated AN6 inlet, outlet and return fitting for use with AN6 fuel lines. Shorter return line requirements reduce the overall amount of fuel line required. Built-in 58psi regulator compatible with all LS and Hemi swaps and most aftermarket EFI systems. Utilizes 5 micron filter media to protect your expensive fuel injectors. Includes mounting bracket with ground strap and rubber insulator for quiet operation. No AN adapter required creating additional fuel system leak points. A lower cost alternative to using GM filters with AN adapter fittings. Works with EFI fuel pumps mounted inside or outside the tank. No standalone regulators or pressure gauges or additional fittings required. Fully welded steel housing and fittings with paper filter element. Compatible with natural suction applications up to 450hp. Filter bracket features 3/8" mounting holes (mounting fasteners not included). Our 2-in-1 LS Fuel Filter Regulator is the perfect solution for your LS swap fuel system. Plumbing an EFI fuel system is quite different from the carburetor fuel systems found in your favorite hot rods, muscle cars, and classic trucks. Single 5/16" steel line, mechanical fuel pump, screw-in fuel filter to the carb, adds aftermarket EFI to your vehicle's current engine or replaces something like the popular LS engine or modern Hemi. It will not be cut out even if you do so. Everything from the fuel pump to the fuel lines must be upgraded to handle the greater volume and pressure involved with electronic fuel injection. Two important aspects of EFI fuel systems are higher filter requirements and the need to regulate electric fuel pump pressure. Most EFI systems utilize a 5-10 micron post filter (after the pump) to protect the sensitivity and fine internals of the fuel injector itself. Fuel pressure regulators are sometimes used in carburetor processing, but are required in EFI.


Manufacturer: ‎Speedway Motors
Brand: ‎Speedway Motors
Model Name: ‎Speedway Motors
Product Size: ‎18.54 x 9.14 x 8.13 cm; 295 g
>Manufacturer reference: 91012808
Product dimensions Depth x Width x Height: 18.5 x 9.1 x 8.1 cm
API grade: Replacement part
Product weight: 295 g
