LewanSoul LX-16A Full Metal Gear Serial Bus Servo with 17kg High Torque, Real-time Feedback, Dual Ball Bearing for RC Robot Arm (240 Degree) Black
LewanSoul LX-16A Full Metal Gear Serial Bus Servo with 17kg High Torque, Real-time Feedback, Dual Ball Bearing for RC Robot Arm (240 Degree) Black
Regular price
$87.00 USD
Regular price
Sale price
$87.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

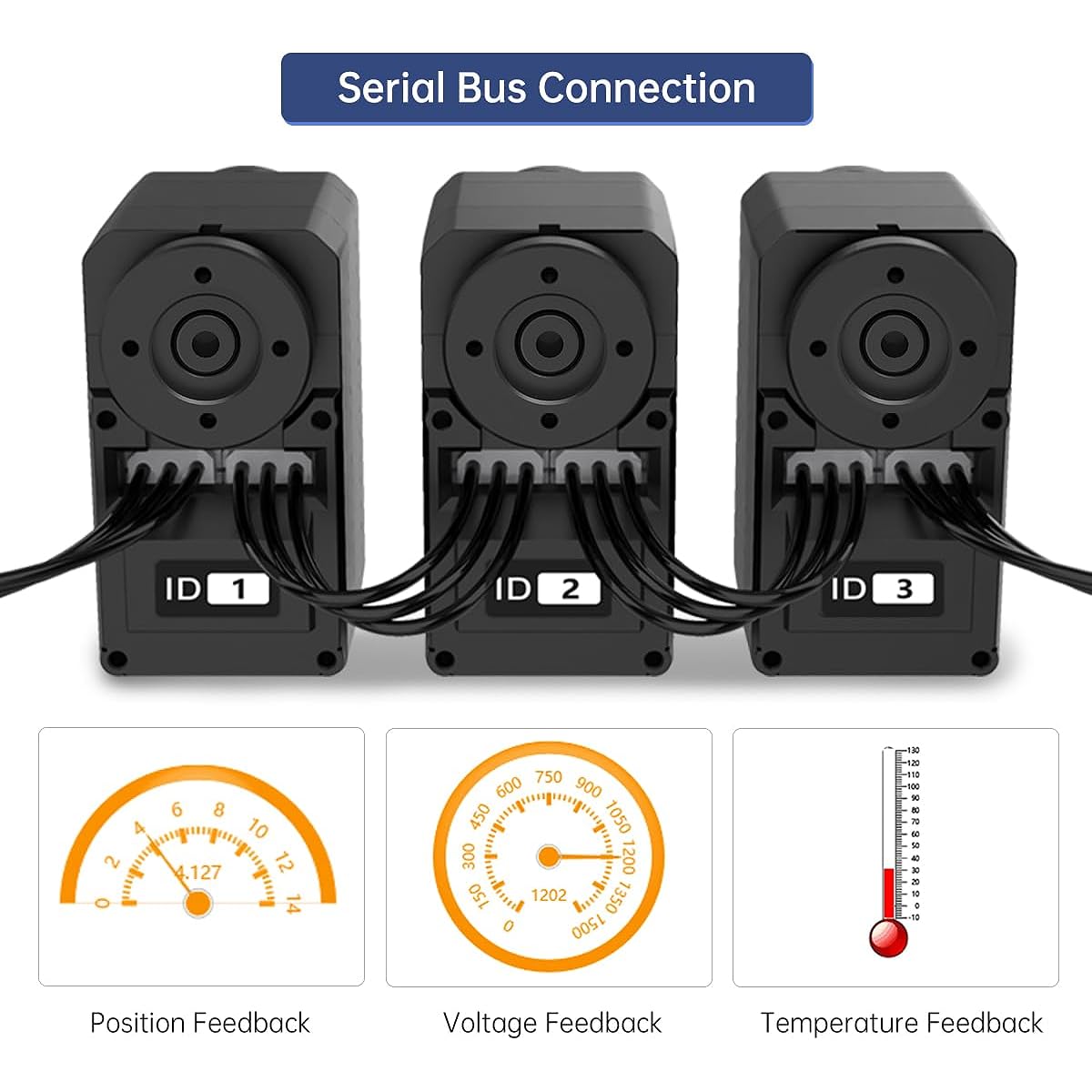

17kg Large torque. 15 kg/cm (208 oz/in) 6.6V; 17 kg/cm (236 oz/in) 7.4V. We provide communication protocols and detailed video tutorials. Real-time feedback of position, temperature, and voltage. There is a warning light on the top of the servo, and if the inside of the servo is over, the indicator will flash. Complete metal gear. More precision and significantly increased service life. Dual ball bearings: one is a driving ball bearing and the other is an assist ball bearing (supporting role). It uses a high precision potentiometer. Accuracy and linearity have been greatly improved. Precise movement meets the needs of robot making. The control board uses input/output ports to connect to serial servos, and the servos are connected in series through dual interfaces, reducing the use of serial ports. Simple arrangement makes the product more simple, elaborate and attractive.

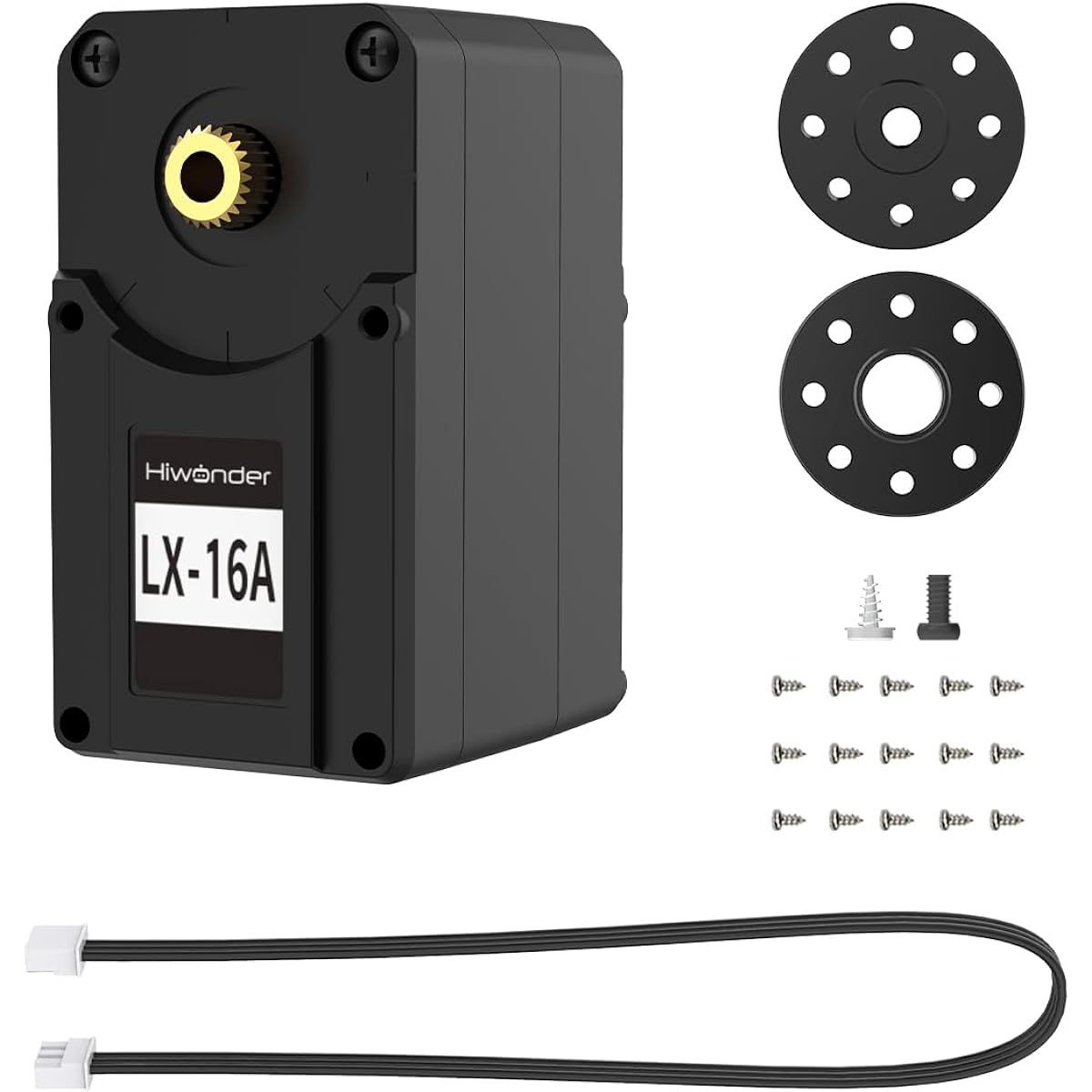

Important: The LX-16A bus servo uses our private serial protocol, so you must use our TTL/USB debug board (Arduino compatible) to control the bus servo. If you don't use it, nothing will work with this bus servo. The required debug board can be purchased separately at our store. (No matter how many servos you control, only one debug board is required). Features: An ID number can be set for each servo to identify it. Set ID to 1 by default. Can be rotated 240 degrees. Adjustable angle range from 0 to 240 degrees. Excellent linearity and precision control. It can rotate 360 degrees when the power is off. Dual ball bearings: one is the driving shaft and the other is the assist shaft (supporting role). Specifications: Weight: 52g (1.8oz). Dimensions: 1.78 x 0.97 x 1.38 inches. Speed: 0.18 seconds / 60 degrees at 6 volts, 0.16 seconds / 60 degrees at 7.4 volts. Servo accuracy: 0.24 degrees. Torque: 15 kg/cm (208 oz/in) at 6.6 volts, 17 kg/cm (236 oz/in) at 7.4 volts. Servo ID: 0 ~ 253. Storage user parameter setting after power off: Support. Control method: Serial command. Communication baud rate: 115200. Package Content: 1 x Bus Servo. 2 x servo horn 1 x main screw 1 x Surrogate screw 15 x M2 x 4 self-tapping screws. 1 x 20cm (7.87inch) servo wire 1 x Service Card Note: 1, Please access the link provided on the service card to get all the information (includes instruction manual, test software, PC software, communication protocols, instructional videos) (in Japanese ). 2, Please ignore the website on the product label. 3. Please refer to the torque parameters in our "" (accurate). Always avoid locked rotors while using the servo. A locked rotor will cause the internal current to increase by more than 7 times, raising the temperature and burning out the servo.
Product number: 43234-2708
Batteries used: No
Batteries included: No
Manufacturer recommended age: 6 years and older
Product model number: 43234-2708
Product size: 2.54 x 2.54 x 2.54 cm; 90.72 g
Important: The LX-16A bus servo uses our private serial protocol, so you must use our TTL/USB debug board (Arduino compatible) to control the bus servo. If you don't use it, nothing will work with this bus servo. The required debug board can be purchased separately at our store. (No matter how many servos you control, only one debug board is required). Features: An ID number can be set for each servo to identify it. Set ID to 1 by default. Can be rotated 240 degrees. Adjustable angle range from 0 to 240 degrees. Excellent linearity and precision control. It can rotate 360 degrees when the power is off. Dual ball bearings: one is the driving shaft and the other is the assist shaft (supporting role). Specifications: Weight: 52g (1.8oz). Dimensions: 1.78 x 0.97 x 1.38 inches. Speed: 0.18 seconds / 60 degrees at 6 volts, 0.16 seconds / 60 degrees at 7.4 volts. Servo accuracy: 0.24 degrees. Torque: 15 kg/cm (208 oz/in) at 6.6 volts, 17 kg/cm (236 oz/in) at 7.4 volts. Servo ID: 0 ~ 253. Storage user parameter setting after power off: Support. Control method: Serial command. Communication baud rate: 115200. Package Content: 1 x Bus Servo. 2 x servo horn 1 x main screw 1 x Surrogate screw 15 x M2 x 4 self-tapping screws. 1 x 20cm (7.87inch) servo wire 1 x Service Card Note: 1, Please access the link provided on the service card to get all the information (includes instruction manual, test software, PC software, communication protocols, instructional videos) (in Japanese ). 2, Please ignore the website on the product label. 3. Please refer to the torque parameters in our "" (accurate). Always avoid locked rotors while using the servo. A locked rotor will cause the internal current to increase by more than 7 times, raising the temperature and burning out the servo.
Product number: 43234-2708
Batteries used: No
Batteries included: No
Manufacturer recommended age: 6 years and older
Product model number: 43234-2708
Product size: 2.54 x 2.54 x 2.54 cm; 90.72 g
