LewanSoul LX-16A Full Metal 17kg High Torque Serial Bus Servo Robotic Servo with Debug Board and Servo Controller(Pack of 5, Control Angle 240)

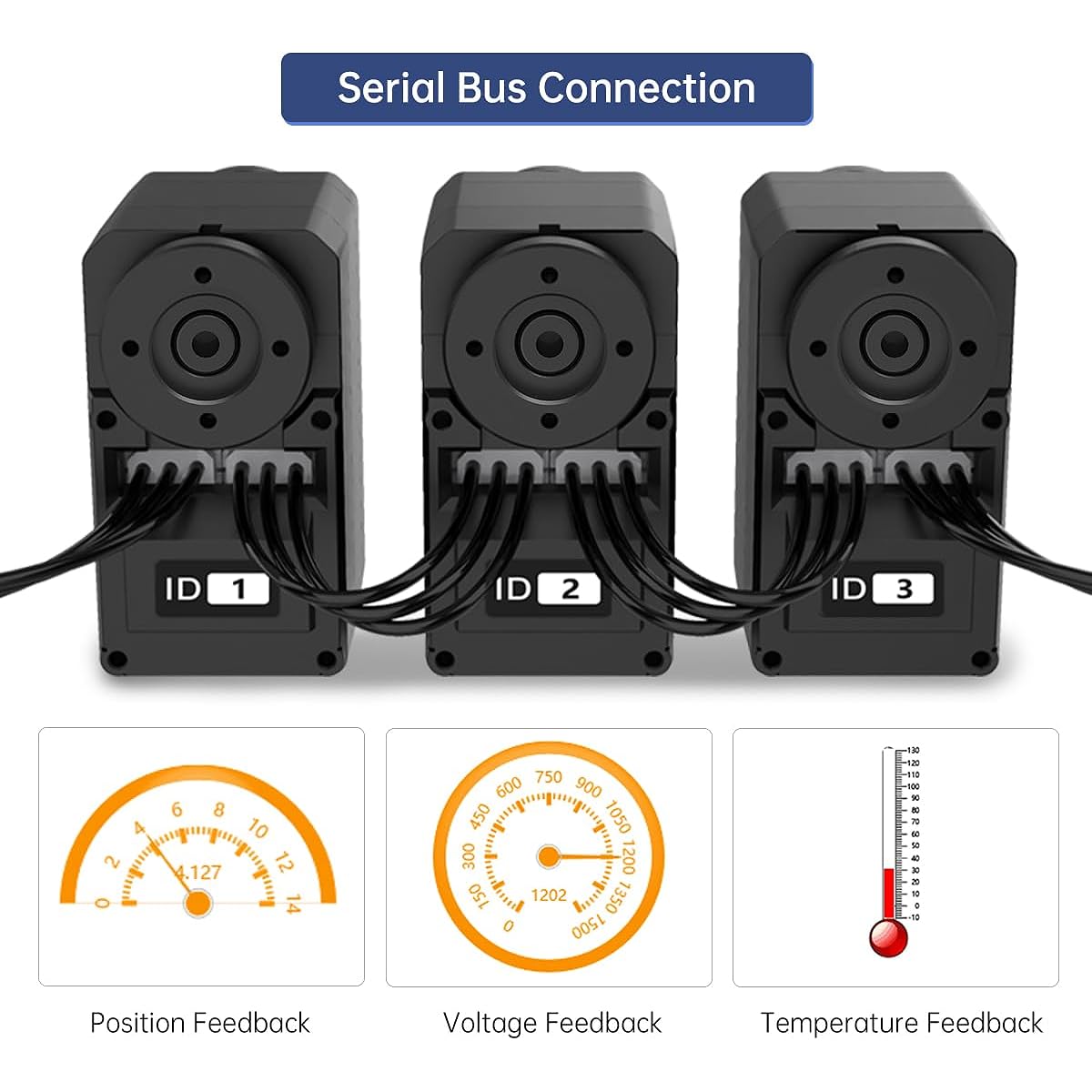

17 kg more torque. 15 kg · cm208 oz · ) @ 6.6 V; 17 kg · cm236 oz · in ) @ 7.4 V. We have it ready. And detailed video tutorial with communication protocols to set real-time position, temperature and voltage. On the top side of the servo, there is a warning light, and in the event of overcurrent, overheating or locked-rotor, the indicator will flash with full metal gears. Improved accuracy for that system greatly increased lifespan. Dual ball bearing one assistant uses one driving ball bearing, the role of ball bearing support Pressure machine, has a new design with high definition. Accuracy and linearity have been greatly improved.For precisely setting and moving to meet the needs of the robot, use the I/O port on the control board for serial servo connections, from which the servos are connected in series. It offers dual interfaces to reduce the usage of serial ports. Easy wiring makes the product more simple, special and attractive

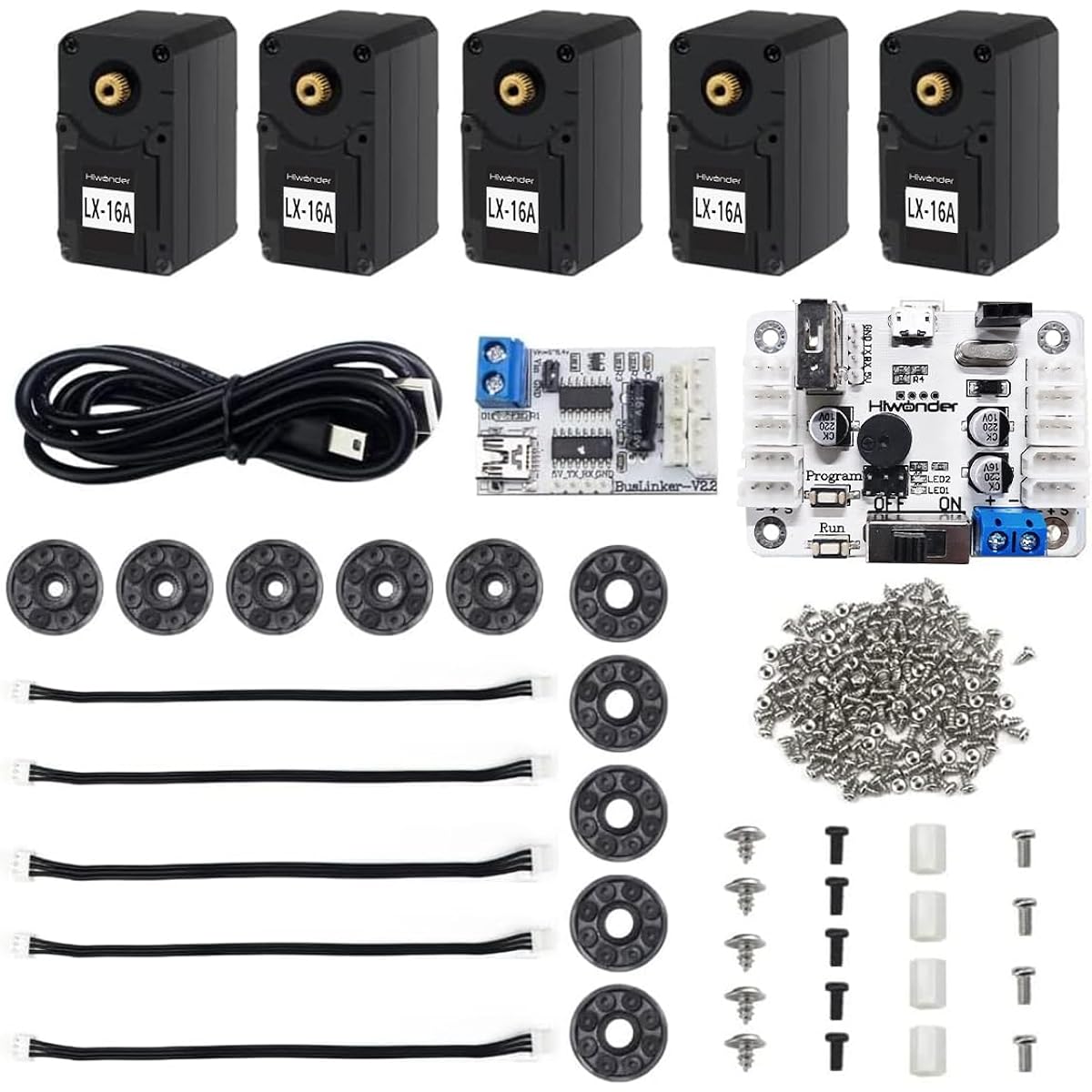

IMPORTANT: To control the LX-16A bus servo, our TTL/USB debug board must use a private serial protocol that supports Arduino, otherwise you can control the bus servo. The debug board must be purchased separately from our store. No matter how many servos you need to control, there is a debug board function. Get an ID number for each servo. Value of Servo ID can be set as default ID 1. You can also set a 240 degree rotation. Adjustable angle range is 0240 degrees, excellent linearity and precision control. Can be rotated within 360 degrees, power can not be turned off. Dual ball bearings: one drive shaft, one assistant shaft supports roll Specifications: Weight: 52g (1.8oz) Dimensions: 1.78 * 0.97 * 1.38 Speed: 0.18sec / 60° @ 6V, 0.16sec / 60° 7.4 V Servo Accuracy: 0.24° Torque 15 kg · cm (208 oz · ) @ 6.6 V; 17 kg · cm (236 oz · in) @ 7.4 V Minimum Operating Current: 1 A Servo ID: 0 ~ 253 After storage user Parameter setting power off: Support Package contents: 1 x Bus servo 1 x Bus servo controller 1 x TTL/USB debugging board 10 x Servo horn 5 x Main screw 5 x Security screw 75 x M2*4 Self-tapping screw 4 x M3*6 Machine screws 4 x M3*8 nylon row screws 5 x 20cm (7.87inch) servo wire 1 x Service card Note: 1. Access all information links defined on the service card and include the user manual , During software testing, PC software, communication protocols, video tutorials Windows only 2, Please ignore the product label. 3, Please refer to "Accuracy" on the torque parameters of our . Always avoid locked-rotors when using servos.


Product number: ‎LX-16A
Quantity: ‎5
Batteries used: ‎No
Batteries included: ‎No
Target gender: ‎Unisex
Manufacturer recommended age: 12 years and older
Product model number: LX-16A
Product size: 3.51 x 2.46 x 4.52 cm; 430.91 g
