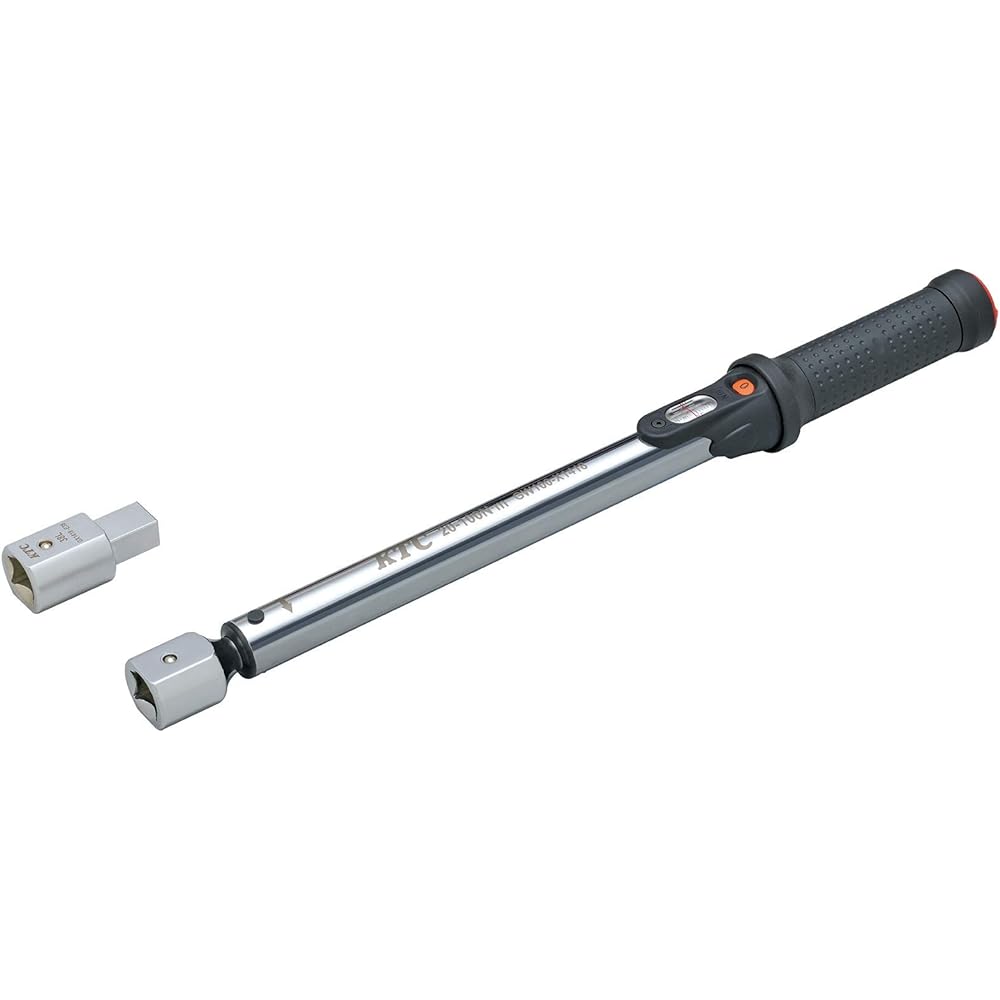

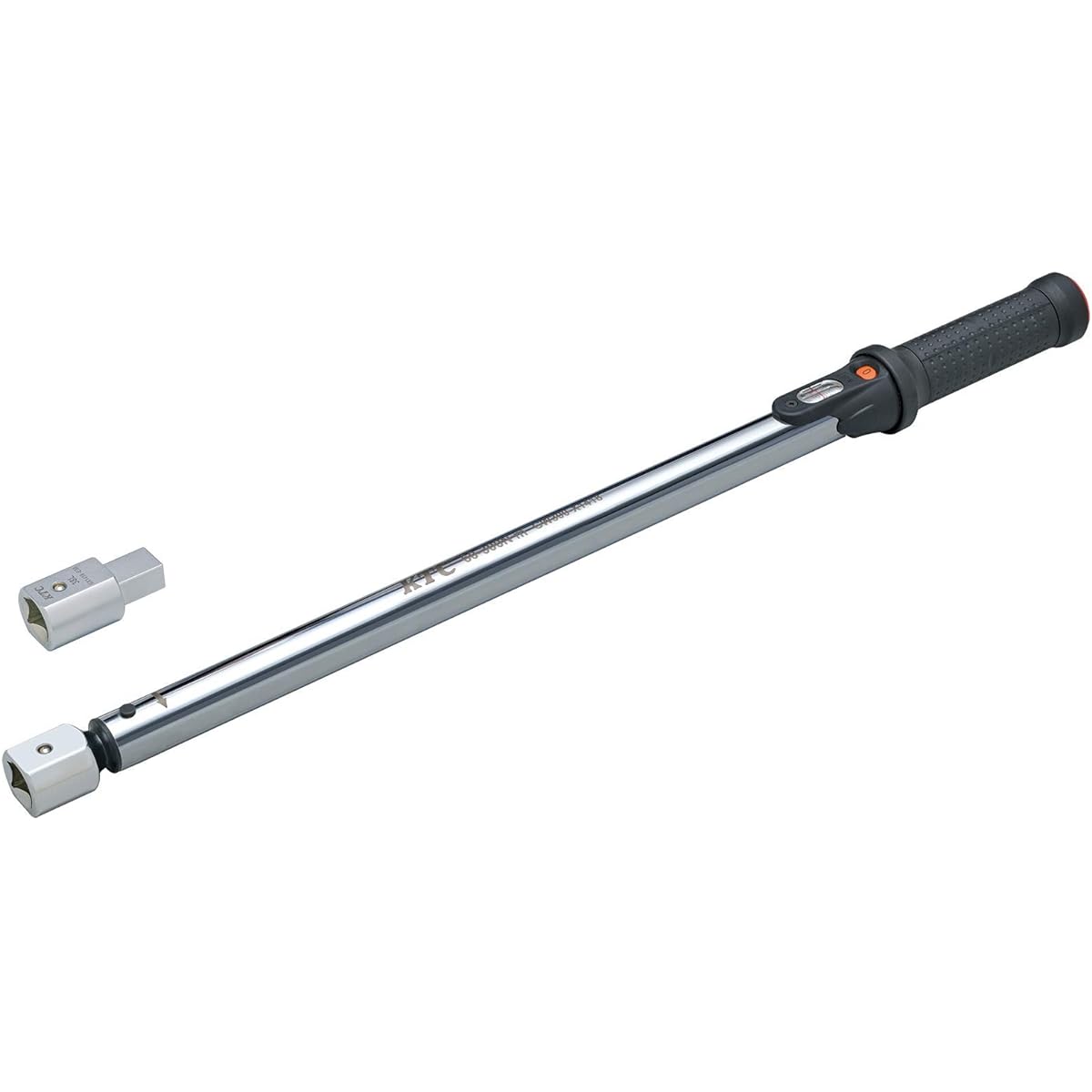

Kyoto Machinery Tools (KTC) 14X18 Insert Preset Type Torque Wrench Head Replaceable Set Torque Range 60-300Nm TGW300202
Kyoto Machinery Tools (KTC) 14X18 Insert Preset Type Torque Wrench Head Replaceable Set Torque Range 60-300Nm TGW300202
Regular price
$228.00 USD
Regular price
Sale price
$228.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Insert: 14X18 Torque range 60-300Nm Minimum scale: 2 Torque wrench size (mm) L1: 597.3, L2: 531, B: 31.5, T: 44.5 Case size (mm): W650XD78XH85

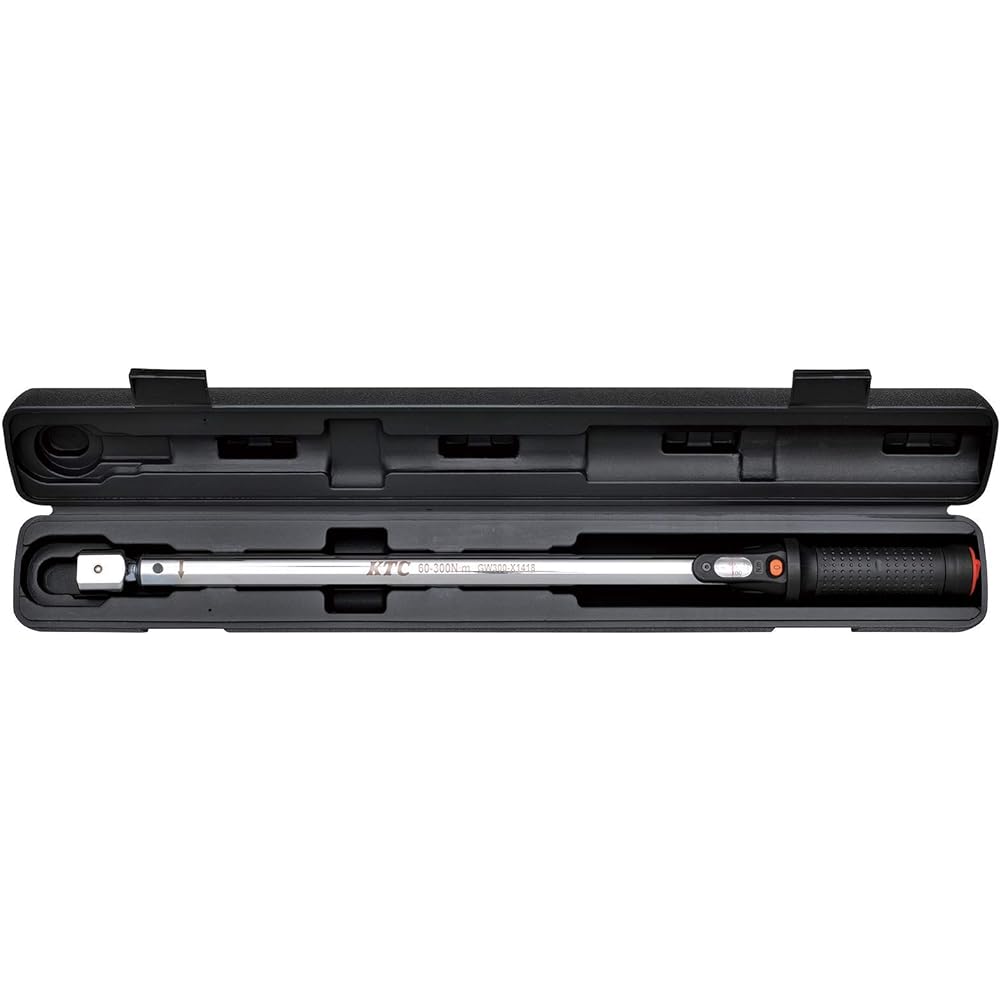

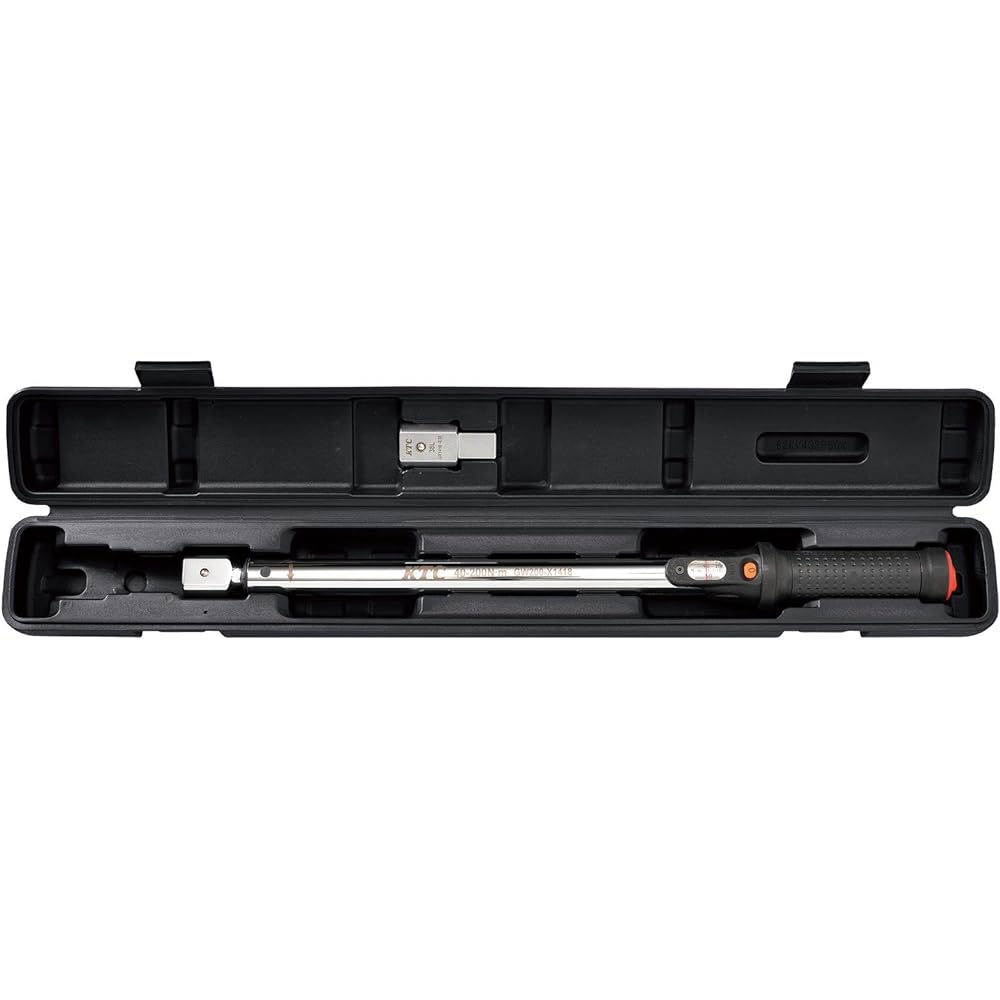

●For tightening bolts to specified torque. ●Based on the German TL standard, which further expands the scope of use, the insertion angle is based on the KTC standard. ●Highly visible scale allows for more comfortable torque setting work. ●When the preset torque is reached, you will feel a slight shock to your hand and hear a "click" sound to confirm that tightening is complete. *There may be cases where there is no sound due to the setting torque or individual differences between products. ●The grip is made of elastomer resin that is resistant to deterioration and provides a good fit. ●Equipped with a locking mechanism that prevents unexpected torque value changes. ●Measurement accuracy is ±3%, clearing ISO standards. *Measurement direction is only to the right (clockwise). ●Comes with a durable resin case for convenient storage. *Please be sure to use the included extension replacement head with it attached.
Brand: Kyoto Machinery Tools (KTC)
Package size: 67.09 x 10 x 8.1 cm; 2.22 kg
Color: Silver/Black
Last name on nameplate: Torque range 60-300Nm
Material: ABS
Power supply: crank
Torque: 300 Newton Meters
Accessories: Torque wrench body (GW300-X1418), extension exchange head (GX0912) -E38), dedicated resin case Product weight: 2.22 Kilograms
●For tightening bolts to specified torque. ●Based on the German TL standard, which further expands the scope of use, the insertion angle is based on the KTC standard. ●Highly visible scale allows for more comfortable torque setting work. ●When the preset torque is reached, you will feel a slight shock to your hand and hear a "click" sound to confirm that tightening is complete. *There may be cases where there is no sound due to the setting torque or individual differences between products. ●The grip is made of elastomer resin that is resistant to deterioration and provides a good fit. ●Equipped with a locking mechanism that prevents unexpected torque value changes. ●Measurement accuracy is ±3%, clearing ISO standards. *Measurement direction is only to the right (clockwise). ●Comes with a durable resin case for convenient storage. *Please be sure to use the included extension replacement head with it attached.
Brand: Kyoto Machinery Tools (KTC)
Package size: 67.09 x 10 x 8.1 cm; 2.22 kg
Color: Silver/Black
Last name on nameplate: Torque range 60-300Nm
Material: ABS
Power supply: crank
Torque: 300 Newton Meters
Accessories: Torque wrench body (GW300-X1418), extension exchange head (GX0912) -E38), dedicated resin case Product weight: 2.22 Kilograms
