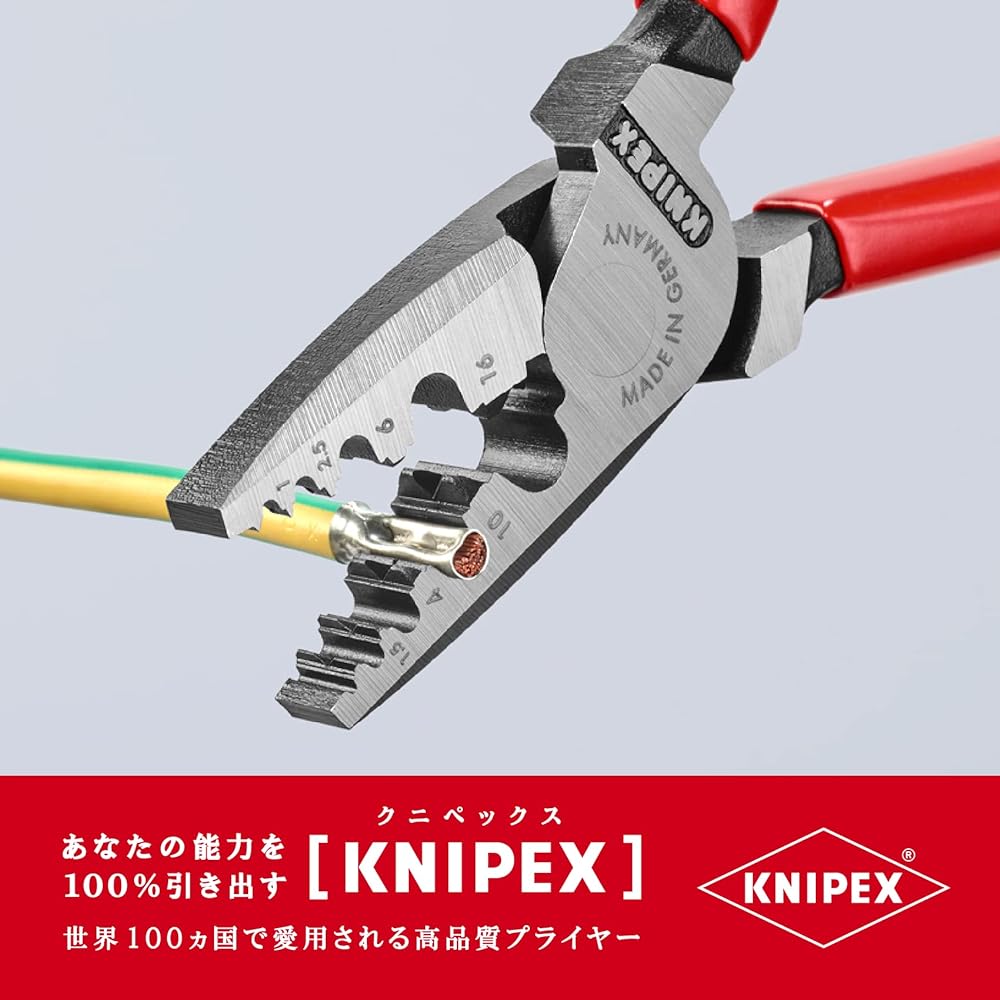

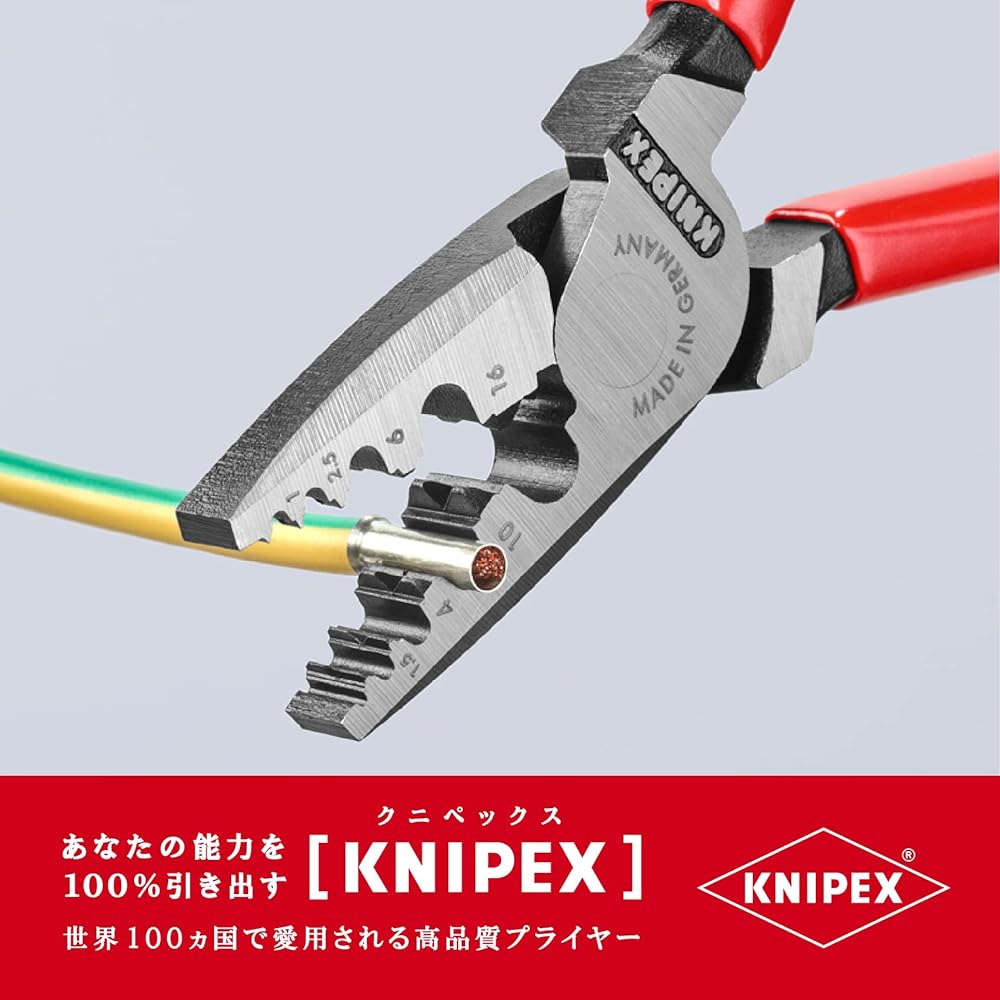

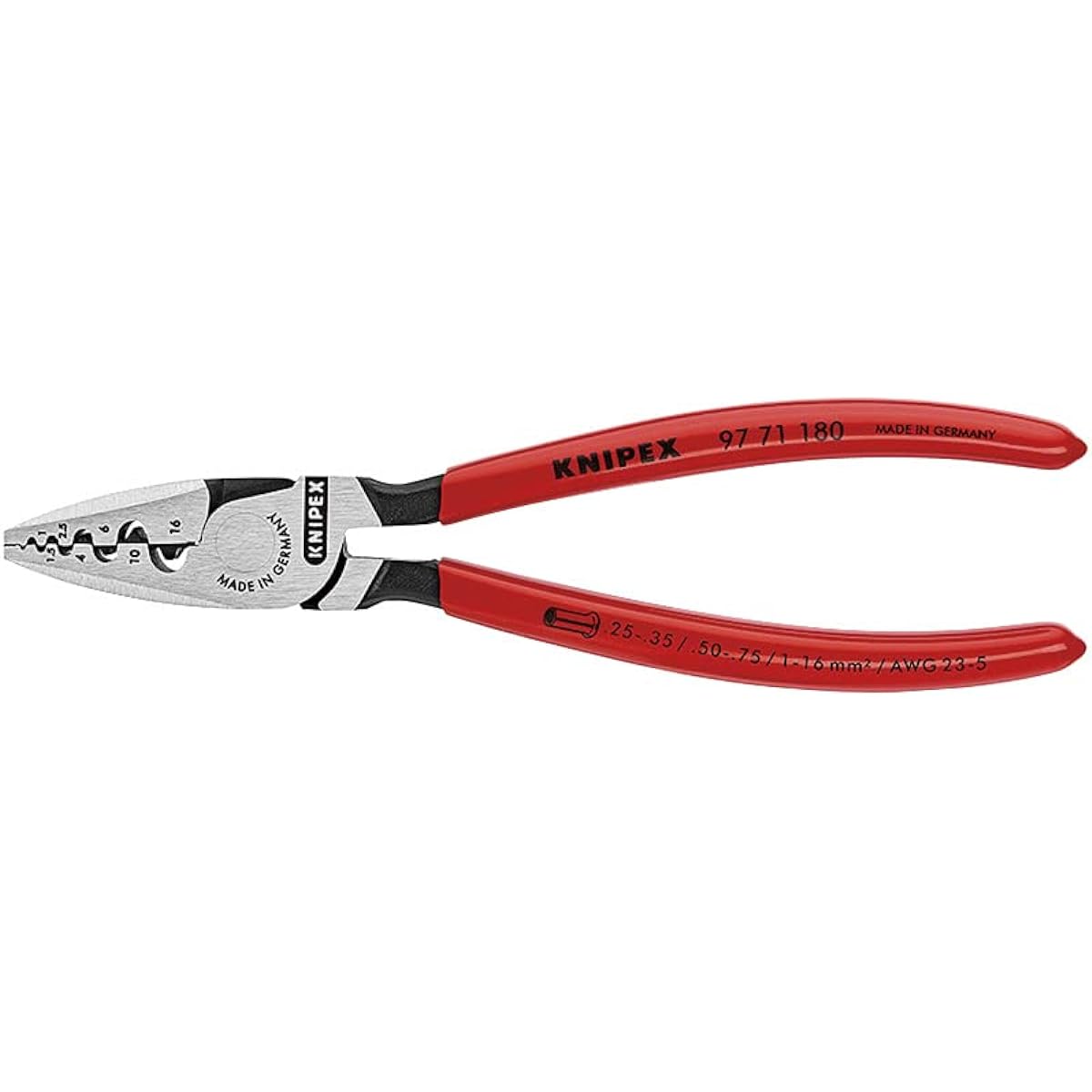

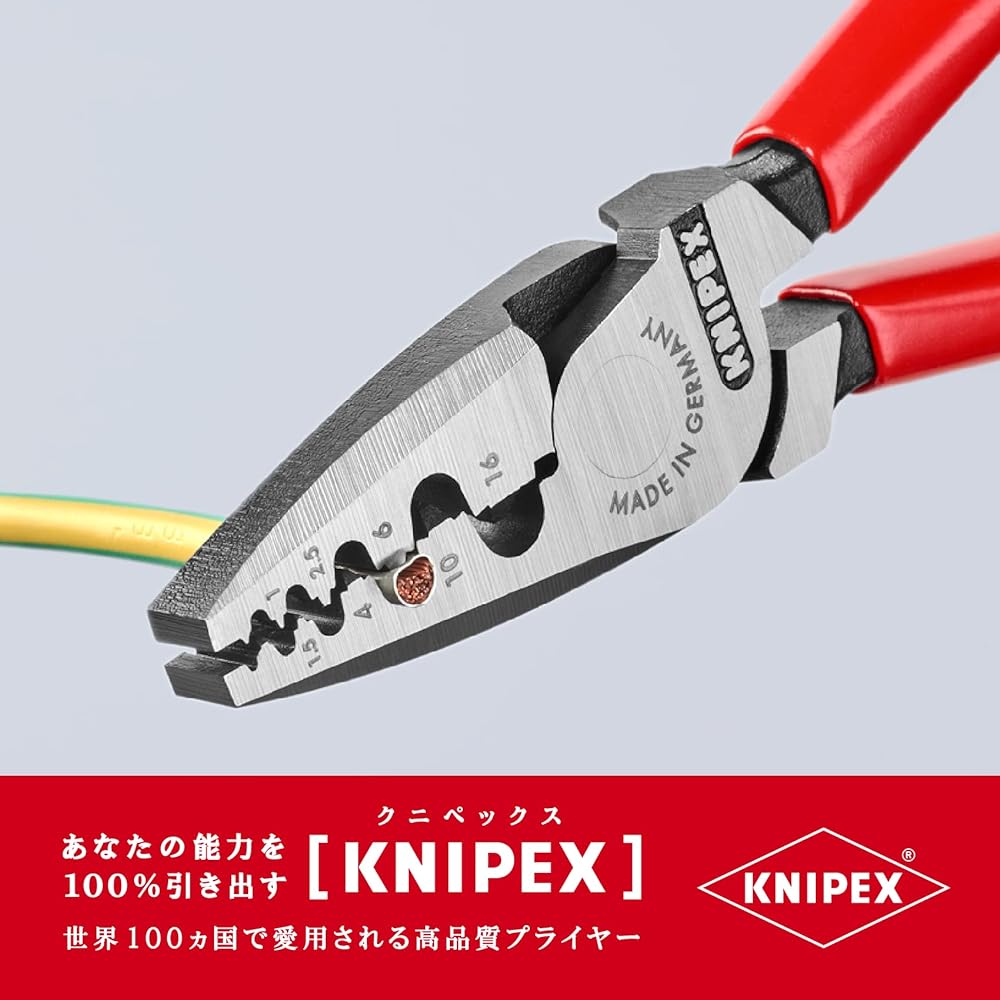

KNIPEX 9771-180 Crimping pliers for end sleeves (SB)

● Head finish: Polished ● Handle specifications: Plastic coating ● Total length (mm): 180 ● Crimping capacity (mm2): 0.25-16 ● Crimping capacity (AWG): 23-5 ● Number of crimping steps: 9 ● Mass (g) ): 205

●For crimping end sleeves from 0.25 to 16 mm2 in accordance with DIN46228 Clauses 1 and 4. ●Crimp the sleeve and conductor with the trapezoidal crimping part according to the size indicated. ●The crimp part corresponds to 9 sizes. ●Material is special tool steel that has been oil quenched and tempered. ●Head finish: Polished ●Handle specifications: Plastic coating ●Crimping capacity (mm2): 0.25-16.0●Crimping capacity (AWG): 23-5●Mass (g): 265●For end sleeve crimping

< br>Manufacturer: KNIPEX Brand: KNIPEX Model name: 9771-180 Product size: 23.5 x 8.41 x 1.91 cm; 224 g Batteries: 1 unknown battery br>Product model number: 97 71 180 SB
Discontinued by the manufacturer: No
Product dimensions: Depth x Width x Height: 23.5 x 8.4 x 1.9 cm
Color: ‎Grey, Red
Product weight: ‎224 g
