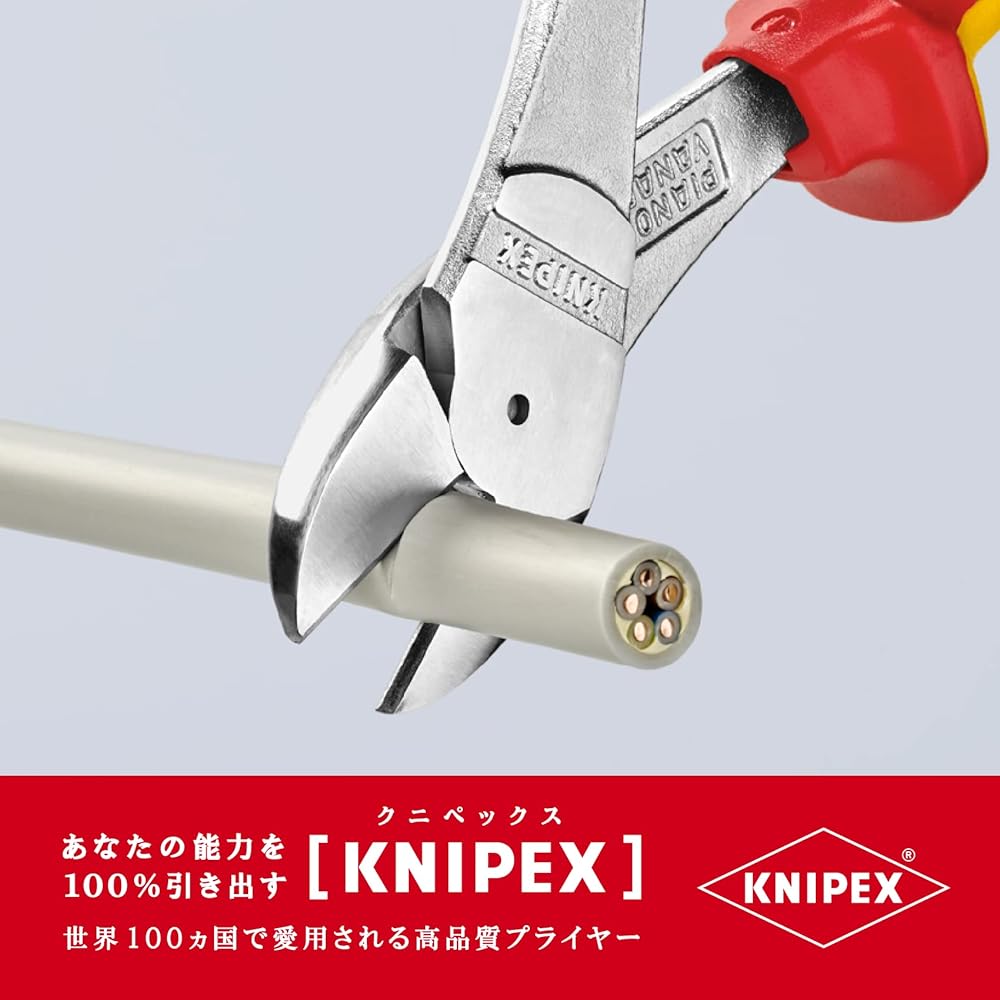

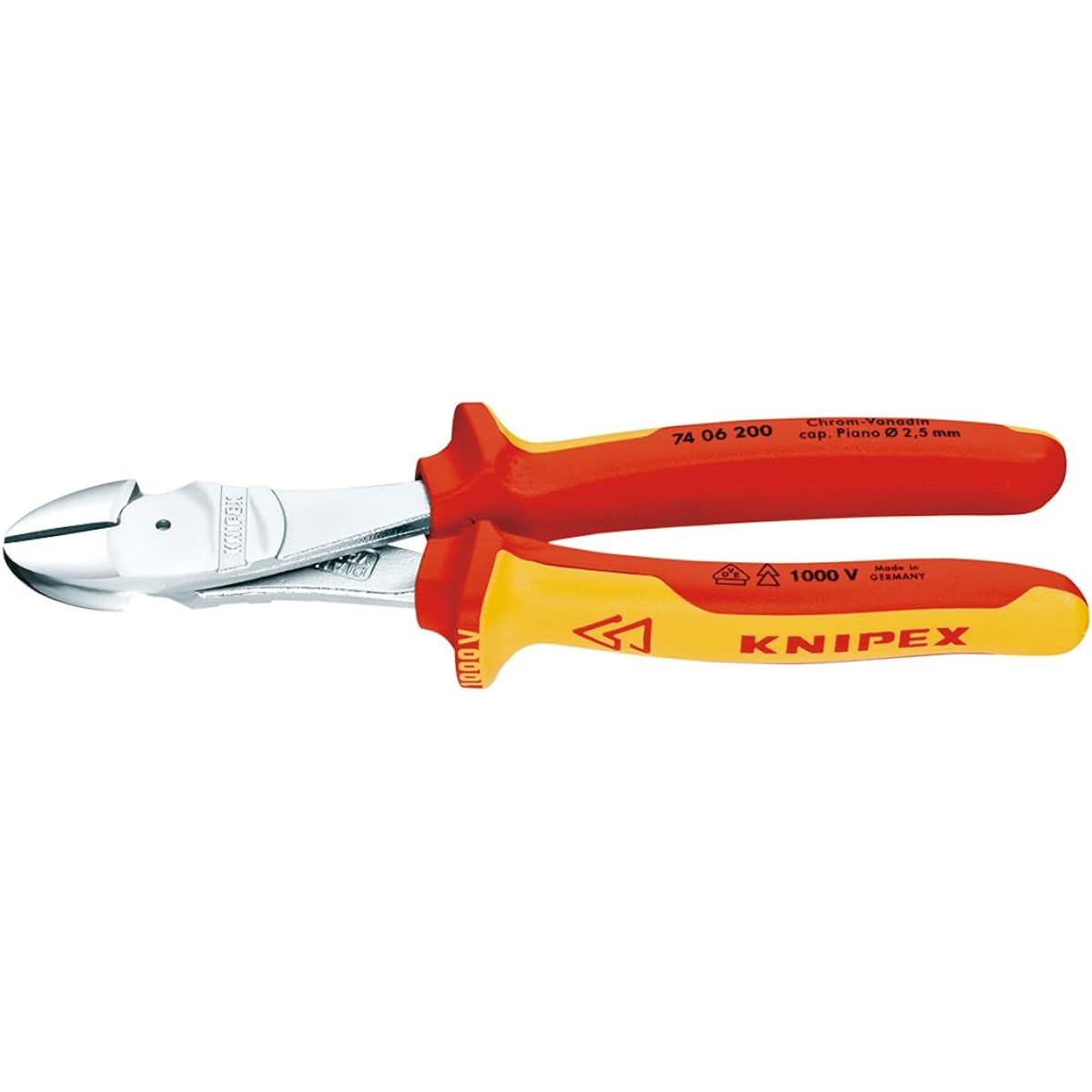

KNIPEX 7406-200 Insulated strong diagonal nipper 1000V (SB)

●Cutting capacity (soft wire; φmm): >4.0●Cutting capacity (medium hard wire; φmm): 4.2●Cutting capacity (hard wire; φmm): 3●Cutting capacity (piano wire; φmm): 2.5●Length Size (mm): 200 ●Mass (g): 305 ●The joint uses a forged shaft caulking for excellent durability. ●Suitable for cutting various wires including piano wire. ●Optimal blade position and angle, design that maximizes the principle of leverage, and ergonomic handle shape - these three advantages provide high cutting ability with less force. ●Reducing the burden by 21%: When cutting medium-hard wire with a diameter of 2.5 mm, a general diagonal nipper (160 mm) requires a force of 370 N (37.0 kp), but a powerful diagonal nipper (similar to the same type) requires a force of 370 N (37.0 kp). size), it can be cut with a force of only 293N (29.3kp). ●250mm long diagonal nippers can cut copper wire up to 16mm2 and aluminum wire up to 35mm.

●The joint uses a forged shaft caulking for excellent durability. ●Suitable for cutting various wires including piano wire. ●Optimal blade position and angle, design that maximizes the principle of leverage, and ergonomic handle shape - these three advantages provide high cutting ability with less force. ●21% load reduction: When cutting medium-hard wire with a diameter of 2.5 mm, a general diagonal nipper (160 mm) requires a force of 370 N (37.0 kp), but a powerful diagonal nipper (same size) requires a force of 370 N (37.0 kp). can be used to cut with just 293N (29.3kp) of force. ●250mm long diagonal nippers can cut copper wire up to 16mm2 and aluminum wire up to 35mm. ●Head finish: Chrome plating ●Handle specifications: 1000V insulation (VDE insulation tested) ●The 1000V insulation handle is made of two types of materials and has a two-tone color of red and yellow to differentiate it from non-insulated tools. I am. ●The hardness of the carefully hardened blade is approximately HRC64. ●Material is oil quenched and tempered chrome vanadium electric steel ●Cutting capacity (soft wire; φmm):>4.0●Cutting capacity (medium hard wire; φmm): 4.2●Cutting capacity (hard wire; φmm): 3● Cutting capacity (piano wire; φmm): 2.5 ● Length (mm): 200 ● Mass (g): 305


Manufacturer: ‎Knipex
Brand: ‎Knipex KNIPEX
Products Size: 25.5 x 8.41 x 2.01 cm; 308.44 g
Product model number: 74 06 200 SB
Discontinued by manufacturer: No
Product dimensions: Depth x Width x Height : ‎25.5 x 8.4 x 2 cm
Color: ‎Red, Silver, Yellow
Product weight: ‎308 g
