Auto Parts Tokyo

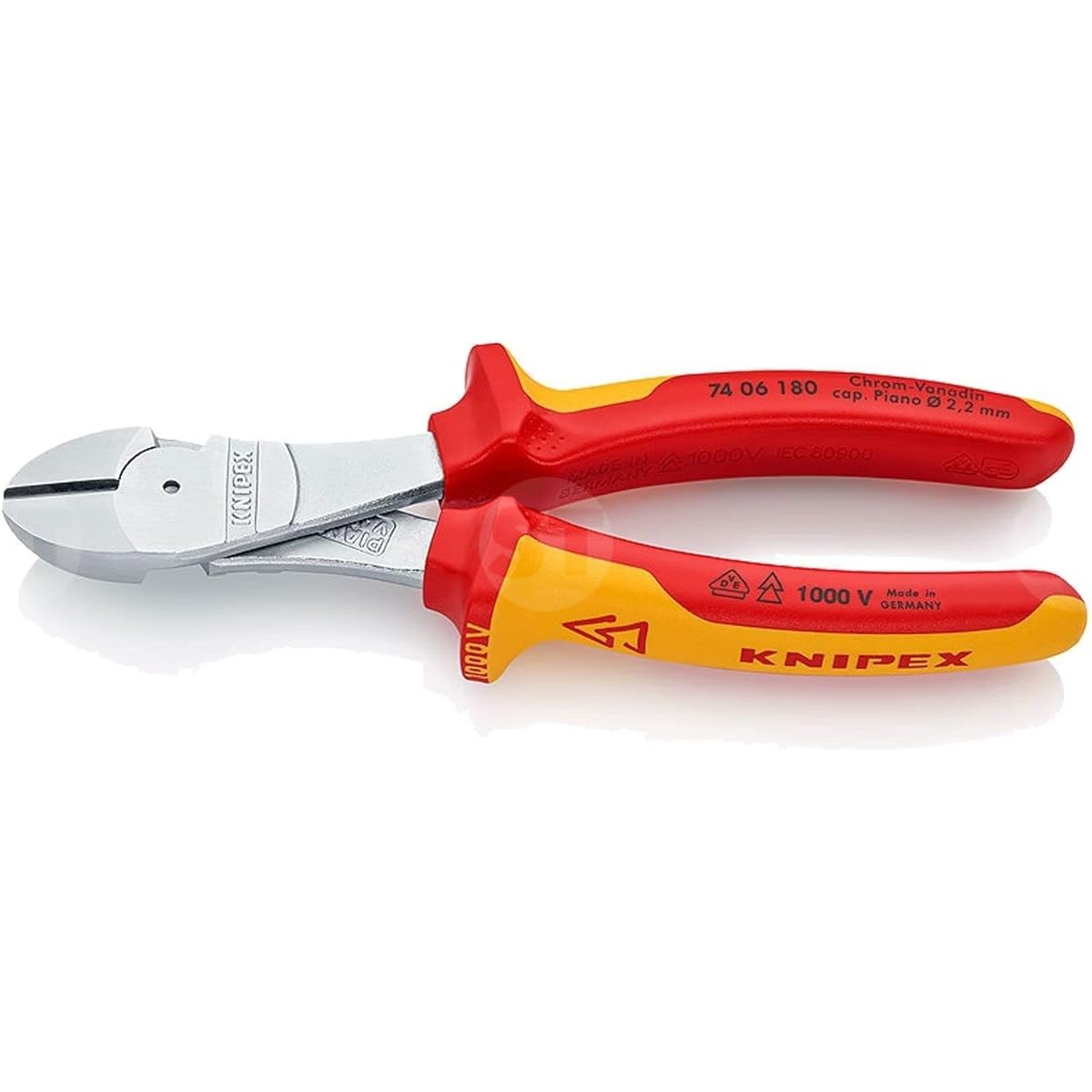

KNIPEX 7406-180 Insulated strong diagonal nipper 1000V (SB)
KNIPEX 7406-180 Insulated strong diagonal nipper 1000V (SB)
Regular price
$81.00 USD
Regular price
Sale price
$81.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Head finish: Chrome plated Handle specifications: 1000V insulation (VDE insulation tested) Cutting surface: Umbrella-shaped Cutting capacity (medium hard wire; φmm): 3.8 Cutting capacity (hard wire; φmm): 2.7
●The joint uses a forged shaft caulking for excellent durability. ●Suitable for cutting various wires including piano wire. ●Optimal blade position and angle, design that maximizes the principle of leverage, and ergonomic handle shape - these three advantages provide high cutting ability with less force. ●21% load reduction: When cutting medium-hard wire with a diameter of 2.5 mm, a general diagonal nipper (160 mm) requires a force of 370 N (37.0 kp), but a powerful diagonal nipper (same size) requires a force of 370 N (37.0 kp). can be used to cut with just 293N (29.3kp) of force. ●250mm long diagonal nippers can cut copper wire up to 16mm2 and aluminum wire up to 35mm. ●Head finish: Chrome plating ●Handle specifications: 1000V insulation (VDE insulation tested) ●The 1000V insulation handle is made of two types of materials and has a two-tone color of red and yellow to differentiate it from non-insulated tools. I am. ●The hardness of the carefully hardened blade is approximately HRC64. ●Material is oil quenched and tempered chrome vanadium electric steel ●Cutting capacity (soft wire; φmm):>4.0●Cutting capacity (medium hard wire; φmm): 3.8●Cutting capacity (hard wire; φmm): 2.7● Cutting capacity (piano wire; φmm): 2.2 ● Length (mm): 180 ● Mass (g): 260
Manufacturer: Knipex
Brand: Knipex KNIPEX
Model Name: 7406-180
Product size: 24.51 x 8.41 x 3 cm; 281.23 g
Product model number: 74 06 180 SB
Discontinued by manufacturer: No
Product dimensions: Depth x Width x Height: 24.5 x 8.4 x 3 cm
Product weight: 281 g
●The joint uses a forged shaft caulking for excellent durability. ●Suitable for cutting various wires including piano wire. ●Optimal blade position and angle, design that maximizes the principle of leverage, and ergonomic handle shape - these three advantages provide high cutting ability with less force. ●21% load reduction: When cutting medium-hard wire with a diameter of 2.5 mm, a general diagonal nipper (160 mm) requires a force of 370 N (37.0 kp), but a powerful diagonal nipper (same size) requires a force of 370 N (37.0 kp). can be used to cut with just 293N (29.3kp) of force. ●250mm long diagonal nippers can cut copper wire up to 16mm2 and aluminum wire up to 35mm. ●Head finish: Chrome plating ●Handle specifications: 1000V insulation (VDE insulation tested) ●The 1000V insulation handle is made of two types of materials and has a two-tone color of red and yellow to differentiate it from non-insulated tools. I am. ●The hardness of the carefully hardened blade is approximately HRC64. ●Material is oil quenched and tempered chrome vanadium electric steel ●Cutting capacity (soft wire; φmm):>4.0●Cutting capacity (medium hard wire; φmm): 3.8●Cutting capacity (hard wire; φmm): 2.7● Cutting capacity (piano wire; φmm): 2.2 ● Length (mm): 180 ● Mass (g): 260
Manufacturer: Knipex
Brand: Knipex KNIPEX
Model Name: 7406-180
Product size: 24.51 x 8.41 x 3 cm; 281.23 g
Product model number: 74 06 180 SB
Discontinued by manufacturer: No
Product dimensions: Depth x Width x Height: 24.5 x 8.4 x 3 cm
Product weight: 281 g
