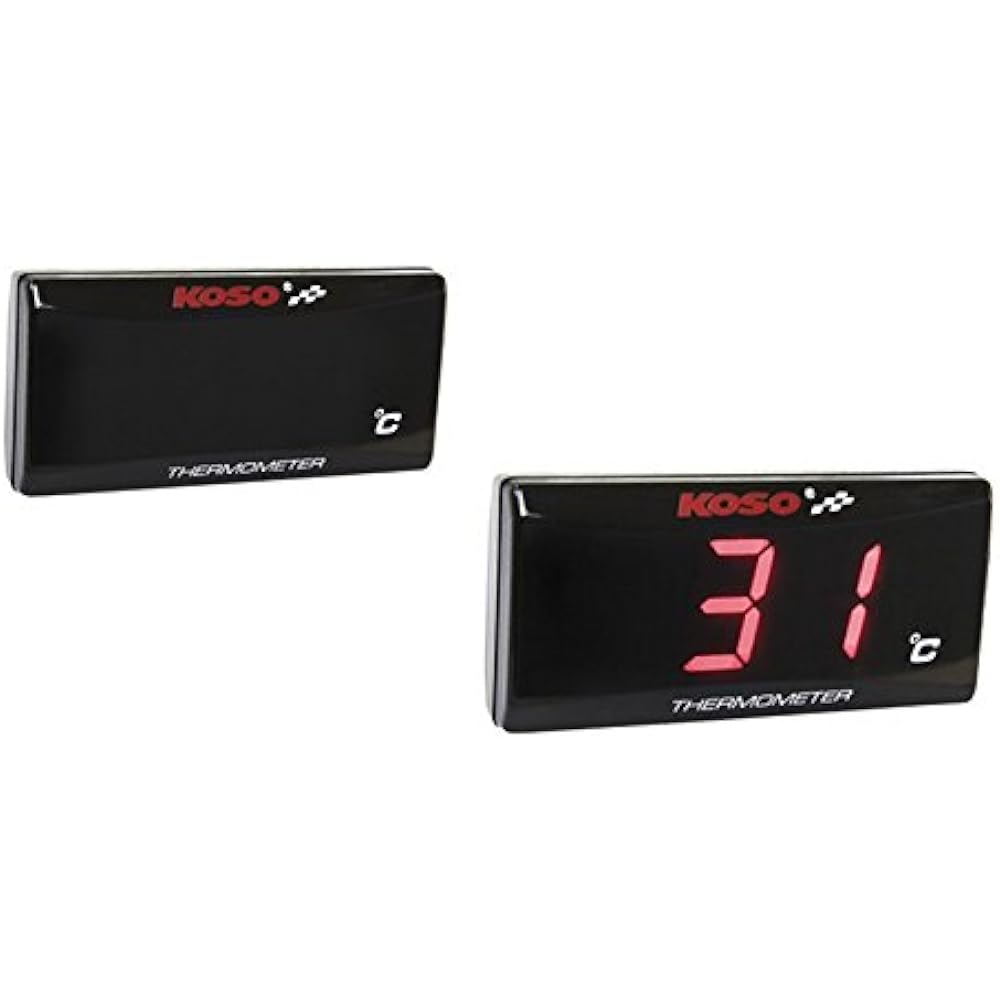

KOSO LED oil temperature gauge (red luminescence) M18 x P1.5 sensor included ZRX1200 Daeg/ZRX1200/ZRX1100/ZZR1100/Zephyr 1100/GPZ1100/ZX-10/GPZ900R/GPZ750R/ZRX400/Ninja 250R

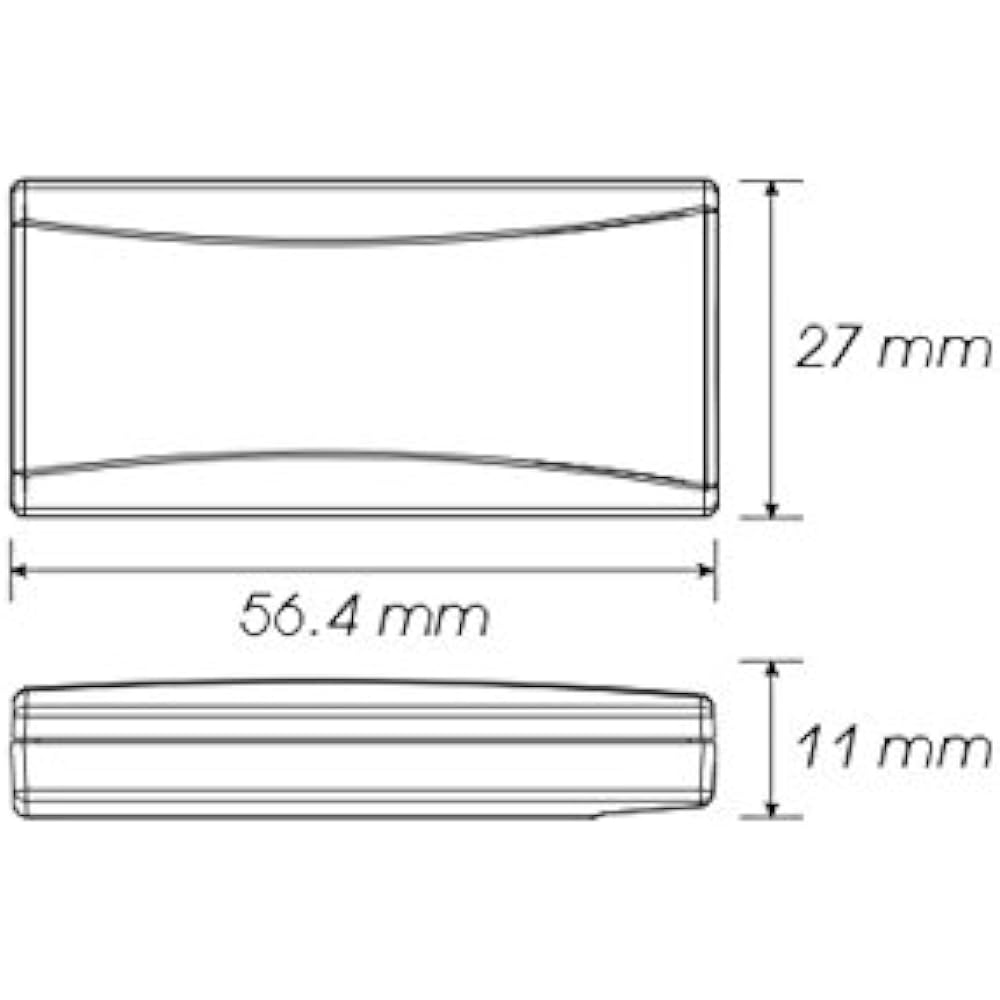

KOSO Digital LED Slim Meter Waterproof design Red LED light emitting for 12V only Special model with a sensor that can be used to measure oil temperature Displayable range: 0 to 120℃ Warning function: With flash function (when over 120℃) M18/ which is common in Kawasaki series 1.5mm pitch oil temperature sensor removal bolt included Size: length x width x thickness = 27 x 56 x 11 (mm)

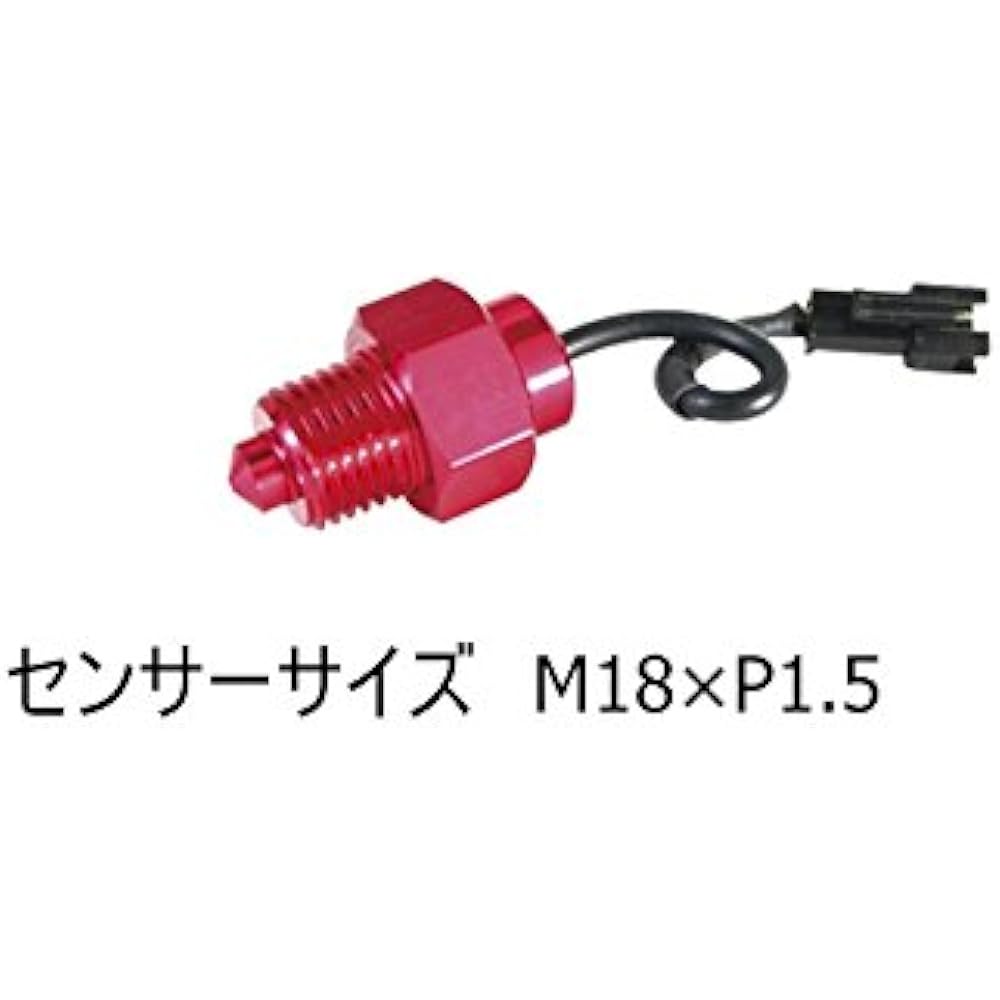

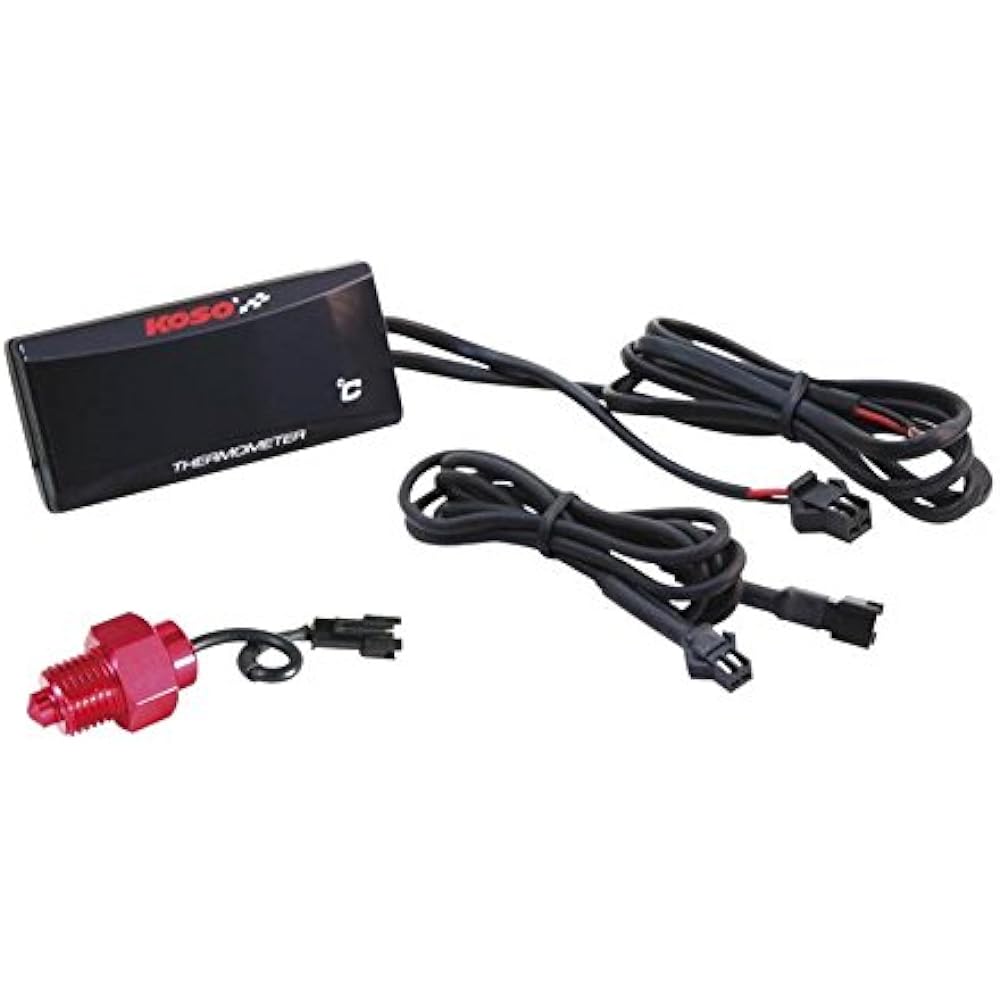

KOSO Digital LED Slim Meter (*KOSO official product) Special model with a sensor that can be used to measure oil temperature ■Specifications/Size Waterproof design Red LED light emitting 12V only ■Size Length x Width x Thickness = 27 x 56 x 11 (mm) ) ■Specifications Displayable range: 0 to 120℃ Minimum change unit: 1℃ Warning function: With flash function (when over 120℃) Working voltage: DC12V Operating range: Outside temperature -10℃ to +60℃ Body weight: Approx. 22g ■Set contents Meter body x 1 Interrupt connector x 2 Velcro x 1 1m temperature sensor extension harness x 1 General-purpose oil temperature sensor M18/1.5mm pitch x 1 Japanese manual ■Vehicle that can measure oil temperature with M18/1.5mm pitch List [Kawasaki] ZRX1200 DAEG 09-10 (Left crank lower oil gallery) ZRX1200/II/1100II 97-08 (Left crank lower oil gallery) ZZR1100 90- (Left crank lower oil gallery) Zephyr 1100 92- (Left crank lower oil gallery) GPZ1100 95- (Left crank lower oil gallery) ZX-10 (Left crank lower oil gallery) GPZ900R (Left crank lower oil gallery) GPZ750R 90-93 (Left crank lower oil gallery) ZRX400/II (Right crank lower oil gallery ) Ninja 250R 08-12 (Oil gallery under right crank) *The location in parentheses is the oil temperature sensor replacement location.*Please be sure to check the sensor size as the model year above may use a different size sensor. *Maximum harness length is 1.18m. *Mounting stay is not included. Please note that the length may not be long enough depending on the installation location and how the wiring is routed.


Manufacturer: ‎KOSO
Brand: ‎Koso
Package size: 9.6 x 6.4 x 6.4 cm; 240 g
Manufacturer reference: ‎OILTEMP-RD< br>Product weight: ‎240 g
