KONYO SUN UP Digital Torque Adapter 9.5mm Square AD-135

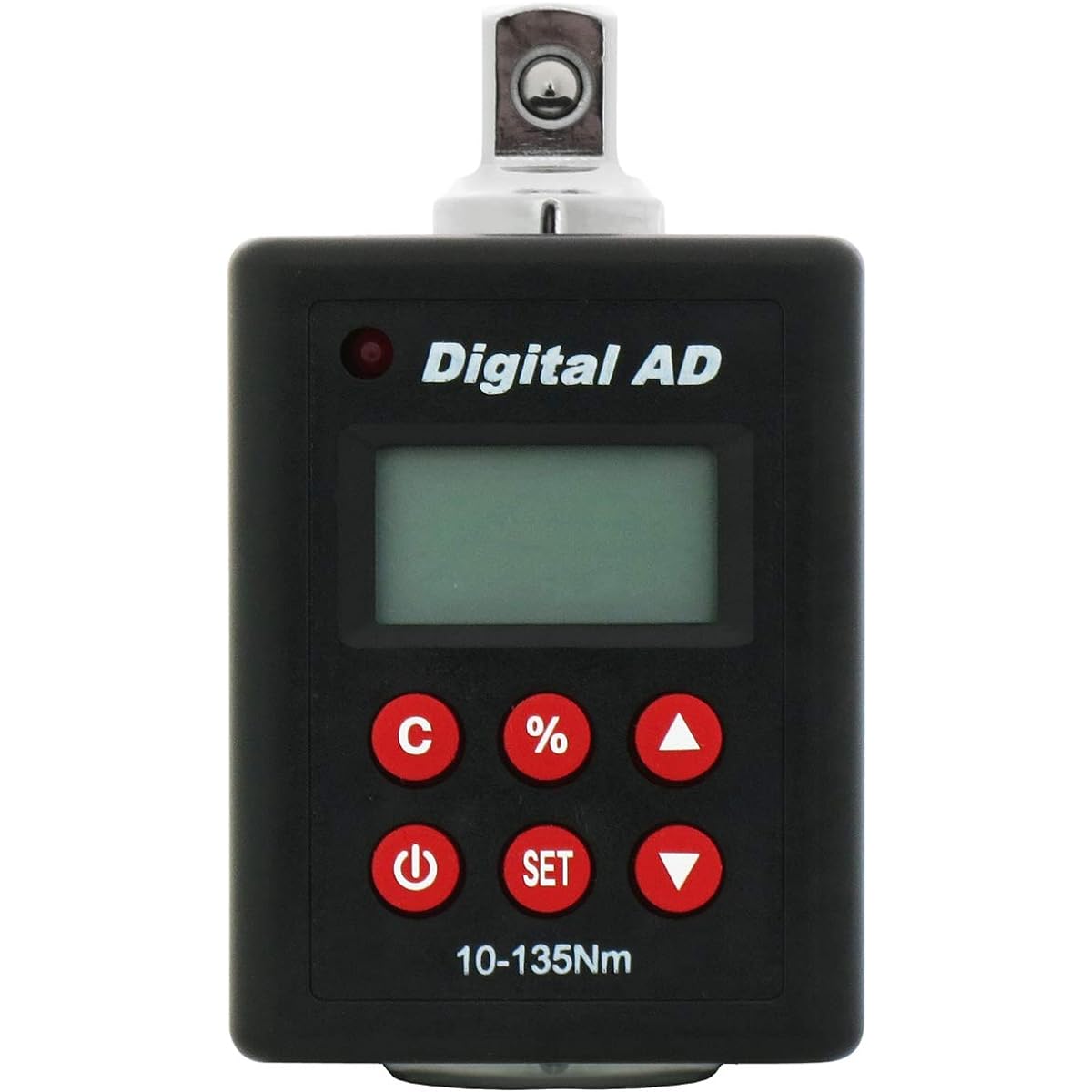

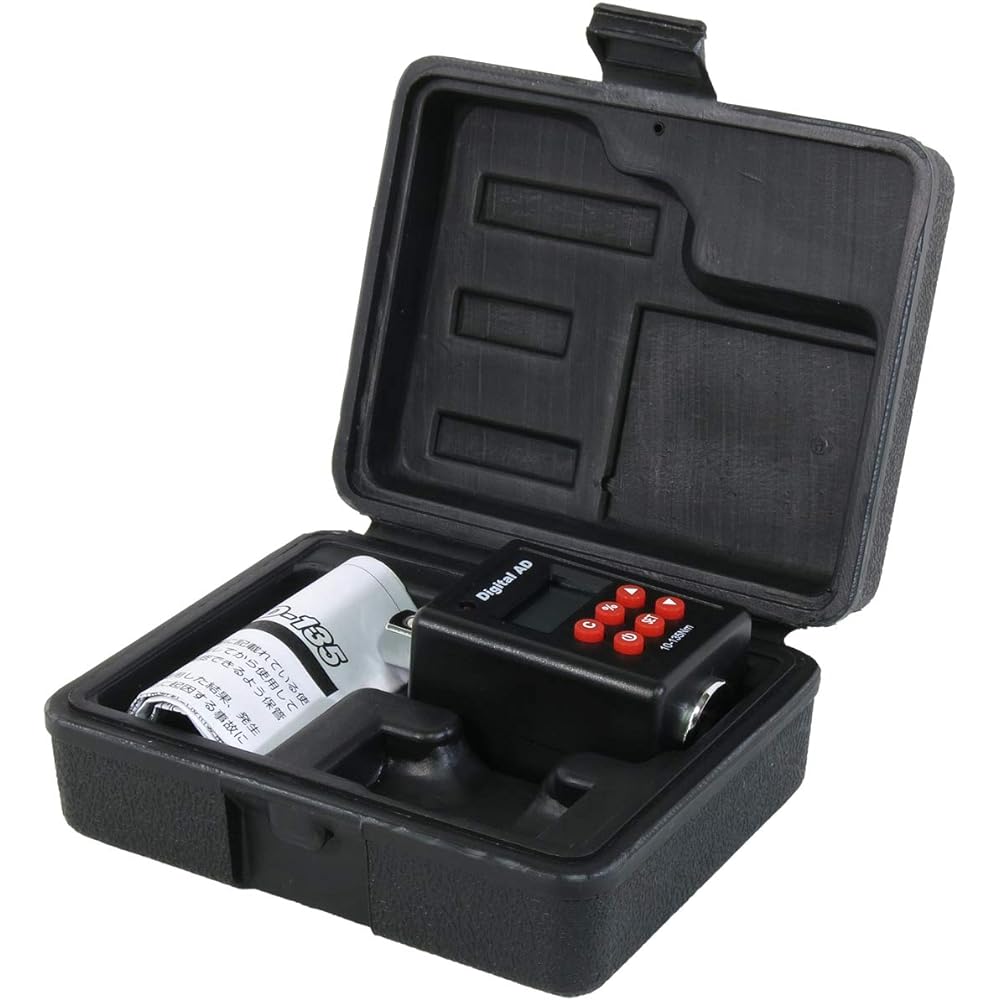

By attaching it to your existing ratchet handle, you can manage the tightening torque. *For manual handle. It cannot be used with power-driven tools such as electric or air. Digital display allows you to see the tightening torque at a glance. When the set torque is reached, you will be notified by light and sound. Advance notification function to prevent overtorque. Two types of measurement modes: (1) Peak fixed mode and (2) Track mode. Compatible with clockwise and counterclockwise rotation. Can also be used to tighten reverse screws. Comes with automatic power off function and battery remaining notification function. Comes with calibration certificate. *Tested by manufacturer (Taiwan) Comes with storage resin case. Torque measurement range: 10~135n・m Minimum number of display digits: 0.1n・m Torque accuracy: Clockwise ±2%+1LSD / Counterclockwise ±3%+1LSD Torque accuracy guaranteed range: 27~135n・m (calibration certificate (With writing) Plug angle 9.5mm square (3/8" dr.) Body dimensions: Total length 75x Width 44x Depth 43mm, Weight 186g *Depth excludes buttons. Operating temperature range: 5~42℃ Storage temperature range: - 20~50℃ Batteries used: 2 x AAA alkaline batteries (batteries are not included with this product.)

You can manage the tightening torque by attaching it to your ratchet handle, etc. *For manual handle. Cannot be used with power-driven tools such as electric or air.


Brand: KONYO
Product model number: AD-135
Product size: 7.5 x 4.4 x 4.3 cm; 186 g
Power source: Battery Drive
Torque: 135 Newton Meters
Accessories: None
Product weight: 186 g
