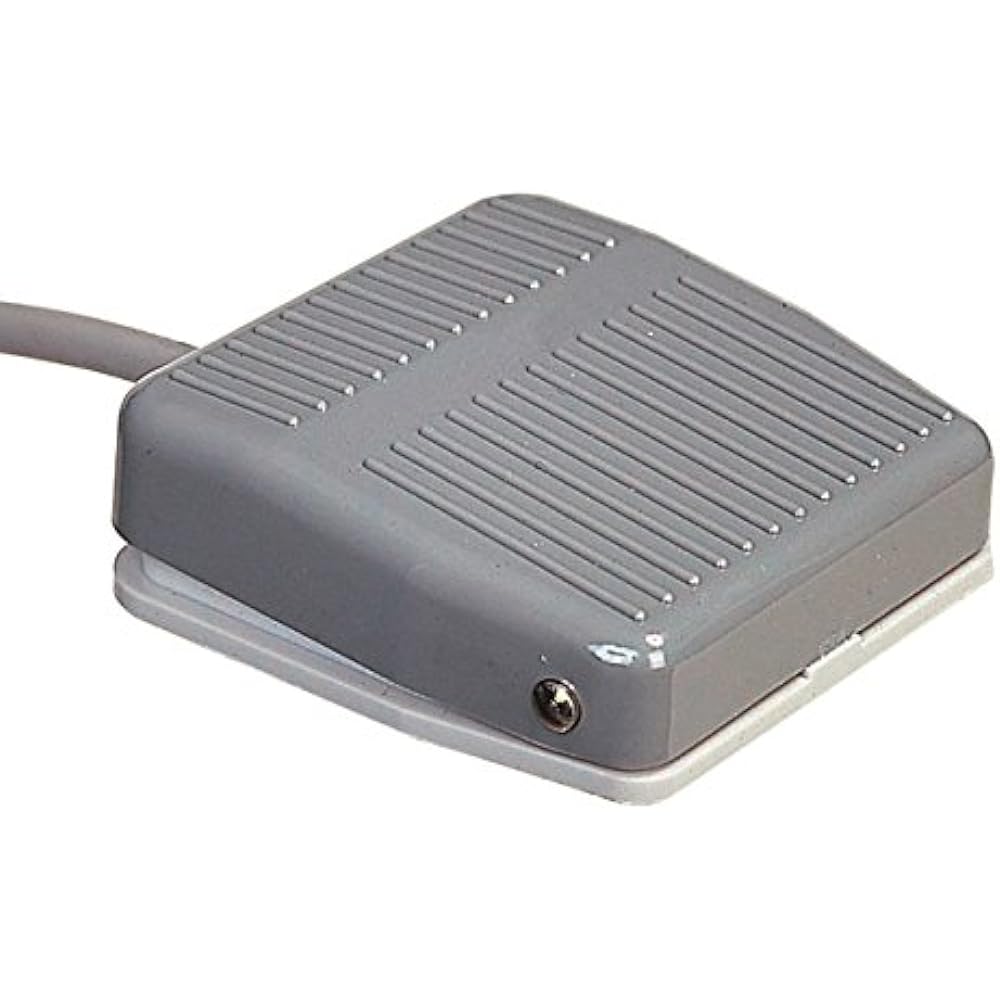

Kokusai Dengyo foot switch SFK-1H
Kokusai Dengyo foot switch SFK-1H
Regular price
$44.00 USD
Regular price
Sale price
$44.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Rating: AC250V3A
Contact configuration: 1a
Operation: Alternate
Cabtire cord: VCTF 2 cores x 0.75mm2 x 1m
Operating force: 9.8N
Protection structure: IP30
br>Insulation resistance: DC500V 100MΩ or more
Withstand voltage: AC1500V/min
Ambient operating temperature: -5~40℃
Ambient operating humidity: 85%RH or less
This is an alternate type foot switch that combines our original alternate mechanism and S type micro switch. The main body and cover are made of ABS resin and polycarbonate resin, respectively, and have a two-tone color of black (main body) and gray (cover).
Manufacturer: Kokusai Dengyo
Part number: SFK-1H
Product weight: 300 g
Package size: 12.2 x 10.8 x 7.2 cm; 300 g
Uses batteries: No
Contact configuration: 1a
Operation: Alternate
Cabtire cord: VCTF 2 cores x 0.75mm2 x 1m
Operating force: 9.8N
Protection structure: IP30
br>Insulation resistance: DC500V 100MΩ or more
Withstand voltage: AC1500V/min
Ambient operating temperature: -5~40℃
Ambient operating humidity: 85%RH or less
This is an alternate type foot switch that combines our original alternate mechanism and S type micro switch. The main body and cover are made of ABS resin and polycarbonate resin, respectively, and have a two-tone color of black (main body) and gray (cover).
Manufacturer: Kokusai Dengyo
Part number: SFK-1H
Product weight: 300 g
Package size: 12.2 x 10.8 x 7.2 cm; 300 g
Uses batteries: No
