Auto Parts Tokyo

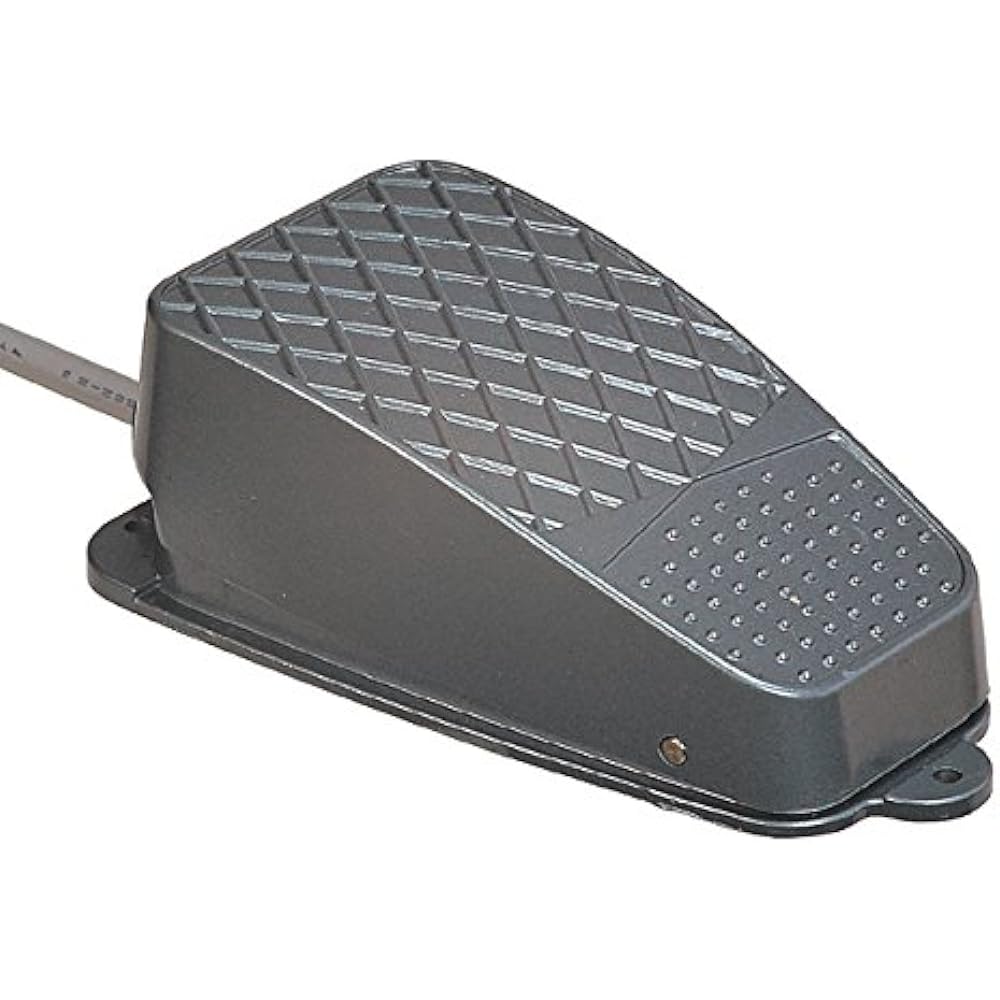

Kokusai Dengyo foot switch SF-1
Kokusai Dengyo foot switch SF-1
Regular price
$51.00 USD
Regular price
Sale price
$51.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Rating: AC250V10A
Contact configuration: 1c
Operation: Momentary
Cab tire cord: VCTF 3 cores x 1.25mm2 x 1m
Operating force: 34.3N
Protection structure: IP30
br>Insulation resistance: DC500V 100MΩ or more
Withstand voltage: AC1500V/min
Ambient operating temperature: -5~40℃
Ambient operating humidity: 85%RH or less
A long-life, high-precision general-purpose foot switch that uses a built-in Z-type microswitch with a mechanical life of over 10 million times and an electrical life of over 500,000 times (when using a resistive load).
Manufacturer: Kokusai Dengyo
Part number: SF-1
Product weight: 580 g
Package size: 19.2 x 9.6 x 9.2 cm; 580 g
Uses batteries: No
Contact configuration: 1c
Operation: Momentary
Cab tire cord: VCTF 3 cores x 1.25mm2 x 1m
Operating force: 34.3N
Protection structure: IP30
br>Insulation resistance: DC500V 100MΩ or more
Withstand voltage: AC1500V/min
Ambient operating temperature: -5~40℃
Ambient operating humidity: 85%RH or less
A long-life, high-precision general-purpose foot switch that uses a built-in Z-type microswitch with a mechanical life of over 10 million times and an electrical life of over 500,000 times (when using a resistive load).
Manufacturer: Kokusai Dengyo
Part number: SF-1
Product weight: 580 g
Package size: 19.2 x 9.6 x 9.2 cm; 580 g
Uses batteries: No
