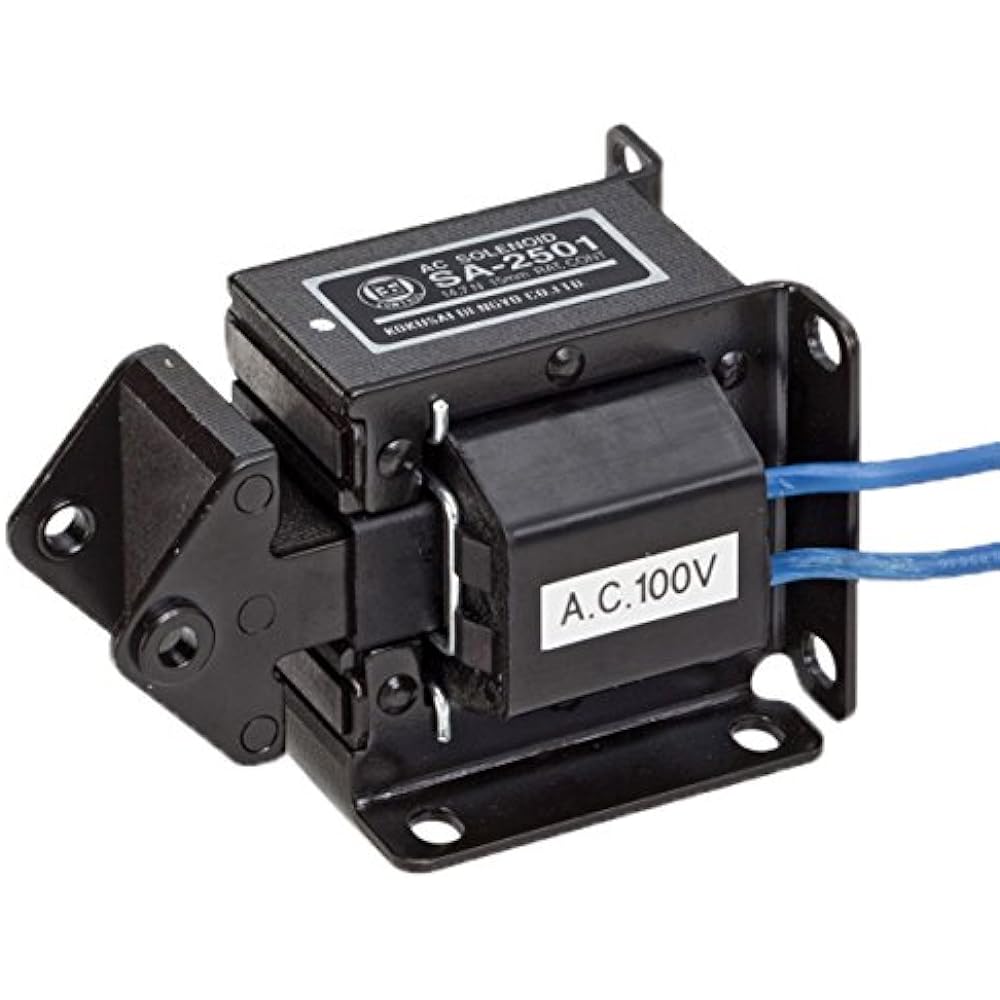

Kokusai Dengyo AC Solenoid SA-2501 100V Tension type Suction force 14.7N Stroke 15mm

Rated frequency: 50/60Hz shared (2 leads)
Durability: 500,000 times (according to JIS C4554 durability test)
Insulation type: Equivalent to class B insulation
Insulation resistance: DC500V 100MΩ or more
br>Withstand voltage: AC2000V for 1 minute
Coil temperature rise: 85℃ or less
Movable core mass: (SA-2501) 120g
Total mass: (SA-2501) 420g

of Current running time: Continuous rating / Movable core: Cold rolled silicon steel plate / Fixed/movable side plates: Cold rolled steel plate / Plunger guide: Nylon resin integrated with coil bobbin / Coil insulation: Resin casting / Coil: Polyester copper wire / Lead wire: Heat-resistant vinyl wire (UL-1015)/Surface treatment: Black baked paint/Lead wire color: 100V-blue/200V-red/Stop rubber: NBR (black)


Manufacturer: ‎ Kokusai Dengyo
Part number: ‎SA-2501 100V
Item weight: ‎1 Kilograms
Package size: ‎15 x 15 x 15 cm; 1 kg
Battery usage: ‎No
