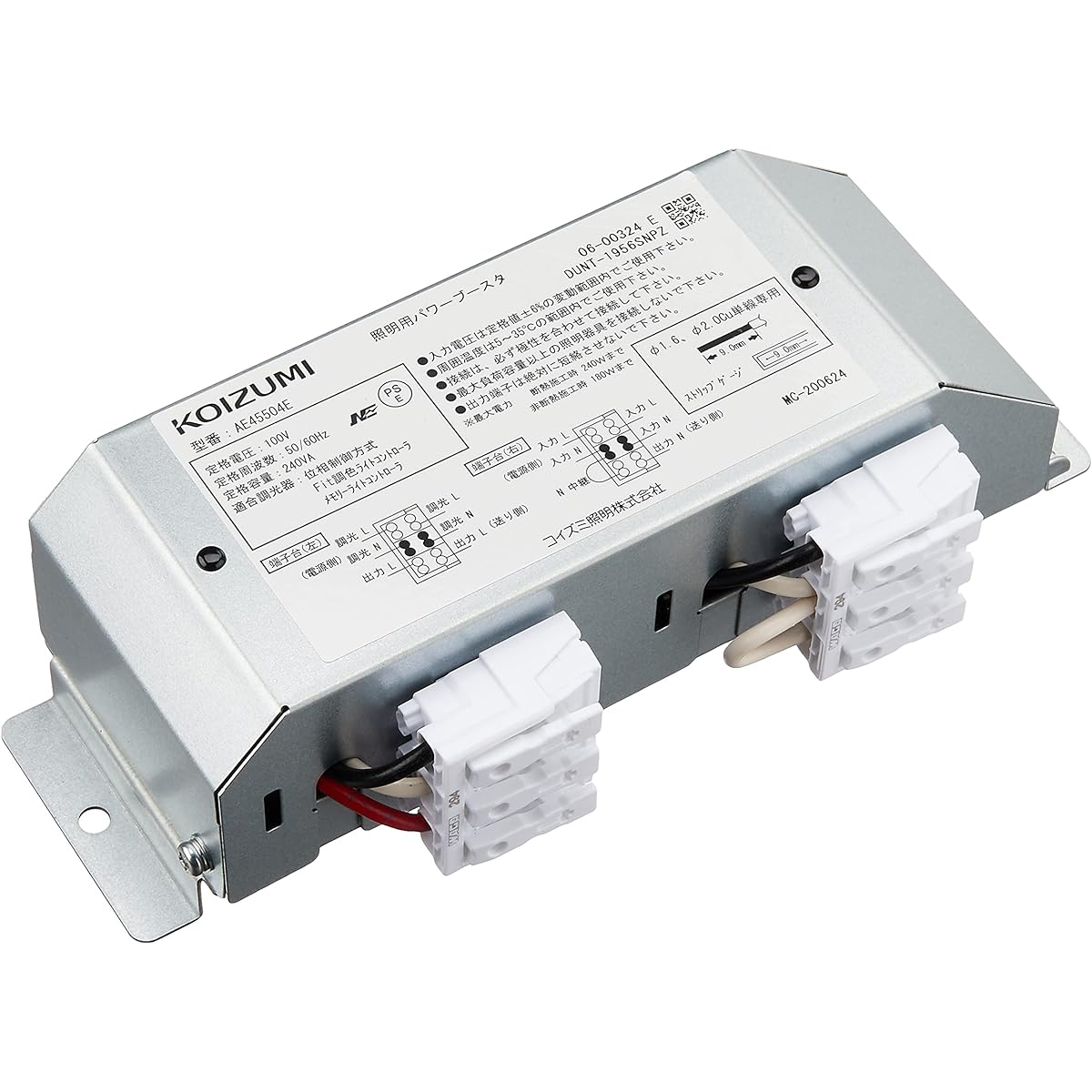

Koizumi Lighting Separate Power Booster Fit Color Adjustment/LED Compatible Dimmer (Phase Control Type) Compatible AE45504E
Koizumi Lighting Separate Power Booster Fit Color Adjustment/LED Compatible Dimmer (Phase Control Type) Compatible AE45504E
Regular price
$129.00 USD
Regular price
Sale price
$129.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

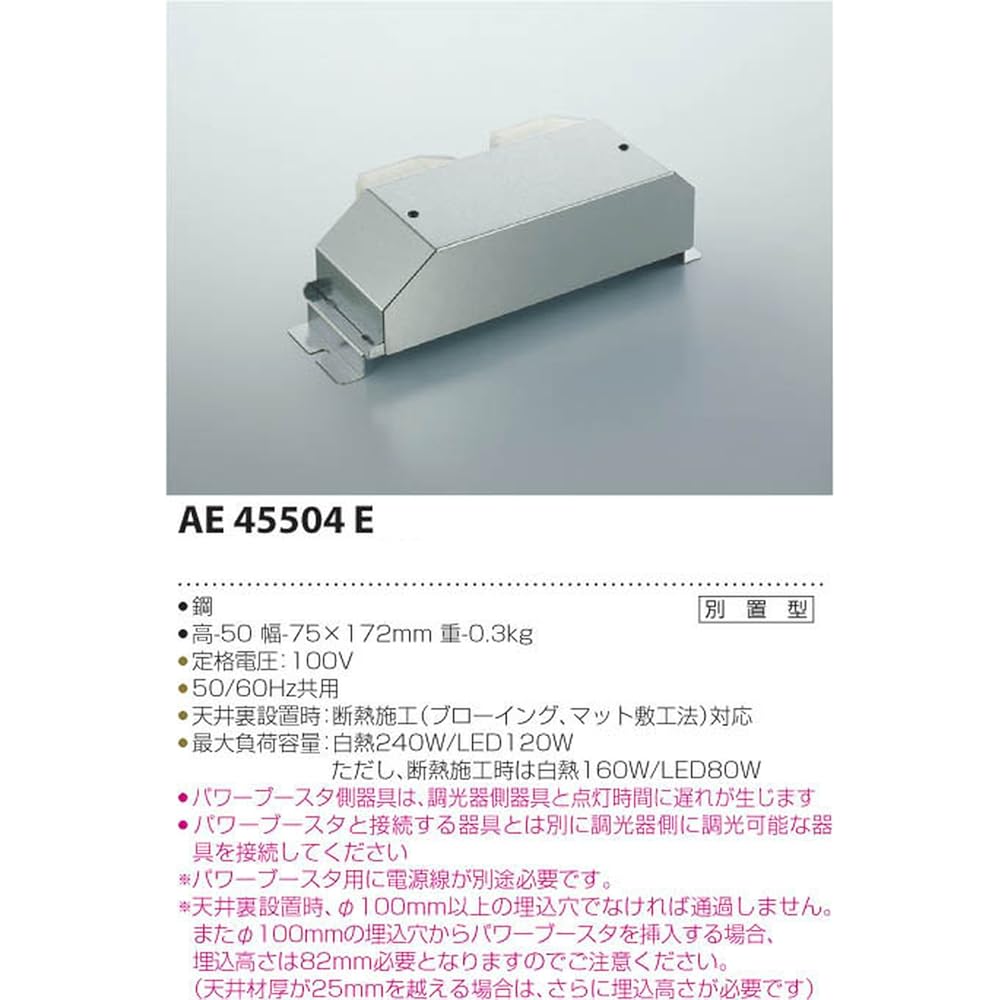

●Steel
●Height-50 Width-75×172mm Weight-0.3kg
●Rated voltage: 100V
●50/60Hz common
●When installed in the ceiling: Insulation construction (blowing , mat laying method) compatible
●Maximum load capacity: Incandescent 240W/LED120W However, when insulation is installed, incandescent 160W/LED80W
●The lighting time of the power booster side equipment may be delayed compared to the dimmer side equipment. Masu
●Steel ●Height - 50 Width - 75 x 172mm Weight - 0.3kg ●Rated voltage: 100V ●Common to 50/60Hz ●When installed in the ceiling: Compatible with insulation construction (blowing, mat laying method) ●Maximum load capacity: Incandescent 240W/LED 120W However, when installing insulation, the incandescent 160W/LED 80W ● There will be a delay in lighting time for the power booster side fixture and the dimmer side fixture ● A dimmable fixture on the dimmer side separately from the fixture connected to the power booster Please connect *A separate power line is required for the power booster *When installed in the ceiling, it will not pass through unless it is an embedded hole with a diameter of 100 mm or more. Also, please note that when inserting the power booster through a φ100mm hole, the height of the power booster must be 82mm (if the thickness of the ceiling material exceeds 25mm, an additional height of 82mm is required).
Brand: Koizumi
Product model number: AE45504E
Package size: 22 x 8.6 x 6.5 cm; 400 g
Color: White
Quantity: 1
Accessories: Hub
Product weight: 400 g
●Height-50 Width-75×172mm Weight-0.3kg
●Rated voltage: 100V
●50/60Hz common
●When installed in the ceiling: Insulation construction (blowing , mat laying method) compatible
●Maximum load capacity: Incandescent 240W/LED120W However, when insulation is installed, incandescent 160W/LED80W
●The lighting time of the power booster side equipment may be delayed compared to the dimmer side equipment. Masu
●Steel ●Height - 50 Width - 75 x 172mm Weight - 0.3kg ●Rated voltage: 100V ●Common to 50/60Hz ●When installed in the ceiling: Compatible with insulation construction (blowing, mat laying method) ●Maximum load capacity: Incandescent 240W/LED 120W However, when installing insulation, the incandescent 160W/LED 80W ● There will be a delay in lighting time for the power booster side fixture and the dimmer side fixture ● A dimmable fixture on the dimmer side separately from the fixture connected to the power booster Please connect *A separate power line is required for the power booster *When installed in the ceiling, it will not pass through unless it is an embedded hole with a diameter of 100 mm or more. Also, please note that when inserting the power booster through a φ100mm hole, the height of the power booster must be 82mm (if the thickness of the ceiling material exceeds 25mm, an additional height of 82mm is required).
Brand: Koizumi
Product model number: AE45504E
Package size: 22 x 8.6 x 6.5 cm; 400 g
Color: White
Quantity: 1
Accessories: Hub
Product weight: 400 g
