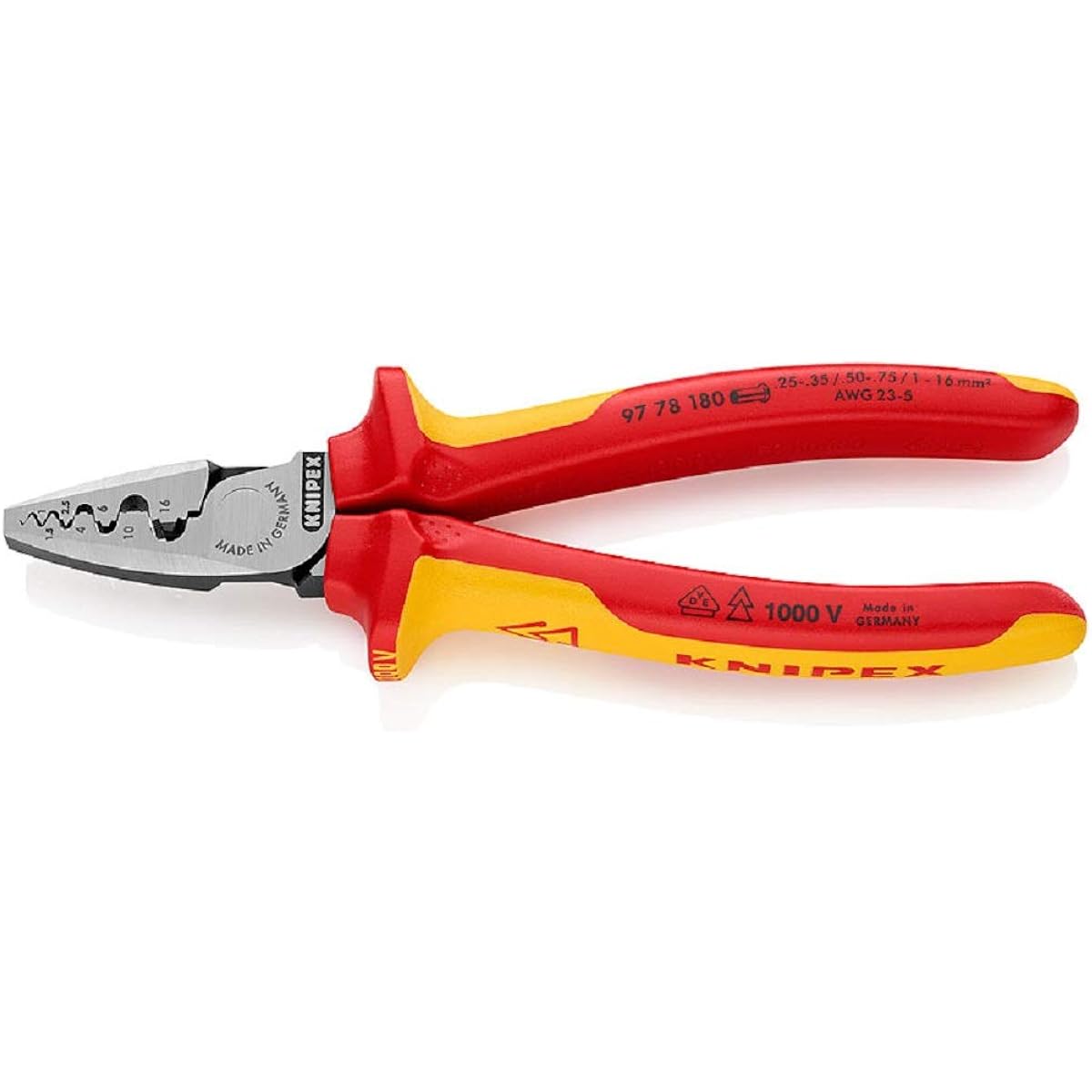

KNIPEX Insulated crimping pliers for end sleeves, total length 180mm 9778-180SB

KNIPEX Insulated crimping pliers for end sleeves, total length 180mm 9778-180SB

Regular price $88.00 USD
Regular price Sale price $88.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Condition: New

Head finish: Polished Handle specifications: 1000V insulation (VDE insulation tested) Crimping capacity (mm2): 0.25-16 Crimping capacity (AWG): 23-5 Number of crimping positions: 9 Overall length (mm): 180 Mass (g) ): 254 Very sturdy due to forging. The material is vanadium electric steel that has been oil quenched and tempered. Conforms to DIN EN/IEC60900 standards.

●The 1000V insulated handle is made of two types of materials and uses two-tone red and yellow colors to differentiate it from non-insulated tools. ●The improved leverage ratio reduces the force applied to the pliers by 30%. ●Lightweight and slim structure. ●Crimps with semicircular die shape with identification mark to securely connect sleeve and conductor. ●Nine dice shape with particularly deep conical sides. ●For end sleeve crimping. ●For crimping end sleeves using DIN46228 1 part + 4 parts (range 0.25 to 16 mm2).


Manufacturer: KNIPEX Brand: KNIPEX Model name: KNIPEX Product size: 24.7 x 8.5 x 3 cm; 260 g Product Model Number: 97 78 180 SB
Product Dimensions Depth x Width x Height: 24.7 x 8.5 x 3 cm
Color: Red
Product Weight: 260 g
