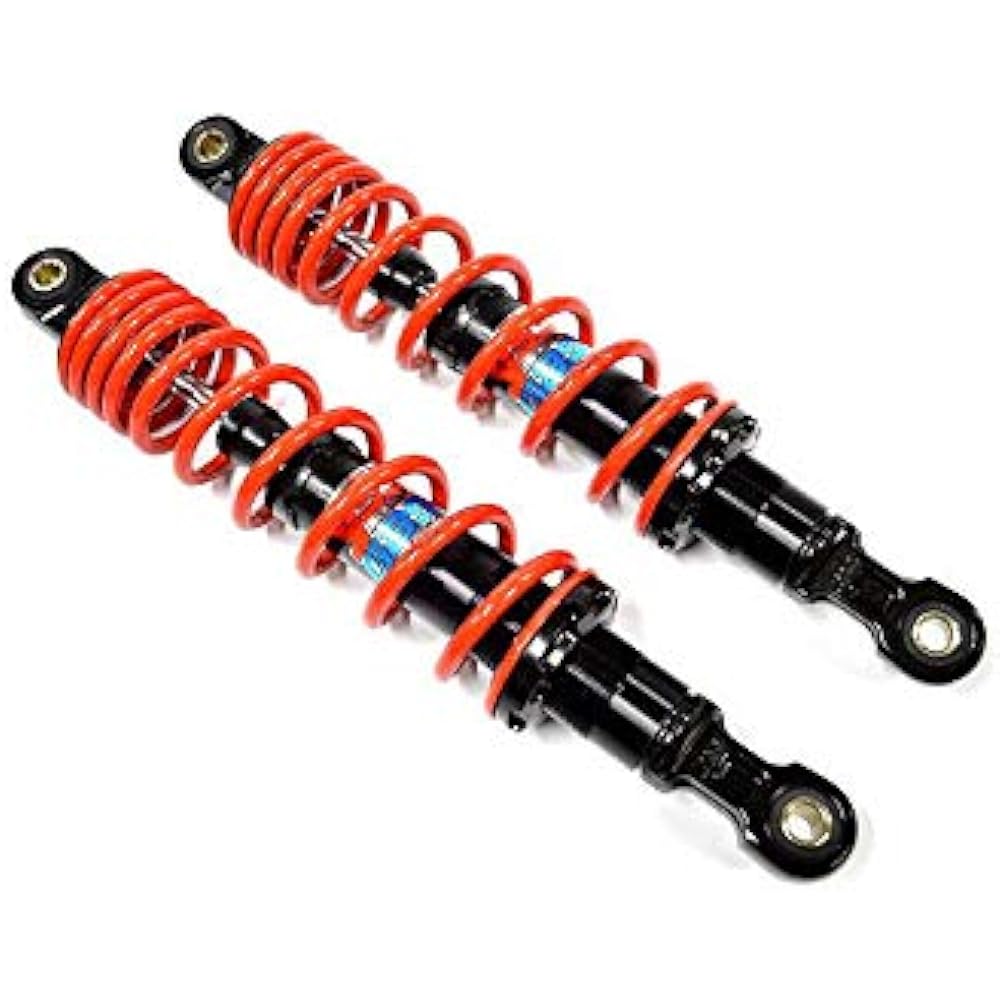

KN Planning YSS YB125 YBR125 CUB100 CUB110 CUB100 CUB110 Rear shock Rear shock Rear suspension Rear suspension

■ YSS Hybrid Suspension Double Tube Gas Shock [DTG] YB125/YBR125/Cub 100/Cub 110 [Features] ■ Twin tube separate structure allows smoother movement of sliding parts than previous models, providing flexibility and stickiness Achieving the characteristics that combine these features! ■Uses a high-rigidity body that combines steel, allowing you to experience a comfortable ride without any lumpy feeling. ■Initial adjustment type in 5 stages ■Since the lower mounting part is offset by approximately 5mm, it is less likely to interfere with the suspension body even if the width of the swing arm, chain case, or tire size is increased. [Size] ■Installation length: 345mm ■Mounting bolt diameter Upper: 12mm ■Mounting rubber bush inner diameter Lower: 14mm [Compatible models] ■YB125 ■YBR125 *Cub 100/Cub 110 Please check the dimensions of the lower mounting part. [Note] *There is no data that can be used for vehicles other than compatible models. *Since the inner diameter of the lower mounting bush is 14mm, the vehicle side must also be 14mm. *Bolt diameter conversion collar is not included.


Manufacturer: ‎KN Kikaku
Brand: ‎KN-KIKAKU
Manufacturer reference: ‎YB125-YSS-RDBK
Discontinued by manufacturer: ‎No
br>Position: ‎Back
